Securitron XMS2 Passive Infrared (PIR) Exit Motion Sensor

Securitron XMS2 Passive Infrared (PIR) Exit Motion Sensor

The XMS2 passive infrared (PIR) exit motion sensor request to exit (REX) device reliably detects motion near a door & releases the lock.

The XMS2 motion sensor has versatile mounting options, and an easily adjustable infrared beam pattern provides optimal coverage of the egress area for smooth, hands-free lock release and exit.

Standard Features of the Securitron XMS2 Passive Infrared (PIR) Exit Motion Sensor:

• Automatically and reliably cuts power to the lock, without individual interaction

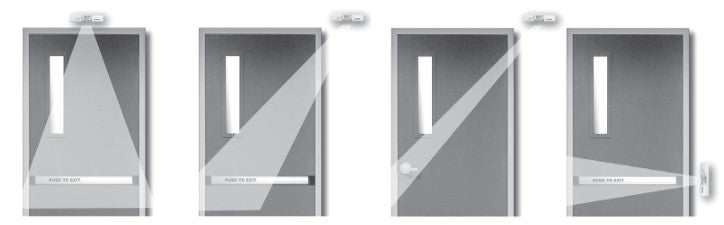

• Easily adjustable beam pattern

• Request to Exit (REX) output
• Passive Infrared (PIR) Request to Exit (REX) device
• Adjustable time relock
• Suitable for openings up to 12 ft in height
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty



Specifications of the Securitron DPA:

• Switch : SPDT - Single Pole Double Throw

• Max Current 12v DC (mA) : 70
• Max Current 24v DC (mA) : 70

• Weather Resistance : Indoor use only

• Operating Temperature: 32˚ to 120˚ F [0˚ to 49˚ C]

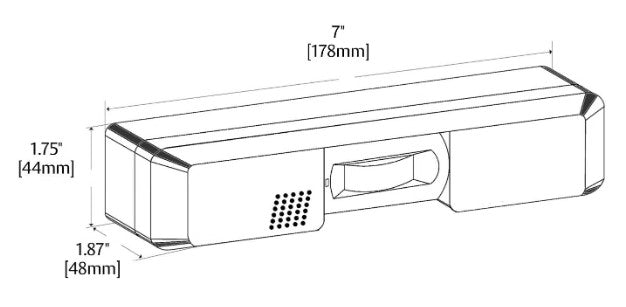

• Height (in) : 1-3/4"
• Width (in) : 7-1/8"
