Alarm Controls 1200S Single Door Magnetic Lock, 12 or 24 VDC, US28/628 - Satin Aluminum Finish
Alarm Controls 1200S Single Door Magnetic Lock, 12 or 24 VDC, US28/628 - Satin Aluminum Finish
SKU: SKU:AC-1200S-US28
Availability : Usually Ships in 2-3 Business Days
Regular price
$210.00
Regular price
Sale price
$210.00
Unit price
per
Shipping calculated at checkout.
Finish: US28/628 - Satin Aluminum Clear Anodized
Monitoring Options: NA
LED Indicates: NA
Couldn't load pickup availability
Alarm Controls 1200S Single Door Magnetic Lock, 12 or 24 VDC, US28/628 - Satin Aluminum Finish Information

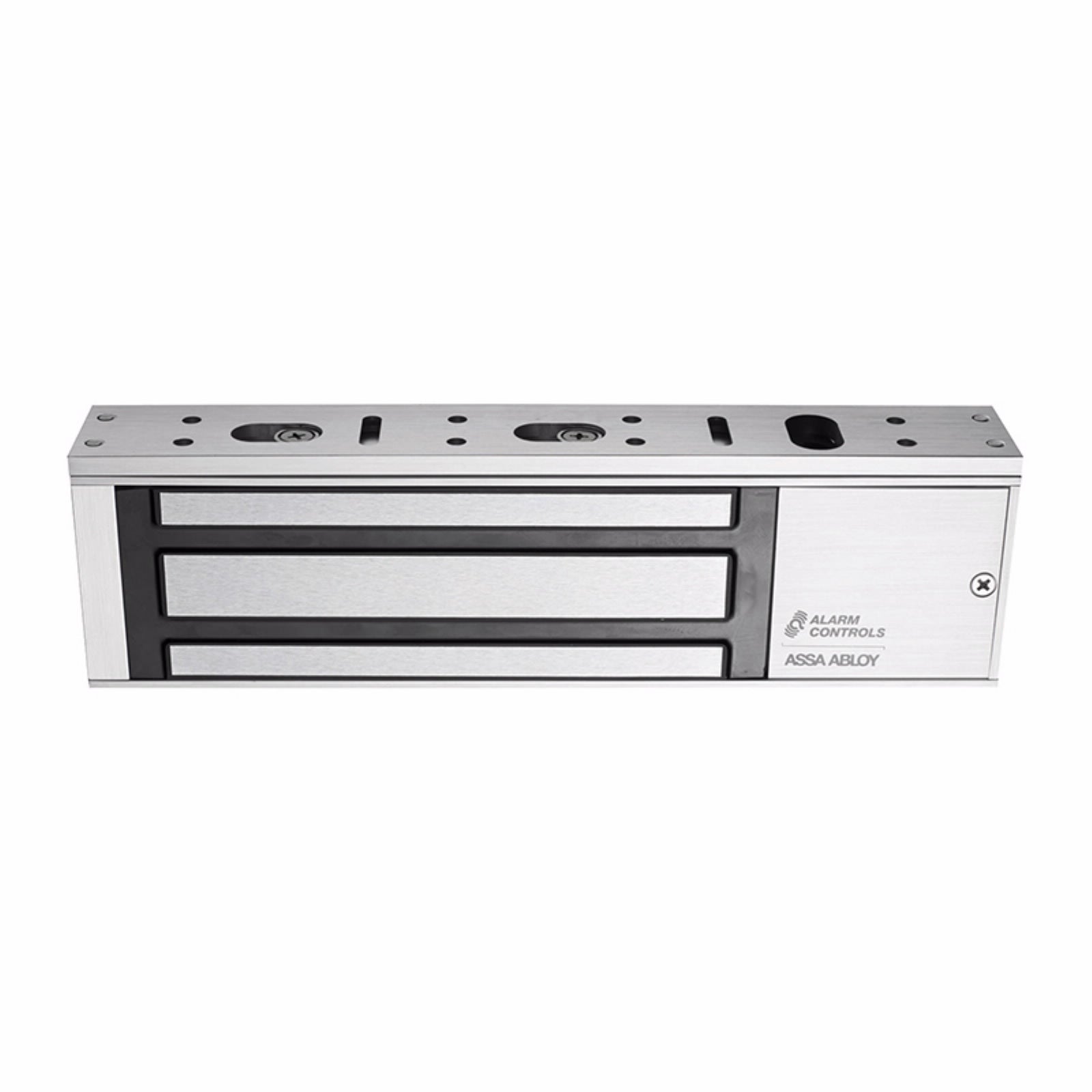

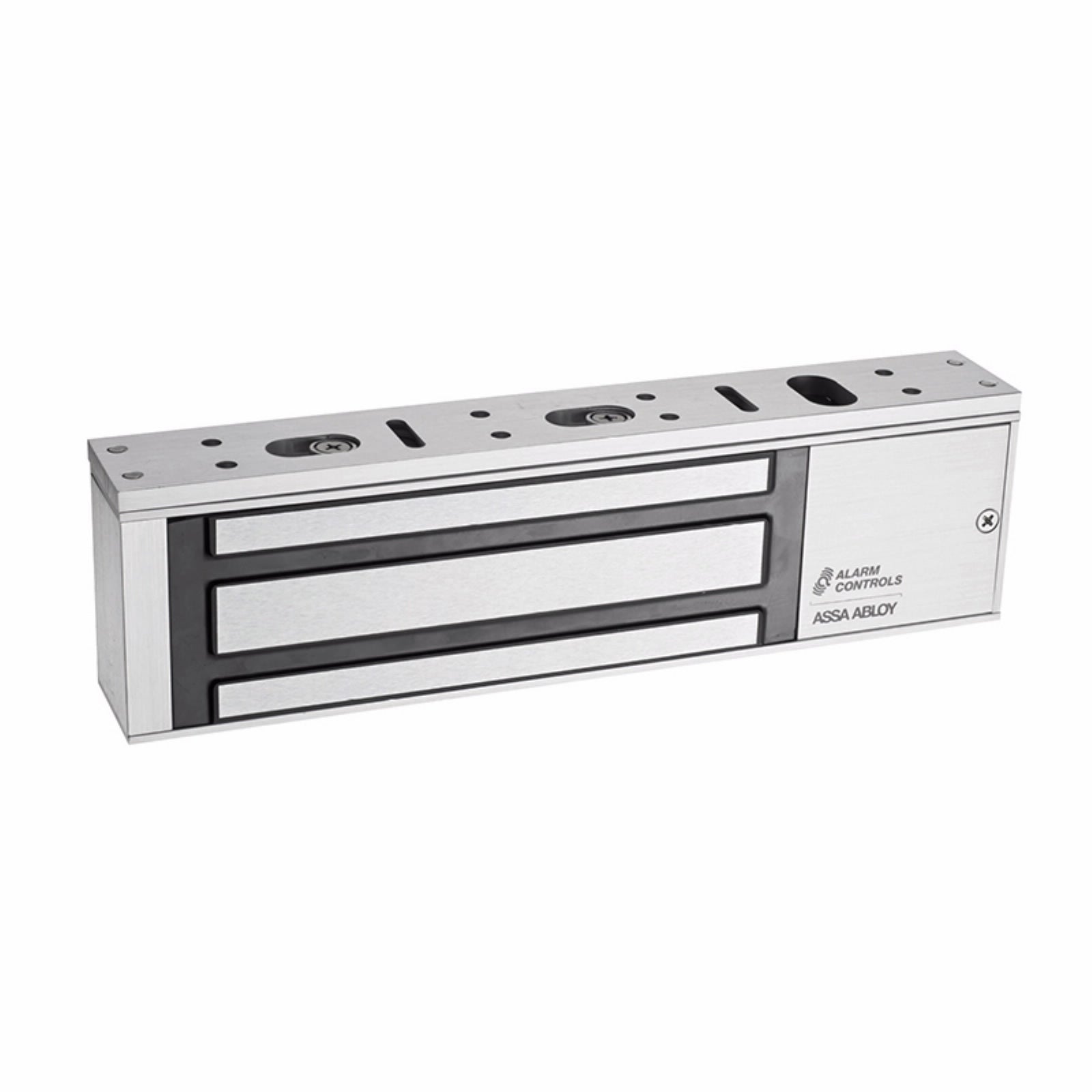

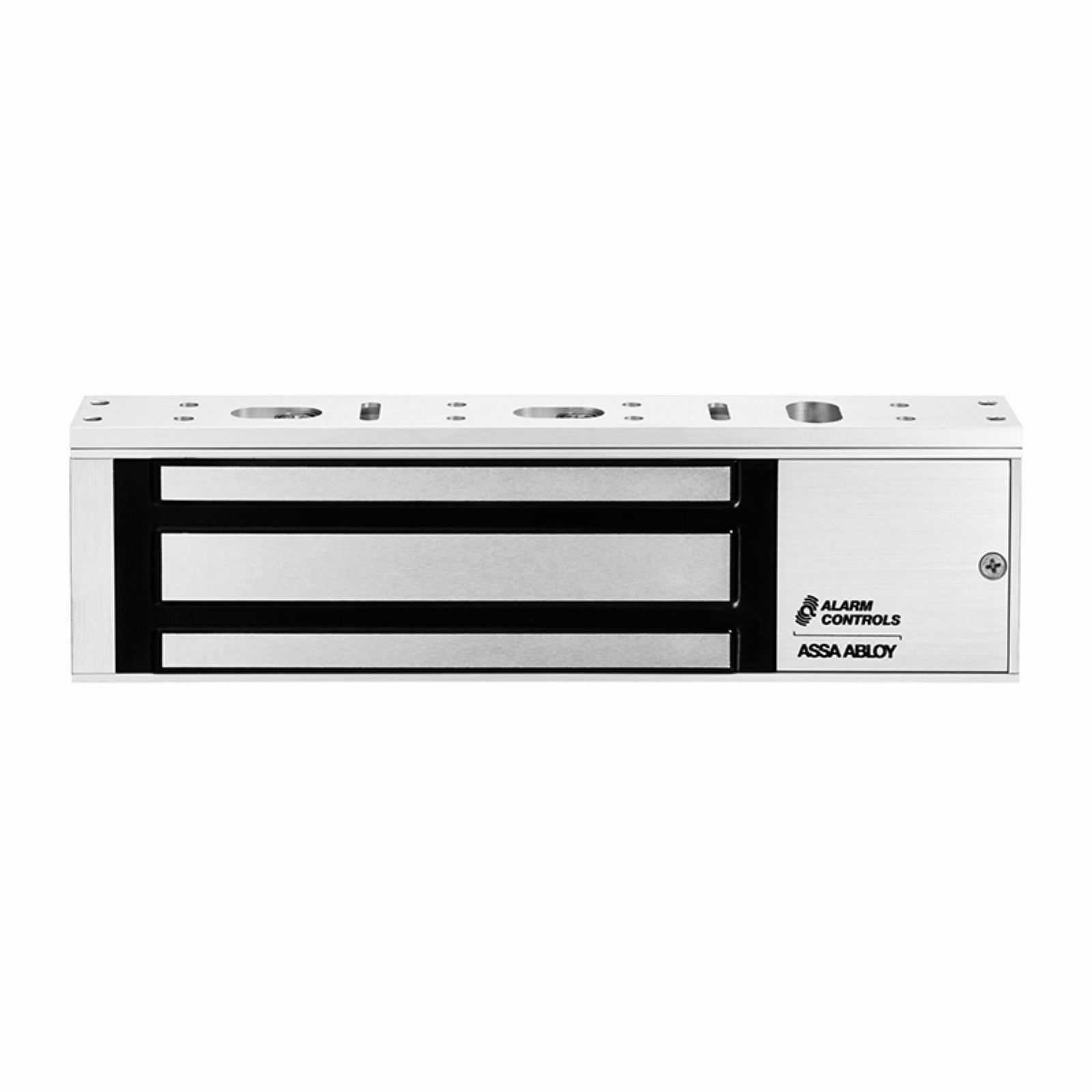

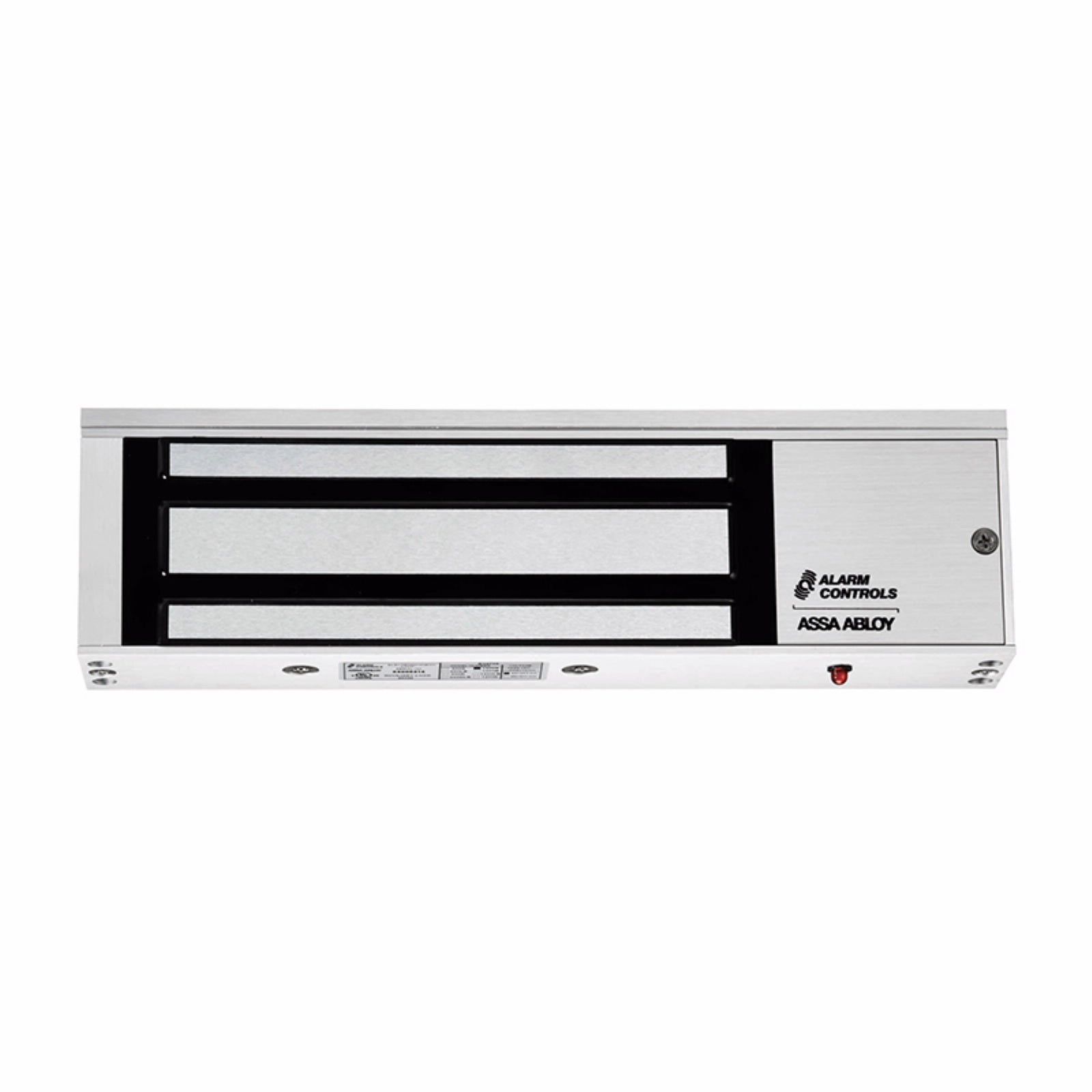

Alarm Controls 1200S Magnetic Lock
Bracket mounted, single magnetic lock with 1200 lbs holding force that can be easily installed without special tools and used with any access control system. Ideal for high-use areas for traffic control in interior applications.
Electrical: 12 or 24VDC.
This item is special order and it cannot be canceled, returned or exchanged
Details and product specs of the Alarm Controls 1200S Magnetic Lock:
| Warranty: | Factory Limited Lifetime Limited Warranty |
| Features: |
• Instant release, no hysteresis • Can be used with any access control system • Self drilling TEC screws • Built-in arc suppression • E-Z mount system, no special tools required • Non-aluminum parts are plated to resist corrosion • Limited lifetime warranty |
| Specifications: | • 1200 lbs holding force • Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W • Armature size: 7-3/8" L x 2-3/8" H x 9/16" W • Operates on 12 or 24 VDC, selectable • Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC • Operating temperature: +14 to +131F [-10 to +55C] |
| Finish: | US28/628 - Satin Aluminum |
| Certifications & Listings: | • UL 10C fire rated • CAN4-S104 (ULC-S104) fire door conformant • ULC-S527 listed • UL 864 listed |
| Fire Rating: | Yes |
| Mfg Model #: | 1200S |
| MDI Supply Item #: | AC-1200S-US28 |
| Packaged & Sold: | Individually |
Alarm Controls 1200S Magnetic Lock
1200 pound Single Door Maglock that can be easily mounted without special tools, and used with any access control system. 12 or 24VDC.
Details and product specs of the Alarm Controls 1200S Magnetic Lock:
| Catalog: | Catalog Section - 1200S Magnetic Lock |
| Instructions: | |
 |
