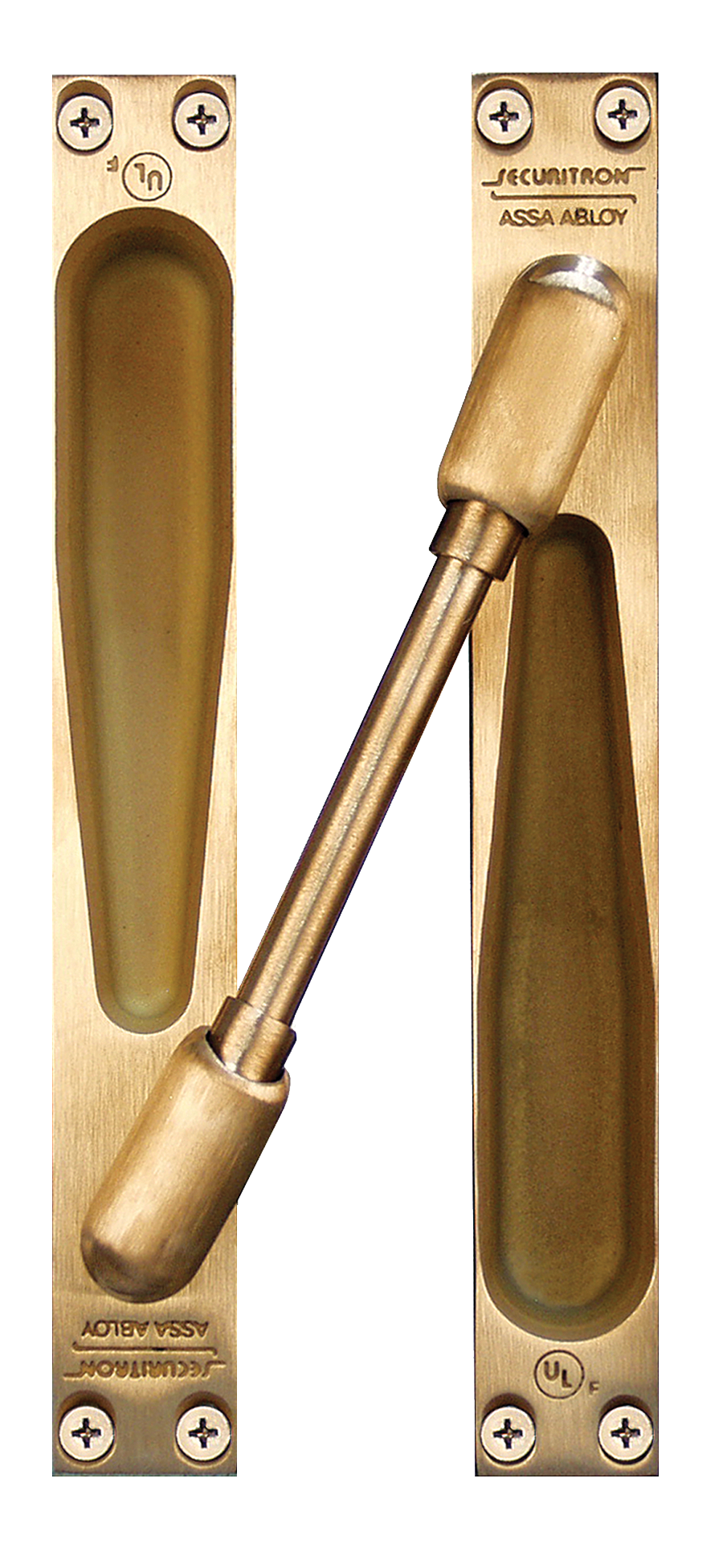

The Securitron heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT) securely transfers power and data from the hinge side of the frame to electrified hardware on the door. The unit is discreetly concealed between the frame and door when the door is closed. Available from MDI in two multi-wire configurations and five finishes, the CEPT complements any architectural setting.
Product Features of the Securitron CEPT Electrical Power Transfer:
- Mortises into the edges of the door and frame
- Direct retrofit for competitor products
- Tamper resistant
- All metal construction including back boxes
- 7/8" [22.25mm] knockouts on back boxes accommodate EMF type fittings
- Tested to 1 million cycles
- Compatible with butt hinges up to 6"[152.4mm] and continuous hinges without cutout
- Factory MagnaCare® lifetime replacement, no-fault, no questions asked warranty

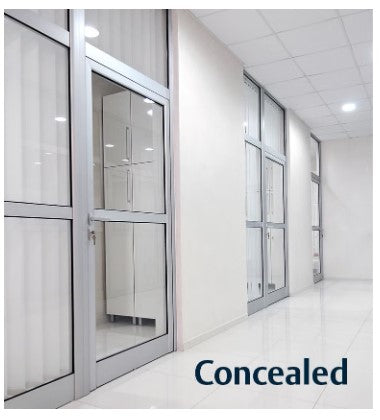

- Concealed wiring pathway when mortised into door and frame above second hinge
- Direct replacement for competitive product with the same prep
- Tested for Durability
- All stainless steel construction - no plastic parts
-
Tamper resistant with no exposed openings to allow foreign objects to reach wires or jam the device
- Available with two types of wiring options - see below
-
Available in five finishes - see below
Specs & Certifications:
- ANSI/SDI-BHMA A250.13 (+/- 150 psi) Windstorm Listed and Florida Building Code Approved
- ANSI/UL 10C Listed, 3 hour rated and ULC-S318 Listed, 3 hour rated
- Tested to 1,000,000 cycles

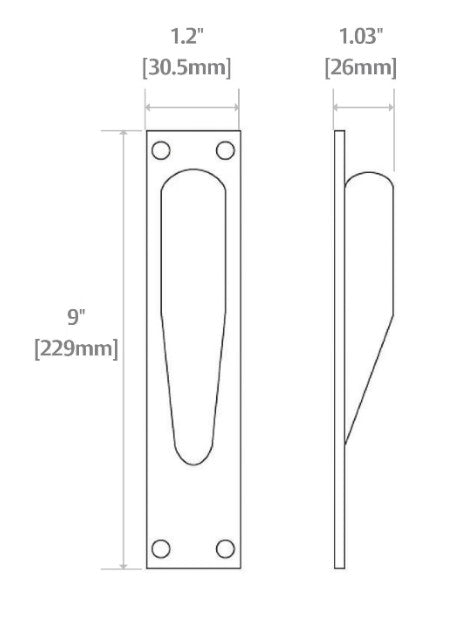

Dimensions:
• CEPT Housing:
9-1/16"L x 1-3/16"W x 1-7/16"D
[230.2mm L x 30.12mm W x 36.52mm D]
Options:
-

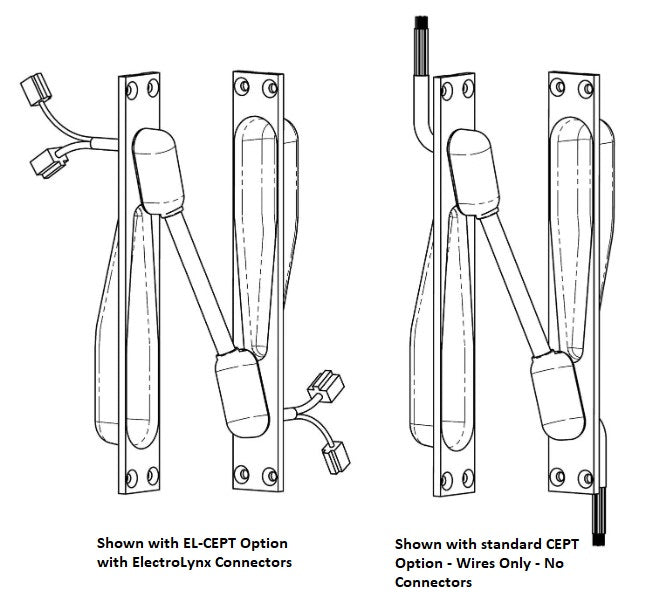

Wired Options (Please note that some online retailers do not offer wired options with the Concealed Electrcial Power Transfer item. MDI Supply offers two options and both are wired for your convenience)
- CEPT-10: includes 8–22 AWG wires plus 2–18 AWG wires for higher current devices; no connectors with this option. The CEPT is hardwired.
-
EL-CEPT is ElectroLynx®compatible with 12-22 AWG wires, ElectroLynx connectors included with this option. The CEPT includes the ElectroLynx® Plug and Play Wired Connectors for quick and easy use.
-

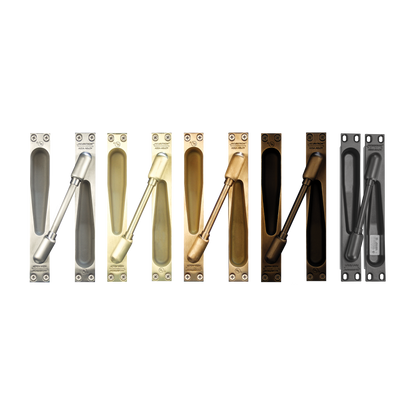

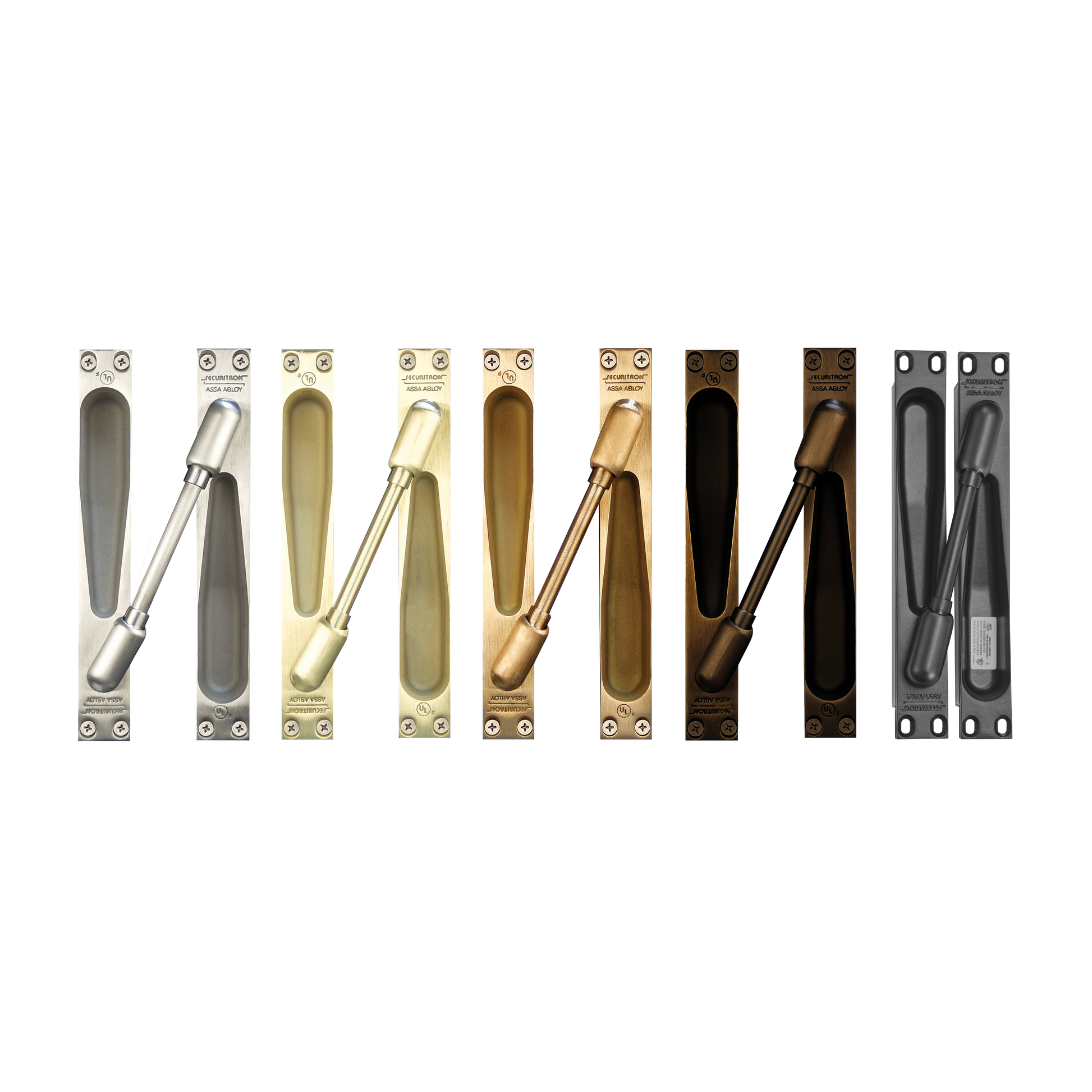

Finish Options:

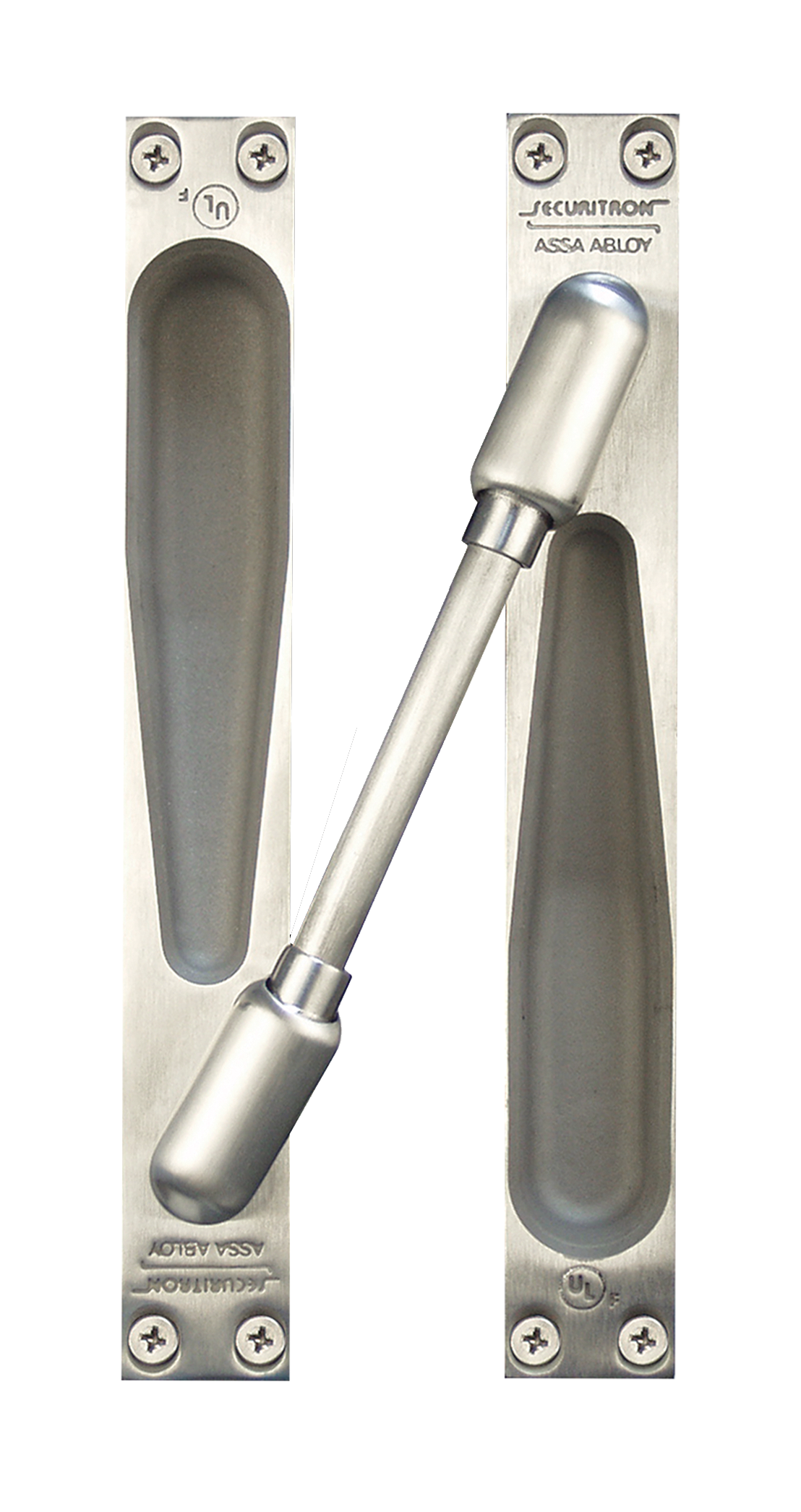

- 630-Satin Stainless Steel

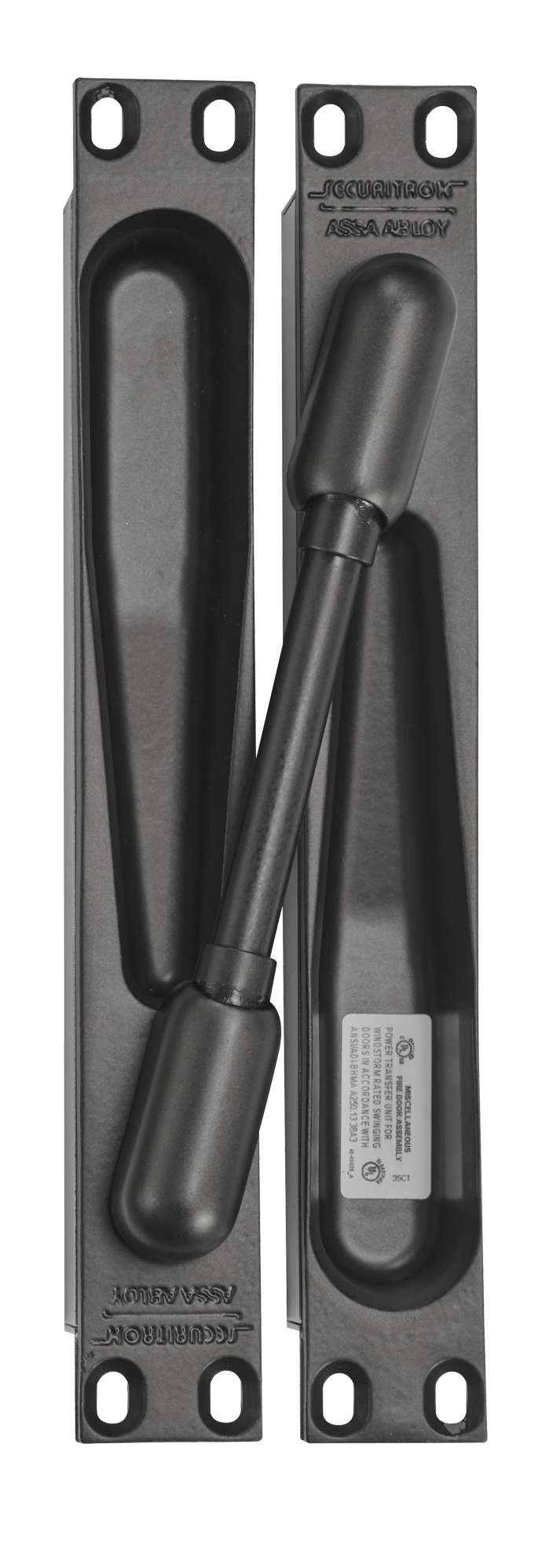

- BSP-Black Suede Powder Coat

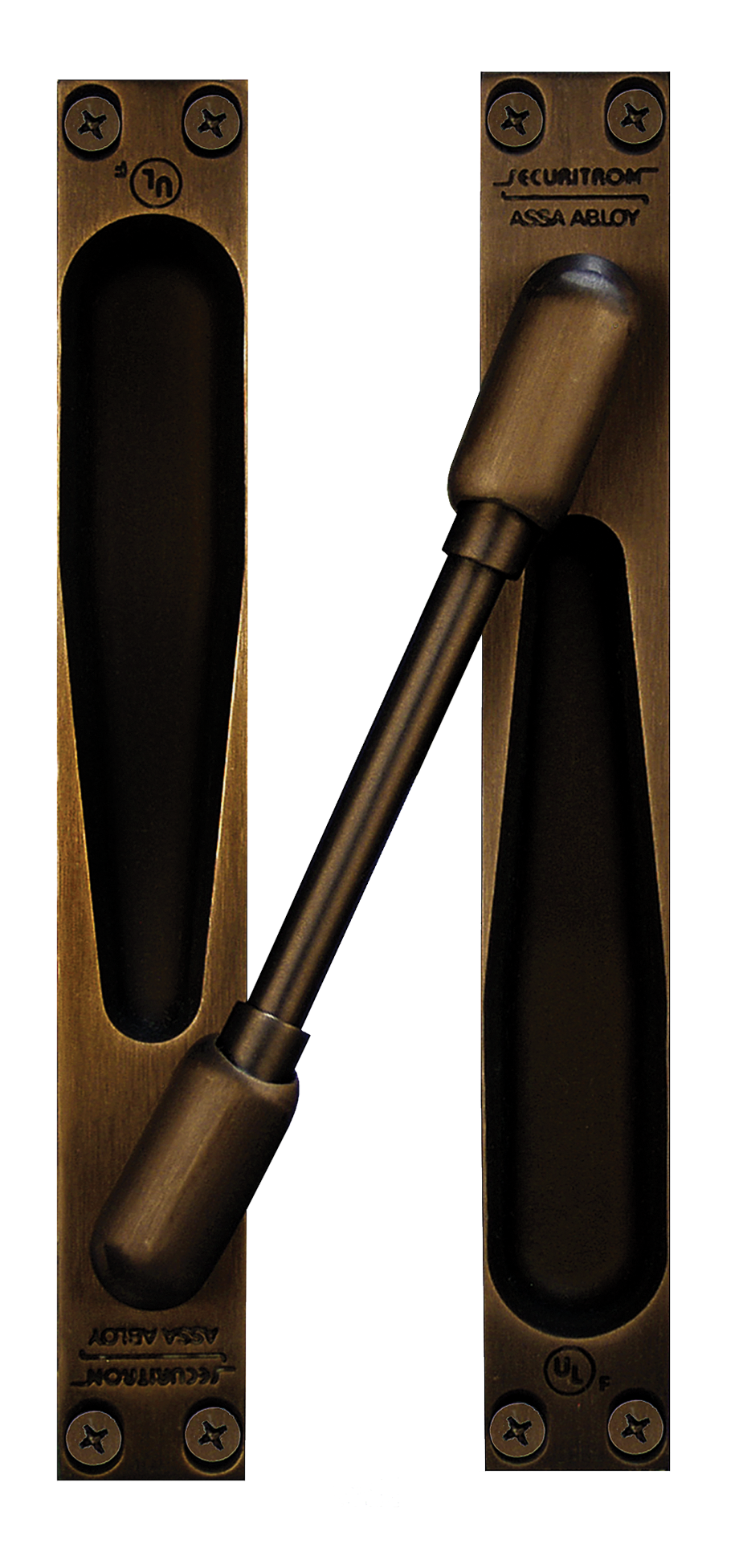

- 613E-Dark Oxidized Satin Bronze Equivalent

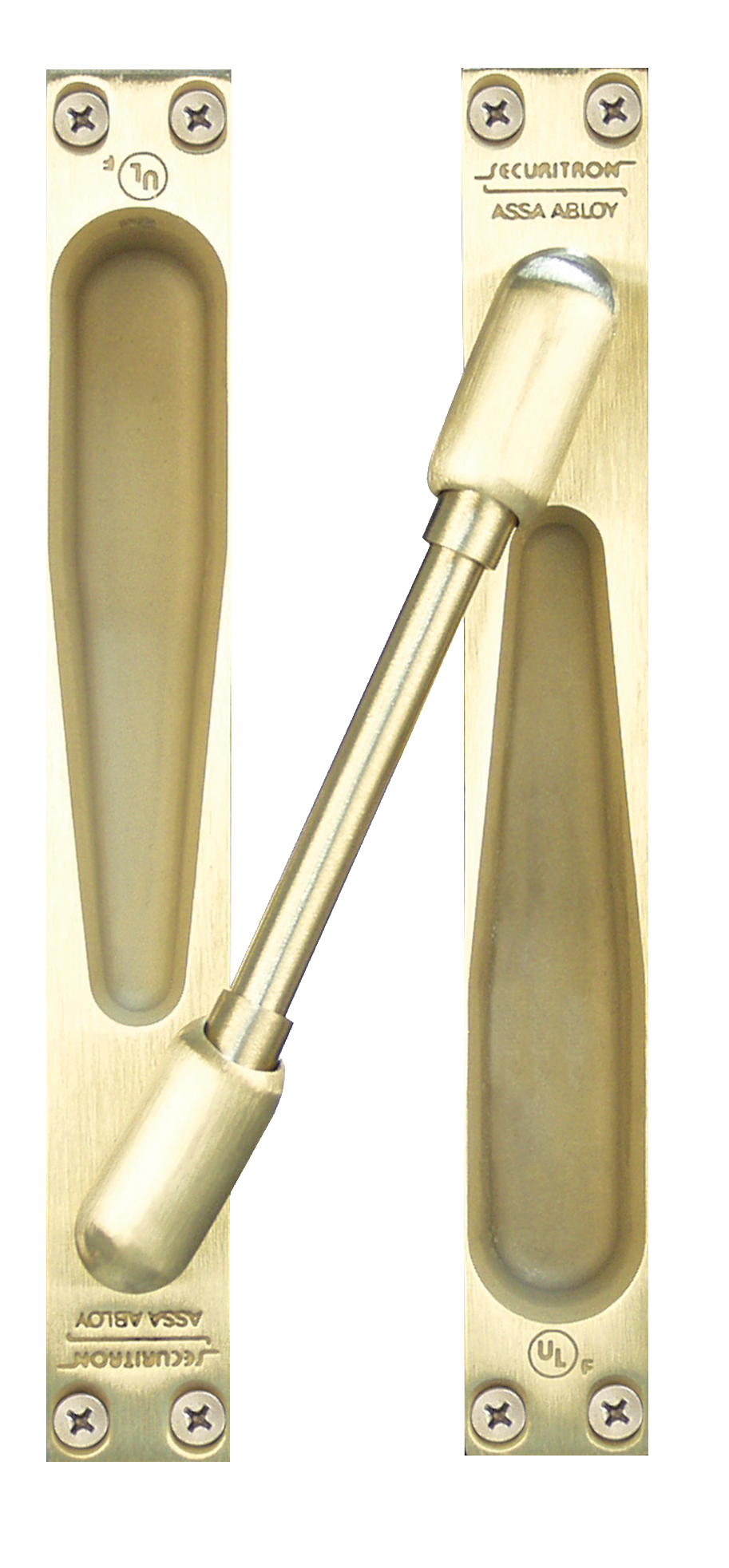

- 606-Satin Brass, Clear coated
- 612-Satin bronze, Clear coated
