Rockwood 305 Door Edge Protection, Non-Mortised, No Hardware Preps, Standard Fastener Preps, Non-Handed, UL Listed, US32D-Satin Stainless Steel Finish

Rockwood 305 Door Edge Protection, Non-Mortised, No Hardware Preps, Standard Fastener Preps, Non-Handed, UL Listed, US32D-Satin Stainless Steel Finish

Rockwood Manufacturing

SKU: RKWD-305-UL-US32D-42

Availability : Usually Ships in 1-2 Weeks After Order

$125.40
$125.40
Sale Sold out
Shipping calculated at checkout.

Product Options:
BUYER NOTE: This item is special order and it cannot be canceled, returned or exchanged.

Click here to download the Rockwood 305 Series Door Edge Guard Cut Sheet

View full details

Rockwood 305 Door Edge Protection, Non-Mortised, No Hardware Preps, Standard Fastener Preps, Non-Handed, UL Listed, US32D-Satin Stainless Steel Finish Information

Rockwood 305 Door Edge Protection Guard, Surface Applied (Non-Mortised), No Hardware Preps, Non-Handed, UL Listed

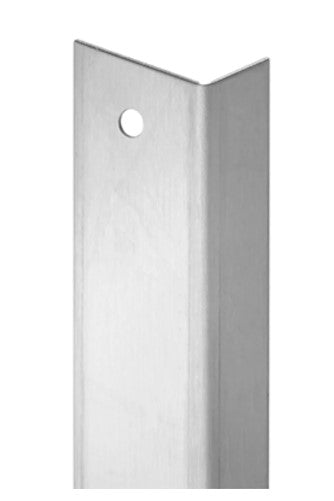

The Rockwood 305 is a heavy duty, L-shaped, non-mortise, surface applied stainless steel door edge that is designed to protect the vertical edges of a 1 3/4" thick commercial door from impact and wear. It covers both the leading edge and part of the push-side face, preventing splintering, dents, and damage in high-traffic areas.

Rockwood 305 Door Edge Guard Features:

  • Non-Mortised, Surface Applied
  • Material: .050" material thickness - 304 stainless steel x satin finish (US32D/630)
  • Standard fastener preps included (as shown in image)
  • Fasteners provided: #6 x 5/8" FH SMS
  • For use on 1 3/4" thick doors
  • Door Edge Guards are Non-Handed with no hardware preps (fastener preps only)
  • UL Listed for use on fire doors
  • Length dimensions are cut to exact length as follows:
    • 3'-6" = 42"
    • 6'-7 1/8 = 79 1/8"
    • 6'-11 1/8" = 83 1/8"
      • For other lengths, please contact MDI to request a quote.

Rockwood 305 Door Edge Guard Fire Rating:

  • Rockwood 305 Edge Guards come standard with the UL mark to designate fire rated for use on:
    • Wood or plastic-covered wood fire doors rated up to and including 1-1/2 hours
    • Hollow metal, steel-covered, composite type fire doors rated up to and including 3 hours

Rockwood 305 Door Edge Guard Options:

  • Custom Length sizes are available
  • Custom door thicknesses are available
  • Other finishes are available
    • Contact MDIsupply.com for special price quotes.
