4 7/8 inch Throat 16 Gauge Knock-Down Drywall CASED OPENING PROFILE HM Steel Frame Reinforced for use with DOUBLE ACTING TRAFFIC DOORS.
These frames are ideal for double swinging (double acting) restaurant style / traffic impact doors - for single or double openings. Traffic doors & hardware not included.

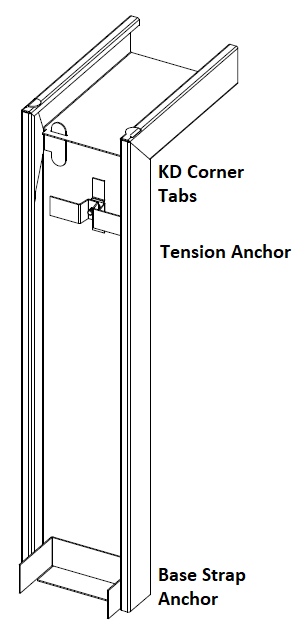

Commercial KD frames are among the most popular door frames used around the world. They can be used for a variety of wall construction materials (drywall, masonry, etc). Cased Opening Frames, sometimes referred to as Trimmed Opening Frames, complete an opening appearance when there is no door being hung into the frame. Cased or Trimmed Opening Frames finish the opening. Our KD frames can meet a variety of applications and can be painted to complement any decor. MDI knock-down frames are standard with a compression wall anchor, sometimes referred to as a "pressure-fit anchor" or a "tension screw anchor."

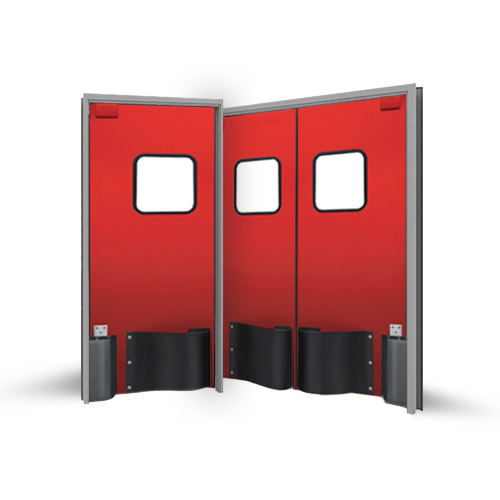

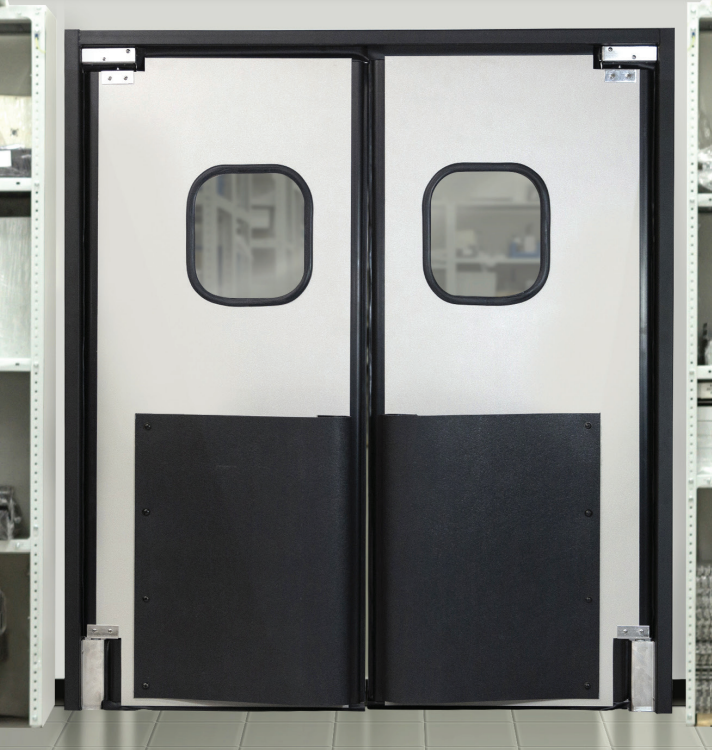

This Cased Opening Frame is reinforced to accept a double acting Traffic Impact Door installed onto it. The double acting traffic door can be manufactured by Eliason, Aleco or Equal. Drilling of holes for hardware is performed by door installer. Door and hardware not included.
Images above are for illustration purpose only and may not reflect the actual product or finish.
Featured & Product Specs of our Commercial KD Trimmed Opening Frame for Use with Double Acting Traffic Doors:
- Gauge: 16 Ga.
- Steel Material: A40 Galv Steel
- Includes: 3-Pieces (1-Head + 2-Leag Jambs)
- Warranty: 1-Year Warranty. Consult office for more details.

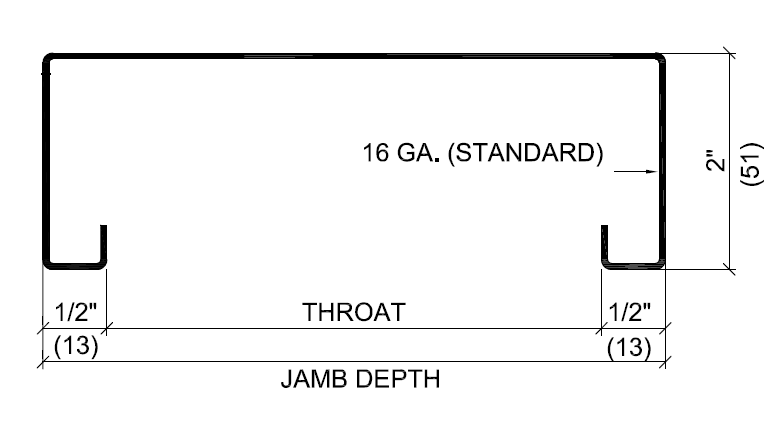

- Throat Size (Jamb Depth): 4 7/8" Throat (5 7/8" Jamb Depth). The 4 7/8 inch throat KD frame is our most popular frame...typically used to wrap around an existing wall. Typical wall construction is 2 x 4 Metal Stud (3 5/8 inch wide stud) with 5/8 inch sheet rock on each side.Can also be used oin masonry openings
- Wall Anchor: Standard Tension Screw (AKA Pressure Fit)

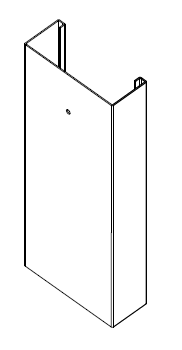

- Profile: TO - Trimmed Opening (AKA Case Opening Profile)
- Trim Dimension: Standard 2" Trim/Face
- Application: Commercial interior applications for use with commerical double acting restaurant doors / traffic impact doors such as Eliason, Alec or Equal. Contact MDI for more details.
- Handing: Non-Handed.
- Finish: A40 Galv Steel; Finish painting by others.
- Fire Label: Not Available on Trimmed Opening Frames
-
Packaging: Palletized/Crated & Shipped via Freight Carrier. If you only order one (1), please call for reduced shipping rate prior to ordering.
NOTES:
- For custom sizes or special order frames, please contact our Customer Service dept at 888.634.3667.
-
Rough Opening Required: Door Width + 2" x Door Height + 1" *
* When wrapping frame around existing wall.
