Norton 1601 Door Closer w/ the Norbell Door Chime Notification

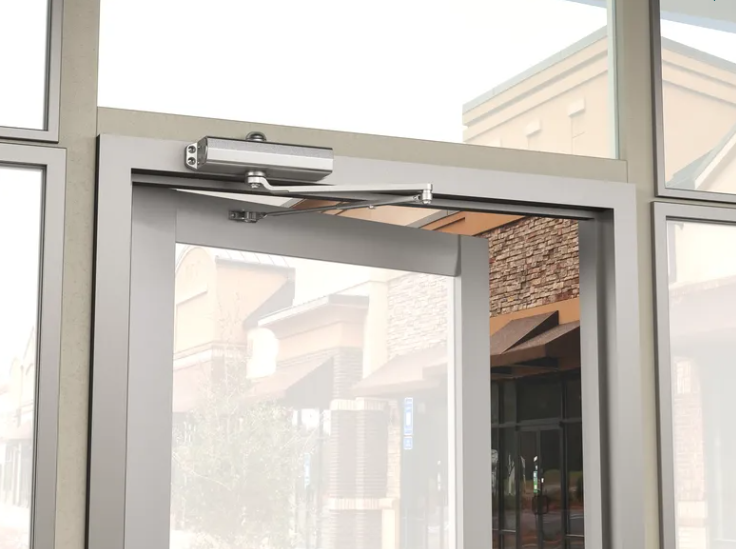

The 1600 Series door closer offers proven quality, performance, and reliability unmatched by the competition. A staple in the industry, this ANSI/BHMA Grade 1 closer is designed for exterior or interior doors. A full complement of regular and heavy-duty arms, brackets, and options make the 1600 Series ideal for virtually any medium traffic, commercial application.

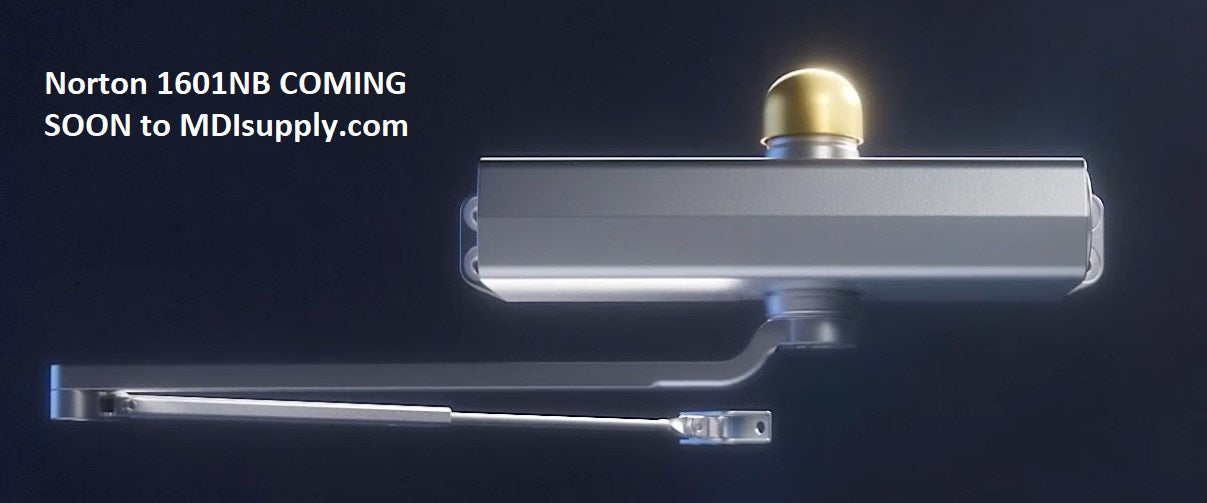

Now with the one-of-a-kind door notification, as the door is opened the NorBell™ utilizes the rotation of the door closer pinion to create it's iconic chime. This door opening notification solution was designed for minimal impact on the door, frame and overall appearance. Mitigating damage, creating tamper-resistance, and keeping dangling objects out of the door threshold.

The closer is automatically Barrier Free (BF) for ADA Compliance.  The item box will state Norton 1601.

Standard features of the Norton 1601 door closer:

• Closer Type: Surface
• Maximum Door Weight: 250 lbs
• Traffic Rating: Moderate Traffic
• Warranty: 30-year Factory Limited Warranty
• Non-handed
• Rack-and-pinion design
• Cast aluminum body

• Barrier Free (ADA Compliant)

• Adjustable spring sizes 1-6
• 2-7/8" (73mm) projection

• 1-3/8" (35mm) diameter piston

• 5/8" (16mm) diameter pinion journals
• Standard, separate and independent, latch, sweep  and backcheck intensity valves
• Tri-Style® packaging (regular arm, top jamb and parallel arm mounting)
• NorGlide® fluid
• All standard arm applications allow doors to  swing 180°, conditions permitting
• Staked valve
• Sold Individually (Norbell with the full door closer)

NorBell Specific Features & Benefits 1601NB:

• Concealed, low impact design
• Tamper resistant
• Available in a variety of finishes to either match your door closer, or to draw contrast with a clear coated brass finish
• Uses the rotational energy of the pinion to strike the bell
• Clear ringing noise
• Mounts in a discreet location
• Simple installation
• Clear indication of entry by customers, employees, or anyone else who may be using the door
• No batteries, wires, or electronics involved
• Does not damage doors unlike other notification solutions (handing chimes or bells).

Certifications

• ANSI/BHMA A156.4, Grade 1 certified
• UL listed

• UL10C compliant for positive pressure

• ADA. compliant (1601BF Door Closer)
