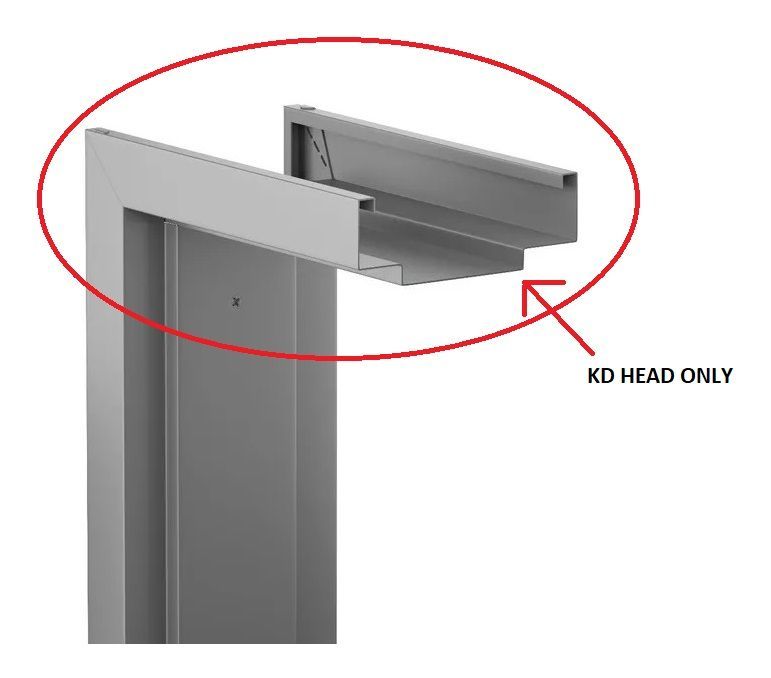

16 Gauge KD HEAD ONLY x 6 1/8" Throat
Commercial KD frames are among the most popular door frames used around the world. They can be used for a variety of wall construction materials (drywall, masonry, etc). Steel and wood doors can be installed into commercial HM steel frames. Our KD frames can meet a variety of applications, have various hardware preparations and can be painted to complement any decor.
IMPORTANT NOTICE: This is a KD Head Only that will only work with frames sold by MDI Supply. Please contact customer service if you need assitance or need to verify if this KD HEAD will work with the jambs you have.
Images above are for illustration purpose only and may not reflect the actual product or finish.
Details and product specs of our commercial KD Heads:
| Steel Gauge: |
16 Gauge |
| Steel Type: |
A40 galv. |
| Warranty: |
1-Year Warranty. Consult office for more details. |
| Door Thickness Required: |
1 3/4 standard |
|

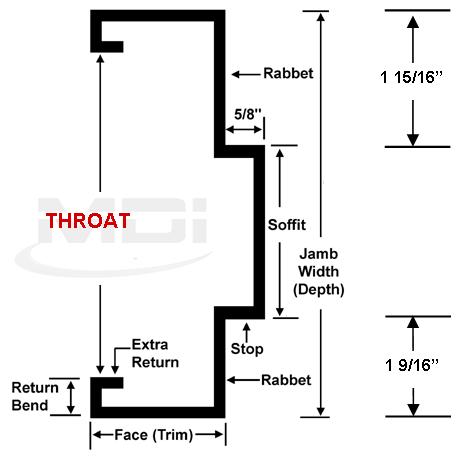

Throat Size (Jamb Depth)
|
6 1/8" Throat (7 1/8" Jamb Depth)
|
|
Wall Anchor:
|
None (this is a head only) |
| Profile: |

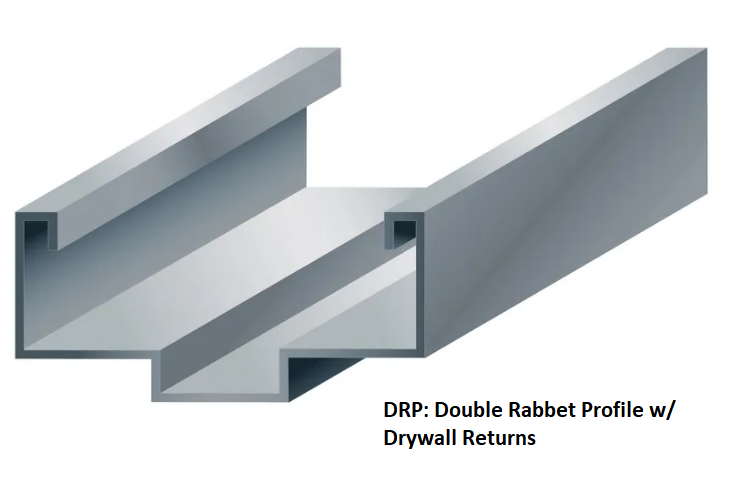

Standard DRP-Double Rabbet Profile w/ Drywal Returns |
| Trim Dimension: |
Standard 2" Trim |
| Application: |
Interior and exterior applications.
|
| Handing: |
Non-Handed |
| Finish: |
A40 Galv Steel; Finish painting by others. |
| Fire Label: |
Fire Labels go on the Jambs and not the head.
|
| Packaged: |
Boxed and shipped via UPS or Palletized & Shipped via Freight Carrier...
...depending on the quantity ordered. |
| Note: |
For custom sizes or special order frames please contact our Customer Service dept at 888.634.3667. |
INSTALLER NOTE:
Rough Opening Required: Door Width + 2"
* When wrapping frame around existing wall.
