Door/Frame Unit: Flush Commercial Steel Door, Knock-Down Adjustable 4 1/2-inch - 7 3/4-inch Throat Steel Frame with Spring Hinges and an Entry Function Cylindrical Lever Lock, 90 min Fire Labeled

Door/Frame Unit: Flush Commercial Steel Door, Knock-Down Adjustable 4 1/2-inch - 7 3/4-inch Throat Steel Frame with Spring Hinges and an Entry Function Cylindrical Lever Lock, 90 min Fire Labeled

SKU: SKU:DFU2-HMHMADJS-2480-LH

Availability : Usually Ships in 5-7 Business Days

Regular price $610.00
Regular price Sale price $610.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

Fire Label: Door & frame are 90 min fire labeled
View full details

About This Door/Frame Unit:

Heavy duty steel flush entrance unit with Adjustable 4 1/2" - 7 3/4" (ADJ-47) throat knock-down steel frame. Complete with a commercial grade entrance function lever lockset and UL Listed spring hinges in US26D-satin chrome finish. Equipped with a 90-minutes fire label. on the door & frame.  Manufactured with the highest quality Galvanneal steel. Even though it looks like raw steel it is not. There is no need for prime-painted whereas the steel is zice coated allowing you to finish paint direct to the steel.  The frame can be used with steel studs or wood studs anywhere from 4 1/2" - 7 3/4". Used primarily in drywall applications after the wall has been constructed. The frame comes complete with a punch & dimple prep on the 2" trim on both sides to become an integral part of teh drywalll. Precision 45° mitered corners for fast & easy installation and assembly for a clean uniform appearance.

Details:

  • Door: 20 gauge Steel x Honeycomb core
  • Frame: 16 gauge steel knock-down Adjustable frame

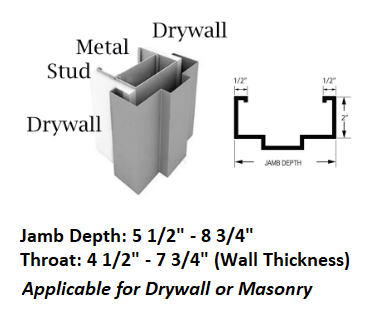

  • Frame Throat Size: Adjustable 4 1/2" - 7 3/4" (ADJ-47)
  • Steel: A40 Galv Steel
  • Fire Label: 90 min (door & frame)
  • Hinges: UL Listed x US26D-satin chrome finish
  • Lockset: Grade 2 Entrance Function (Key locks/unlocks the lever)
  • Provides protection from the spread fire from one space to another
  • Can be used in both interior and exterior walls
  • Steel frame provides superior protection compared to normal wood jambs
  • Commercial grade weatherstripping and saddle thresholds are sold separately
  • Commercial grade hardware for additional security and long lasting durability
  • Ready to install

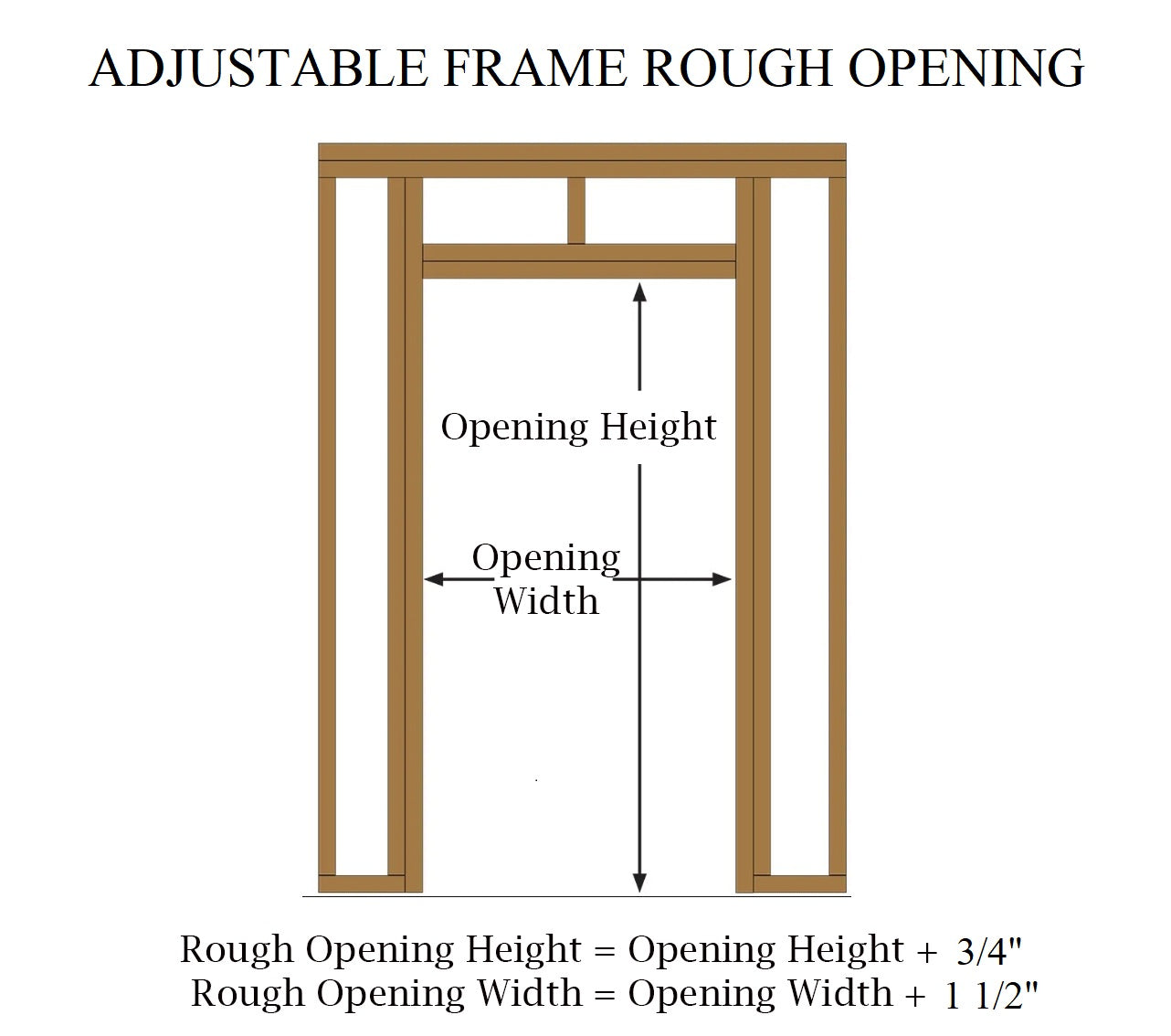

  • Rough Opening Required to Wrap Frame Around Existing Wall:
    • Width + 1.5" x Height + .75"
    • Example: 3'-0" x 7'-0" unit requires a Rough Opening: 37 1/2" x 84 3/4" to wrap the frame around the existing wall.

Typical Wall Framing for Adjustable Frame Wall Thickness:

  • Wall Construction: Any wall construction with a wall thickness 4 1/2" - 7 3/4".

Lockset Specs:

  • Grade 2 Commercial grade entrance function (F109)
  • Latchbolt operated by lever from either side or key in outside lever
  • Outside lever locked by push/turn button on inside
  • When outside lever is locked by push button on inside – key from outside,  or rotating inside lever unlocks outside lever
  • When outside lever is locked by pushing and turning the button on the inside,  key from outside or rotating inside lever retracts latch but does not unlock outside lever
  • Deadlocking (guarded) latchbolt
  • Other functions are available.  Contact MDI for more information.

Buyer Note:

  • Hardware to be installed onto the door in-field by others.  MDI will not install the hardware.  This is better for the product whereas if installed you run the risk of damage in transit.  Lock & hinge preps will be in the door & the frame making it a very easy and fast installation.
