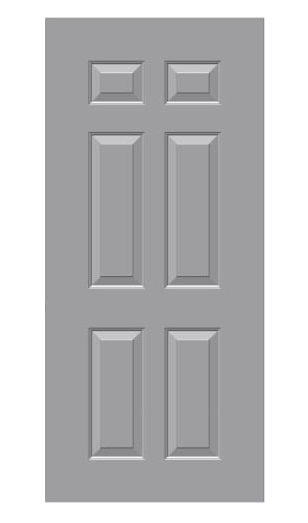

6-Panel Commercial Steel Doors, 18 Gauge Galv Steel, Polystyrene Insulated Core:
The 6-panel design door is perfect for applications that require a more traditional looking door without sacrificing the durability and rigidity of a commercial steel door. Our 6-panel steel door is an ideal solution for condo's, apartments, hotel and motel entry doors, residential buildings and can be painted to complement any decor.
STANDARD SPECS:
- Heavy-Duty 18 Gauge A40 Galv Steel
- Insulated Polystyrene Core (Energy Efficient)
- Ideal for Exterior and Interior Applications
- Single borelock prep, double bore lock prep or mortise lock edge prep.
Images above are for illustration purpose only and may not reflect the actual product or finish.
Details and product specs of our 6-Panel Commercial HM steel door:
| Steel Gauge: |
18 Gauge |
| Steel Type: |
A40 galv. |
| Warranty: |
1-Year Warranty. Consult office for more details. |
| Door Thickness: |
1 3/4 standard |
|
Application:
|
Interior and exterior applications.
|
|
Door Core:
|
Polystyrene Insulated Core w/ 7.0 Thermal Performance Core is bonded to face sheets. |
| Door Edge: |
Hinge & lock edges beveled (door is handed) |
| Edge Construction: |

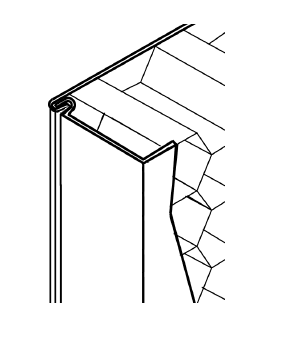

Lockseam edge (mechanically interlocked edge seams) |
| Hinge Prep: |
(3) 4 1/2" hinge prep @ MDI Standard Locations (5/10/Equal)...
...See downloads tab for more details on our hinge & lock locations. |
| Lock Preps: |

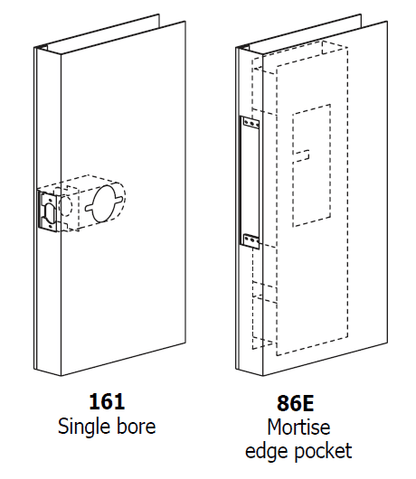

86 Mortise Edge Prep: This is a 1 1/4" x 8" mortise edge (pocket only) prep. There are no face bores (holes) through the door.
Single Bore Lock Prep (161): 161 Lock Prep @ MDI Standard Location: This is a Single bore Prep that is a 2 1/8" hole x 2 3/4" backset.

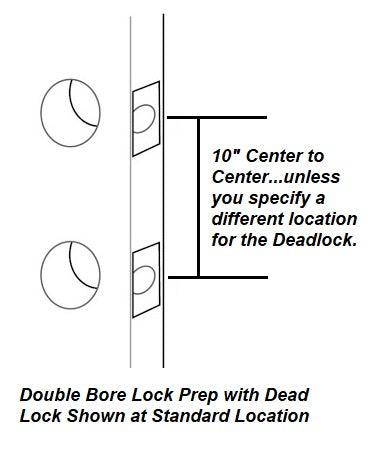

Double Bore Lock Prep (DB): DB is a Dead Lock Prep (DL Prep): is not standard and is optional. If you choose to Add a DL Prep the prep in the door will be two (2) 2 1/8" bores through the face of the door x 2 3/4" backset and the deadlokc prep will be located 10" center-to-center above the standard single bore lock prep. This prep is a modifcation to the standard door and once the preps is done the door cannot be canceled, returned or exchanged.
...See downloads tab for more details on our hinge & lock locations.
|
| Undercut: |
3/4" (industry standard)...also maximum allowed for a fire door.
|
Door Handing &
Handing Chart: |
LH (Left Hand) or RH (Right Hand) Swing (our doors are handed)
Click here to open our Handing Chart |
| Finish: |
A40 Galv Steel; Finish painting by others. |
| Fire Label Option: |
90 min B-label is standard;
Optional: 20 min label; 45-minute C-label; 3-hour A label
Contact our office for a price quote.
|
| Packaged: |
Palletized/Crated & Shipped via Freight Carrier |
| Note: |
For custom sizes or special order doors please contact our Customer Service dept at 888.634.3667. |
Example of Door Order Size:
3-0 x 7-0 nominal Door Size = 35 3/4" x 83 1/8" Net (Exact) Door Size (on pull side)
All of our HM Doors are prefit, beveled and undercut.
Door Construction:
Door Face Sheet: 6-Panel 18 gauge
Door Core: Polystyrene Insulated core
Hinge Reinforcement: 10 Gauge high frequency dual purpose hinge reinforcement w/ return bend for added strength and rigidity. Field convertible to accommodate heavy weight hinges.
Top End Channel: 18 gauge inverted top channel projection welded to the door skins and tack-welded at each corner.
Surface Closer Reinforcement: 18 gauge box style door closer reinforcement.
Bottom End Channel: 18 gauge inverted bottom channel projection welded to the door skins and tack-welded at each corner.
