4 7/8" Throat 16 Gauge Trimmed Opening Knock-Down Frame Information
4 7/8 inch Throat 16 Gauge Knock-Down Drywall TRIMMED OPENING PROFILE HM Steel Frames Commercial KD frames are among the most popular door frames used around the world. They can be used for a variety of wall construction materials (drywall, masonry, etc). Trimmed Opening Frames, sometimes referred to as Cased Opening Frames, complete an opening appearance when there is no door being hung into the frame. Trimmed Opening Frames finish the opening. Our KD frames can meet a variety of applications and can be painted to complement any decor. MDI knock-down frames are standard with a compression wall anchor, sometimes referred to as a "pressure-fit anchor" or a "tension screw anchor."
Images above are for illustration purpose only and may not reflect the actual product or finish.
Details and product specs of our commercial KD Trimmed Opening Frames:
Steel Gauge:
16 Gauge
Steel Type:
A40 galv.
Includes:
3-Pieces (1-Head + 2-Leg Jambs)
Warranty:
1-Year Warranty. Consult office for more details.
Throat Size (Jamb Depth)
4 7/8" Throat (5 7/8" Jamb Depth)
The 4 7/8 inch throat KD frame is our most popular frame...typically used to wrap around an existing wall. Typical wall construction is 2 x 4 Metal Stud (3 5/8 inch wide stud) with 5/8 inch sheet rock on each side.
Can also be used oin masonry openings
Wall Anchor:
Standard Tension Screw (AKA Pressure Fit)
Profile:

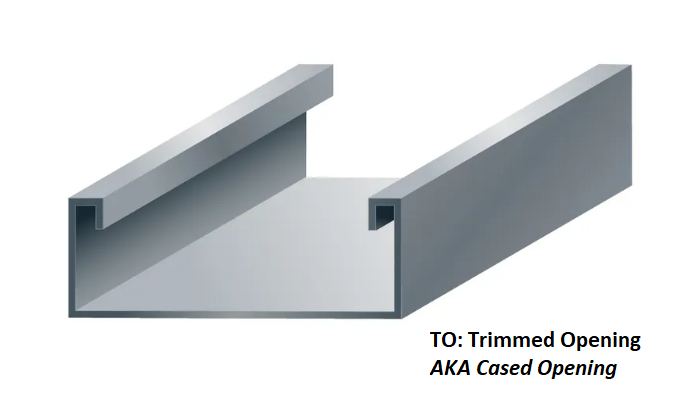

TO - Trimmed Opening (AKA Case Opening Profile)
Trim Dimension:
Standard 2" Trim/Face
Application:
Interior and exterior applications. Commercial & Residential
Handing:
Non-Handed
Finish:
A40 Galv Steel; Finish painting by others.
Fire Label:
Not Available on Trimmed Opening Frames
Packaged:
Palletized/Crated & Shipped via Freight Carrier
Note:
For custom sizes or special order frames, please contact our Customer Service dept at 888.634.3667.

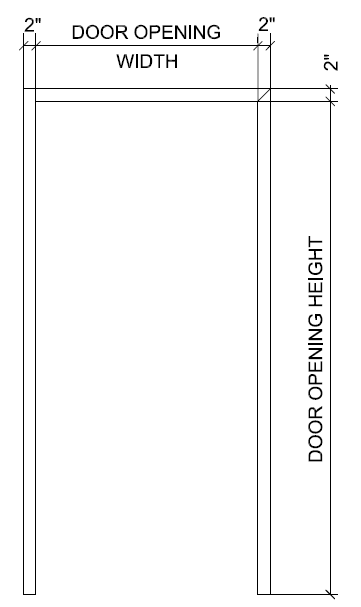

INSTALLER NOTE: Rough Opening Required: Door Width + 2" x Door Height + 1" *
* When wrapping frame around existing wall.
