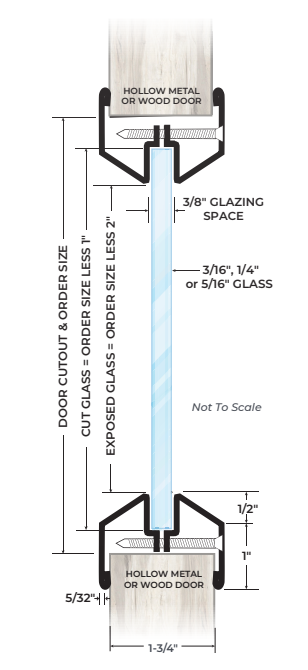

NGP L-FRA100 Lite Kit for use with 3/16″, 1/4" or 5/16" thick Glass, for use in 1 3/4" Thick Doors - Glass Not Included.

NGP L-FRA100 Low Profile Design Lite Kit Only for Installation into 1 3/4-inch Thick Doors.
Glass is Not Included. This is a Lite Kit Only.

National Guard Products L-FRA100 Vision Kit for 1 3/4" Thick Doors

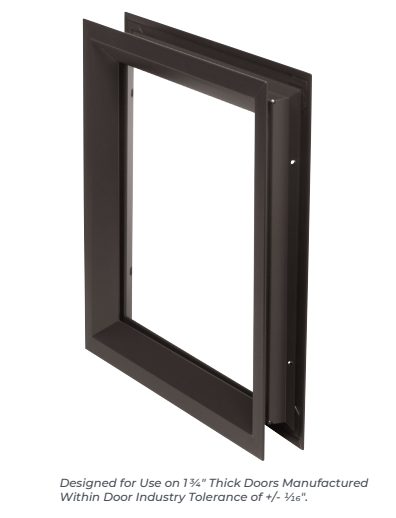

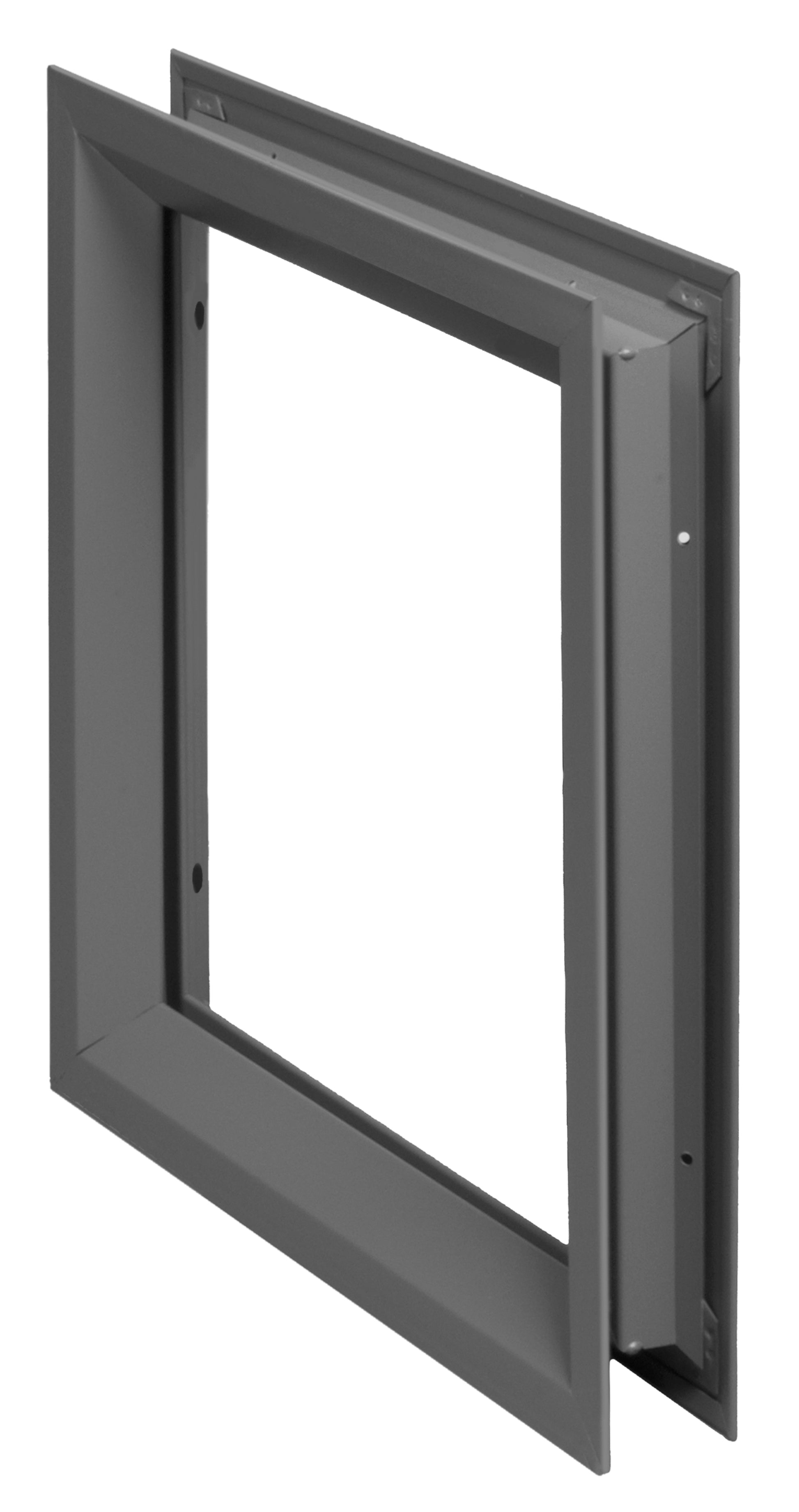

Low Profile Lite Kit (L-FRA100)

Features & Specs of the NGP L-FRA100 Steel Lite Kit:

• For 1-3/4" Thick Doors Only
• 18 Ga. Steel
• Mitered and Welded Corners
• Welded Reinforcing Clips at Corners
• Countersunk Mounting Screw-Holes
• Fasteners Included: #8 X 1-3/4" Phillips Head SMS
• Special order sizes are available
• Designed for Use on 1-3/4" Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16"
• Finish:
  • GPZ - Gray Primer Powder Coat Finish
  • DKB - Dark Bronze Powercoat Finish
  • Other finishes are available by special order.  Please contact MDI with your request.
• Made in the USA.

Size Note: If you don't see a size you need, give us a call at 888.634.3667 or send us an email to orders@mdisupply.com and we'll be happy to provide a price quote.  Please include your full billing & shipping info, contact person and phone number.

What's Included:

• The L-FRA100 Low Profile Steel Lite Kit
• Fasteners: #8 X 1-3/4" Phillips Head SMS

Testing Certifications & Code Compliance:

• CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
• Designed for Use on 1-3/4" Thick Doors Manufactured Within Door Industry Tolerance of +/- 1/16"

Availability:  Ships in 2-3 Business Days After Order
