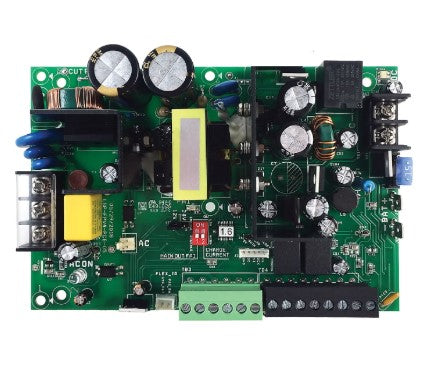

Securitron AQL4-R8E1 Modular Power Supply System

Securitron AQL4-R8E1 Power Supply

The UL-listed Securitron AQL4 Series of dual voltage, field selectable switching power supplies provides 4 Amps at 12 VDC or 3 Amps at 24 VDC. Both options can be expanded to support up to 16 outputs and offers a dedicated fast battery charging circuit.

Available with factory or field configured optional (B100) multi-voltage and (NL4) network monitoring & control. Contact MDI Supply for optional equipment not shown.

An out-of-the-box  solution that offers unique performance and value.

Product Features of the Securitron AQL4-R8E1 Power Supply:

• Dual Voltage (Field Selectable): 4 Amp at 12 VDC or 3 Amp at 24 VDC Switching Power Supply

• Netlink Managed Devices: None
• Number of Outputs: 8
• Secondary Voltage Module: No

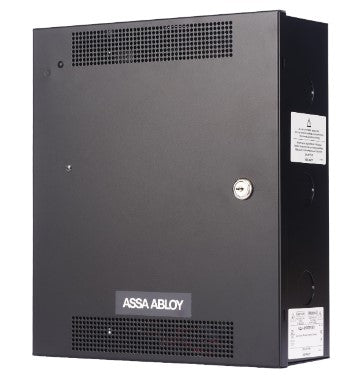

• Enclosure Size: E1 - 14" x 12" x 4.5"
• Number of Relays: 8
• Fuse Rating [AMP]: 3
• Fuse Type: ATM

Specs & Certifications:

• Power Supply Type: Intelligent Switching
• Voltage: 12/24
• Output Voltage: 12.5 or 25 VDC
• Efficiency Rating: up to 91% efficiency
• Input Voltage: 120
• Amps: 4
• Class 2 Power Limited: Yes
• Maximum Operating Temperature: 120° F
• Minimum Operating Temperature: 32° F
• UL 294 Listed
• UL 603 Listed
• UL 1076 Listed
• ULC-S318 Listed
• ULC-S319 Listed
• CSA C22.2 #107.1
• RoHS Compliant
