HES 1006CLB-630 Electric Strike with CLB Complete Pac Faceplates, US32D/630-Satin Stainless Steel

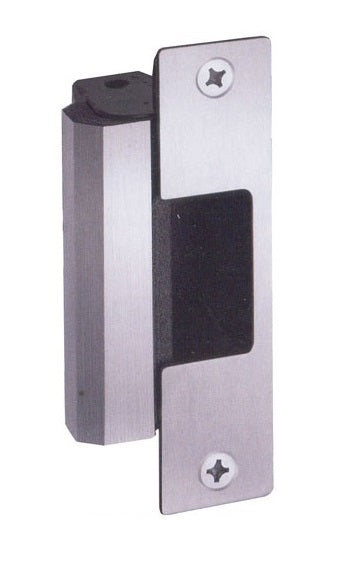

HES 1006CLB Series Electric Strike
Heavy duty electric strike for commercial applications.
Complete Pack Options:

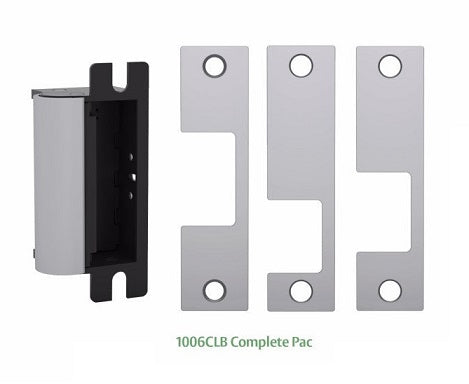

CLB Pack Option Includes:
J, K, KD, and KM faceplates for Latchbolts

***This product is not returnable ***

The strongest, most versatile electric strike available.

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

Product Features

• Stainless steel construction
• Tamper resistant
• Static strength 2,500 lbs. (fail secure)
• Dynamic strength 350 ft-lbs. (fail secure)
• Endurance 1,000,000 cycles
• Fail secure (standard)
• Non-handed
• Accommodates up to 1" deadbolt
• Plug-in connector
• Full keeper shims for horizontal adjustment
• Trim enhancer
• Dual voltage 12 or 24 VDC continuous duty
• Internally mounted solenoid

Certifications

• ANSI/BHMA A156.31, Grade 1
• ANSI/SDI 250.13 Certified
• ASTM E152 Fire Door Compliant
• ASTM E330 Certified
• Florida Building Code Approved FL# 16392
• NFPA-252 fire door Compliant
• RoHS Compliant
• UL 1034 burglary-resistant listed
• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
• UL294 Listed

General Specification

• Fire Rating ~ Single Door : 3 Hour (Fail Secure Only)
• Fire Rating ~ Double Door : 1.5 Hour (Fail Secure Only)
