Best Access Systems 1E74-C181-RP3 Mortise Cylinder Housing, US26D-Satin Chrome

Best Access Systems 1E74-C181 Mortise Cylinder Housing:
1-1/4" Mortise Cylinder Housing with the Adams Rite cam - C181

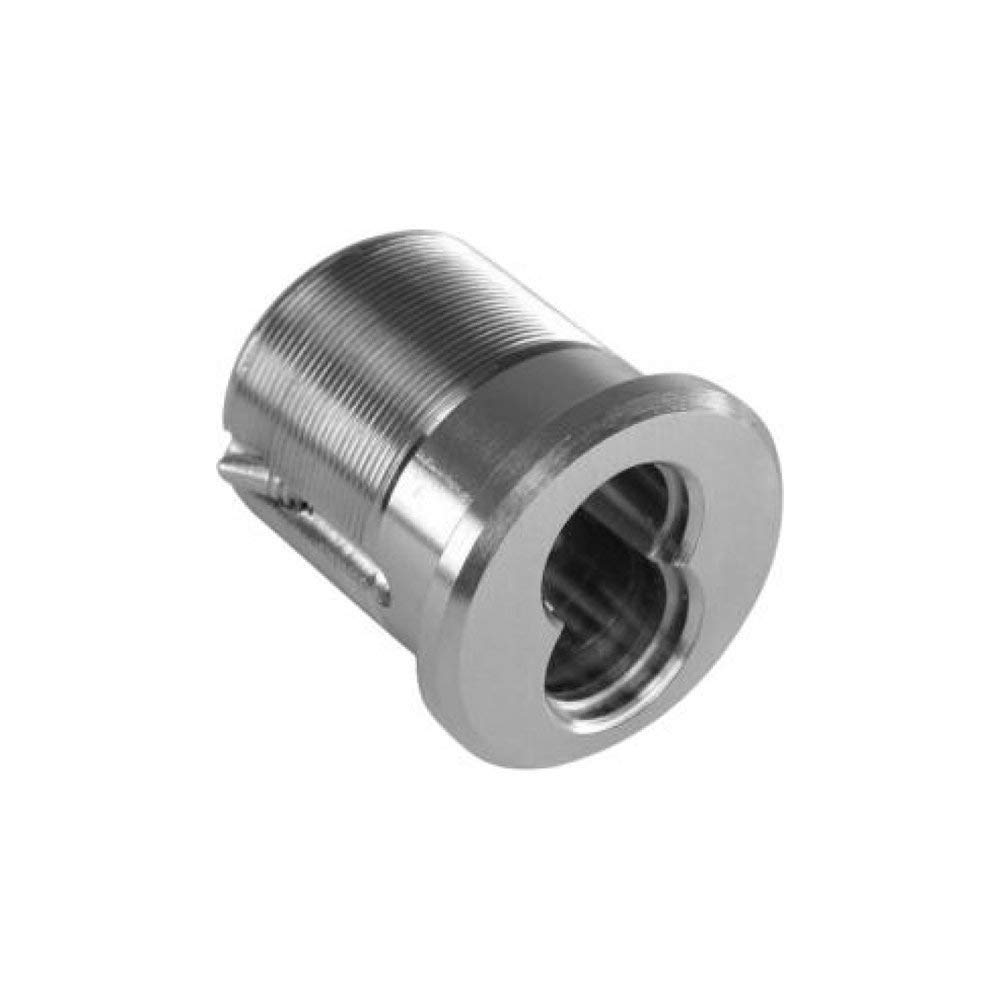

* Product image above is shown with permanent core installed for illustration purpose only.  Cylinder housing is shipped less core as standard; unless ordered with a Temporary Construction Core, as detailed above. Permanent core by others.

Best Access Systems 1E74 Mortise Cylinder Housing Details:

• 1-1/4" small format interchangeable core mortise cylinder housing.
• Accepts all Best IC cores, permanent core not included.

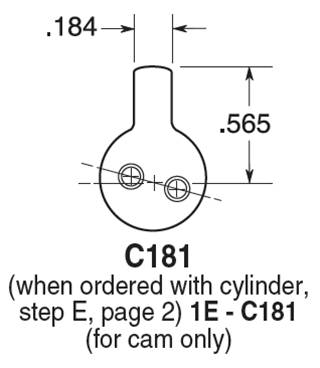

• Includes C181 cam....for Adams Rite cylinders.
• Includes the RP3 ring package, includes a 1E-R2 1⁄8”  trim ring and a 1E-R5 3⁄8”  trim ring.
• BEST interchangeable cores may be master- keyed into any existing BEST system.
• For doors 1-7/8” to 2-1/2” thick.
• Cylinder diameter– 1 5⁄32”.

Best mortise cylinder housings may be altered to function with other manufacturers locks by use of different cams and different cylinder rings. Contact us for more information.

Standard mortise applications require use of Best's 1E Series cylinders with standard 1E-C4 cam. Best cylinders may be altered to function with other manufacturers' locks by use of different cams and different cylinder rings.

Special cylinder variations are available for most applications.

Best cylinders are machined from brass or bronze bar stock and are available in a variety of finishes. Additional security is provided by a set screw that mounts diagonally in the cylinder wall and when tightened, holds the cylinder securely in the housing. Best mortise cylinders feature the Best interchangeable core and may be master keyed into any existing Best system. Contact our office at 888.634.3667 for information on special cylinder applications.

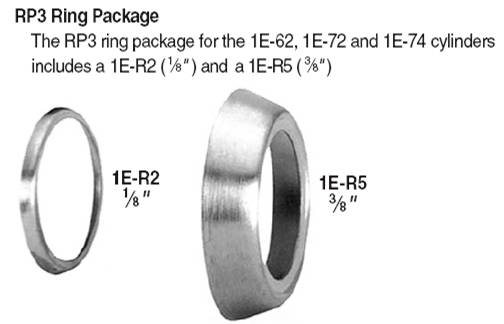

RP3 Ring Package:

The RP3 ring package for the 1E-62, 1E-72 and 1E-74 cylinders includes a 1E-R2 (1⁄8" ) and a 1E-R5 ( 3⁄8" )

Best Access Systems and Stanley Security Solutions (Stanley Hardware) are owned by Dorma Kaba.

Best Access Systems 1E74-C181 mortise cylinder housing:
1-1/4" Mortise Cylinder Housing with the most popular cam - C181

Click here for full product catalog on Best mortise and rim cylinders

Best Access Systems is owned and operated by Dorma Kaba (Formerly Security Solutions...AKA Stanley Hardware)
