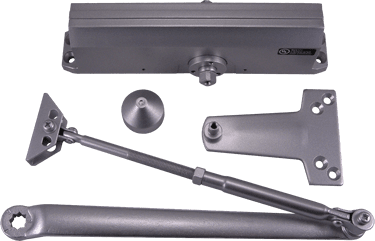

Design Hardware 116 Surface Door Closer
With heavy duty cast aluminum body
Design Hardware 116 Door Closer Details:
» Meets ANSI A156.4 – Grade 1 Standards
» UL Listed for “A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated
» Meets ADA requirements ANSI A117.1
» Heavy Duty Cast Aluminum Closer Body with Rack & Pinion Construction
» Heat Treated Heavy Duty Steel Piston, Spindle & Spring
» Adjustable Spring Power from Size 1 to 6 – Factory preset at size 3
» Independent Latch & Sweep Speed Controls
» Back Check Intensity Control Standard
» Staked Valves to prevent backing valves out too far
» Plastic Pinion Cap & PA Bracket included
» Molded Plastic Cover available special order
» CTC Hole Pattern: 9 1/16″ CTC Horizontally x 3/4″ CTC Vertically116 Template
» 2 7/8″ projection without cover
» Minimum Top Rail: Regular Arm: 3 1/8″ – Top Jamb: 1 7/8 ” – Parallel Arm: 5 3/4″
» Machine screws & Thru Bolts, Wood screws & Self tapping machine screws included.
» Includes all screws and brackets for Regular Arm, Top Jamb and Parallel Arm Installations
» Accessories: Hold Open Arms, Heavy Duty Arms, Drop Plates, Extended Arms & more…
» Factory Limited Lifetime Warranty
Available Finishes On the Design Hardware 116 Door Closer
» AL: Painted Aluminum...Stock item, Typcially Ships in 2-3 Business Days
» BZ: Painted Dark Brown/Bronze. Special Order. Typically Ships in 2-3 Business Days
