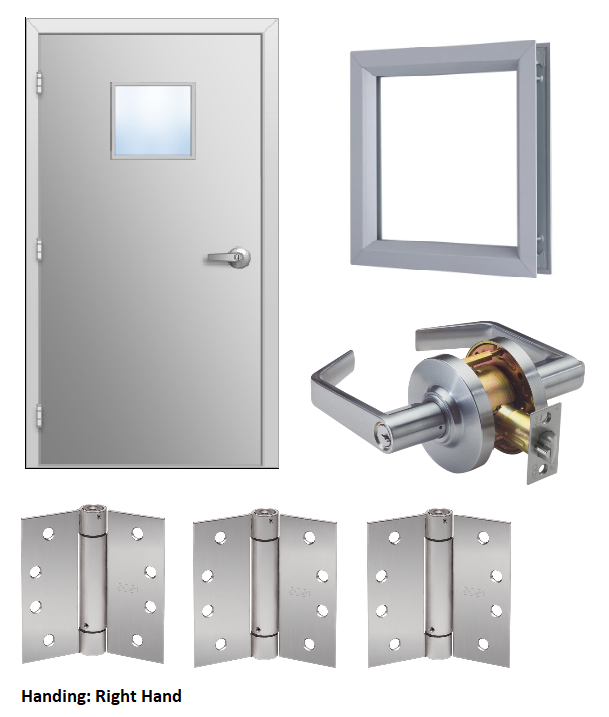

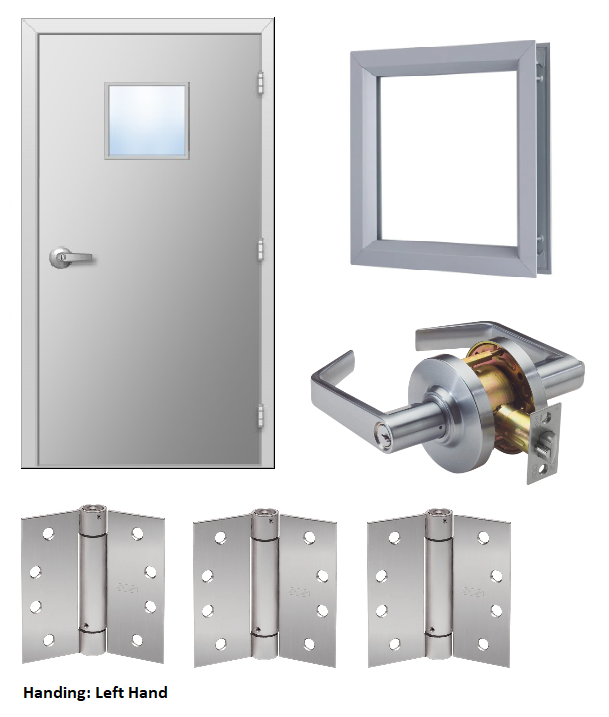

Door/Frame Unit: Flush Commercial Steel Door with 10-inch x 10-inch (viewable) Metal Vision Kit, Knock-Down 4 7/8" Throat Steel Frame with Spring Hinges and an Entry Function Cylindrical Lever Lock, 90 min Fire Labeled

Door/Frame Unit: Flush Commercial Steel Door with 10-inch x 10-inch (viewable) Metal Vision Kit, Knock-Down 4 7/8" Throat Steel Frame with Spring Hinges and an Entry Function Cylindrical Lever Lock, 90 min Fire Labeled

SKU: SKU:DFU3-HMHM478-2480-FV-LH

Availability : Usually Ships in 5-7 Business Days

Regular price $775.00
Regular price Sale price $775.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

Fire Label: Door & frame are 90 min fire labeled
View full details

About This Door/Frame Unit:

Heavy duty steel flush entrance unit with a 10" x 10" (viewable glass) metal vision kit installed into the door with clear fire & saftey rated ceramic glass, 4 7/8" throat knock-down steel frame. Complete with a commercial grade entrance function lever lockset and UL Listed spring hinges in US26D-satin chrome finish. Equipped with a 90-minutes fire label. on the door & frame.  Manufactured with the highest quality Galvanneal steel. Even though it looks like raw steel it is not. There is no need for prime-painted whereas the steel is zice coated allowing you to finish paint direct to the steel.  The frame can be used with steel studs with a single layer of 5/8 drywall on both sides of the wall for a total wall thickness of 4-7/8 in. Used primarily in drywall applications after the wall has been constructed. The frame comes complete with top pressure-fit screw anchorsd (tension screws) and bottom strap anchors and precision 45° mitered corners for fast & easy installation and assembly for a clean uniform appearance.

Details:

  • Door: 20 gauge Steel x Honeycomb core
  • Frame: 16 gauge steel knock-down
  • Frame Throat Size: 4 7/8" fixed throat
  • Steel: A40 Galv Steel
  • Fire Label: 90 min (door & frame)
  • Vision Kit: 10" x 10" (viewable glass) metal vision kit - factory installed
  • Glass: Fire & Safety Rated (Cat II) Ceramic Glass - factory installed
  • Hinges: UL Listed x US26D-satin chrome finish
  • Lockset: Grade 2 Entrance Function (Key locks/unlocks the lever)
  • Provides protection from the spread fire from one space to another
  • Can be used in both interior and exterior walls
  • Steel frame provides superior protection compared to normal wood jambs
  • Commercial grade weatherstripping and saddle thresholds are sold separately
  • Commercial grade hardware for additional security and long lasting durability
  • Ready to install
  • Rough Opening Required to Wrap Frame Around Existing Wall:
    • Width + 2" x Height + 1"
    • Example: 3'-0" x 7'-0" unit requires a Rough Opening: 38" x 85" to wrap the frame around the existing wall.

Typical Wall Framing for 4 7/8" Wall Thickness:

  • Metal Framing: 3 5/8" metal stud with one layer of 5/8" sheetrock each side.
  • Wood Framing: 2x4 wood stud with one layer of 5/8" sheetrock each side.

Lockset Specs:

  • Grade 2 Commercial grade entrance function (F109)
  • Latchbolt operated by lever from either side or key in outside lever
  • Outside lever locked by push/turn button on inside
  • When outside lever is locked by push button on inside – key from outside,  or rotating inside lever unlocks outside lever
  • When outside lever is locked by pushing and turning the button on the inside,  key from outside or rotating inside lever retracts latch but does not unlock outside lever
  • Deadlocking (guarded) latchbolt
  • Other functions are available.  Contact MDI for more information.

Buyer Note:

  • Hardware to be installed onto the door in-field by others.  MDI will not install the hardware.  This is better for the product whereas if installed you run the risk of damage in transit.  Lock & hinge preps will be in the door & the frame making it a very easy and fast installation.
