Commercial Steel Door, Honeycomb Core, 20 Gauge, Cylindrical Lock Prep, 90 min labeled

Commercial Steel Door, Honeycomb Core, 20 Gauge, Cylindrical Lock Prep, 90 min labeled

SKU: SKU:HMD-HC20-2480-161-LH

Availability : Usually ships in 5-7 business days

Regular price $267.00
Regular price $726.00 Sale price $267.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

Core/Gauge: Honeycomb x 20 Gauge ?
Lock Prep: 161 Prep-Single Bore 2 1/8" hole x 2 3/4-inch backset ?
View full details

Commercial Steel HM Door, Honeycomb Core, 20 Gauge Steel:
Steel doors can meet a variety of applications, have various hardware preparations and can be painted to complement any decor.  These doors are mainly used in applications suited for commercial use.


Images above are for illustration purpose only and may not reflect the actual product or finish.

Details and product specs of our commercial HM steel door:

Steel Gauge: 20 Gauge
Steel Type: A40 galv.
Warranty: 1-Year Warranty.  Consult office for more details.
Door Thickness: 1 3/4 standard

Application:

Interior and exterior applications.

Door Core:

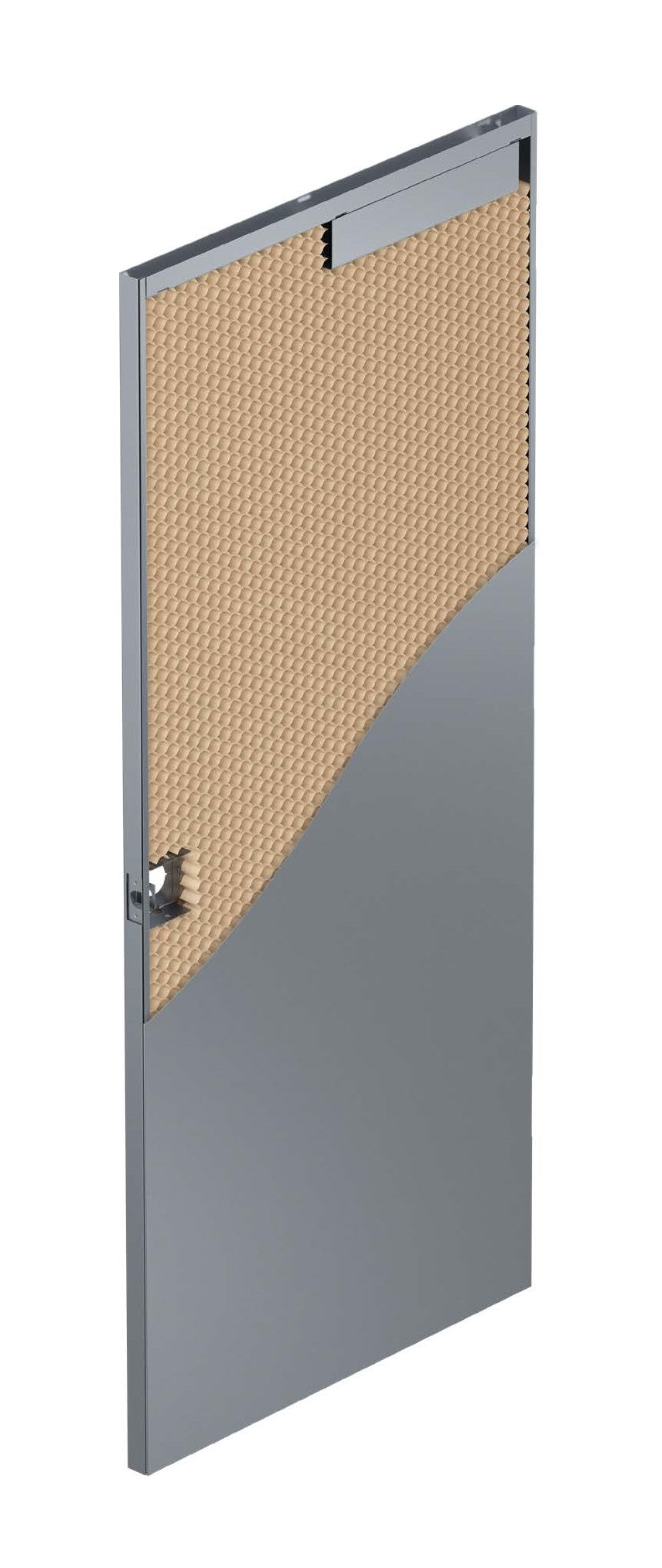

Honeycomb core: Structural 1" hexagonal cell.  Core is bonded to face sheets.
Door Edge: Hinge & lock edges beveled (door is handed)

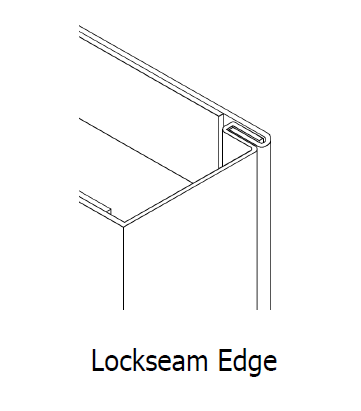

Edge Construction: Lockseam edge (mechanically interlocked edge seams)

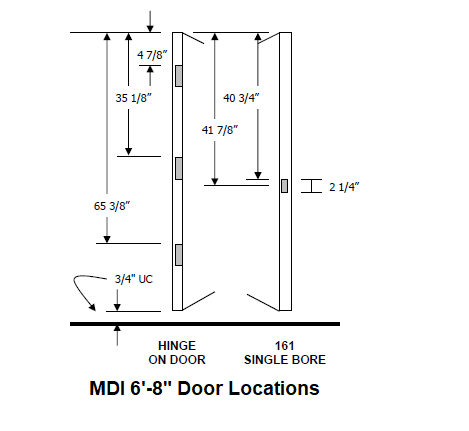

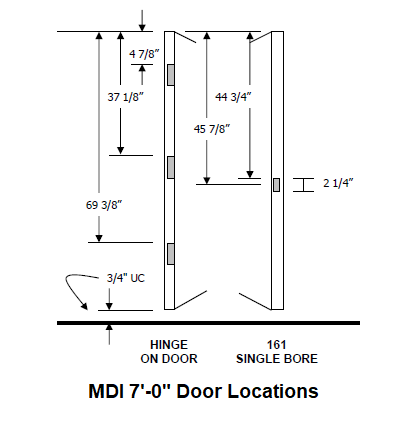

Hinge Prep: (3) 4 1/2" hinge prep @ MDI Standard Locations (5/10/Equal)...
...See downloads tab for more details on our hinge & lock locations.
Lock Prep:

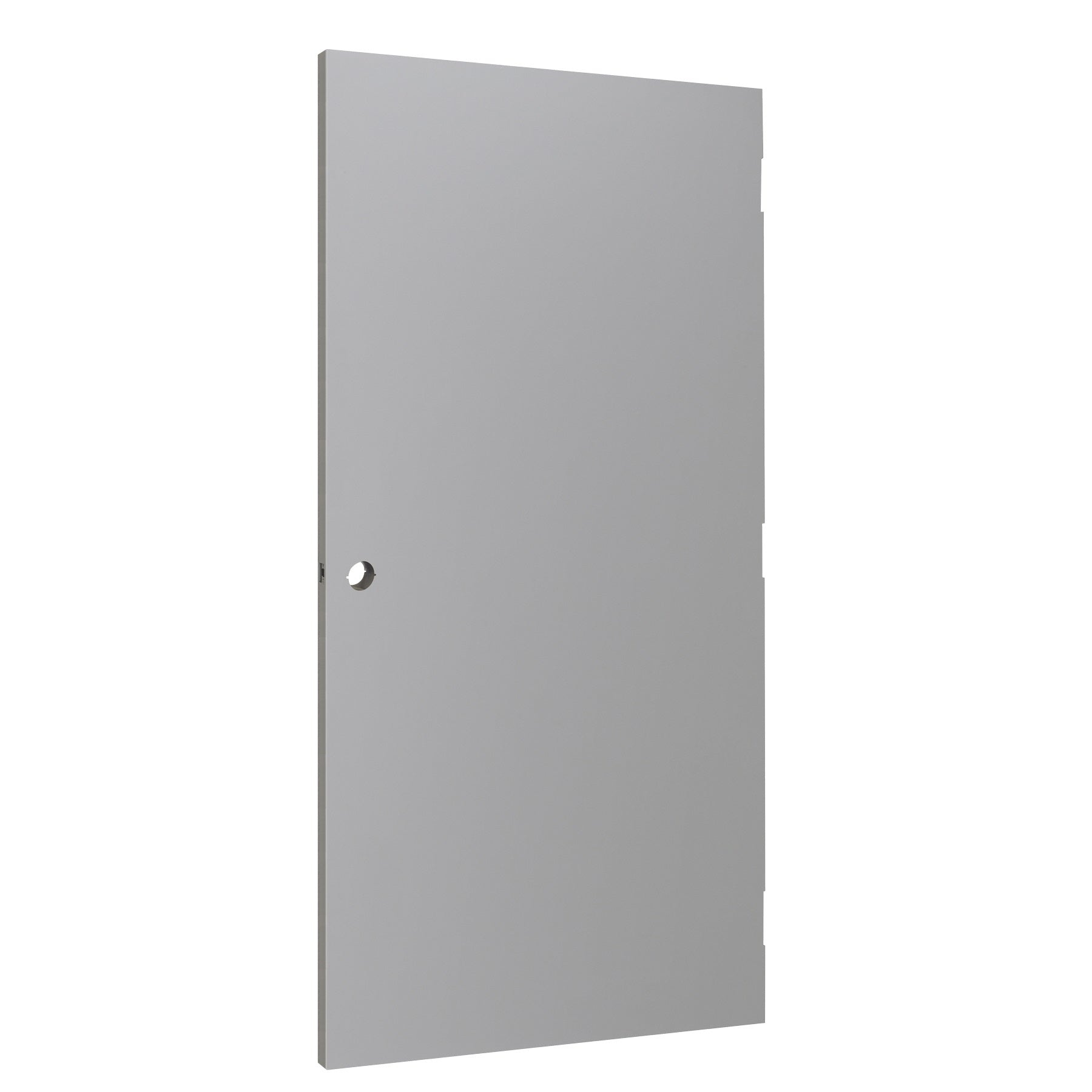

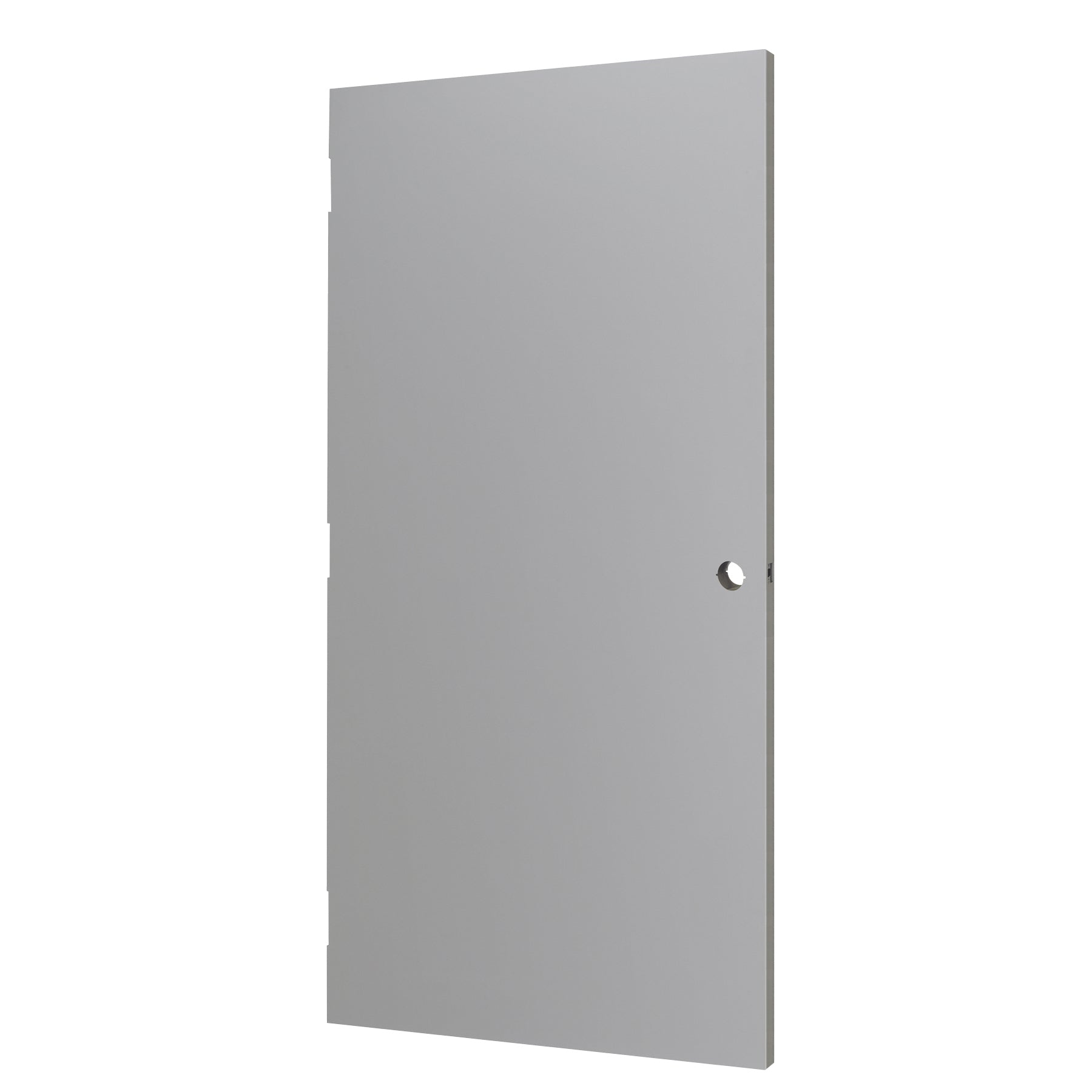

Single Bore Lock Prep (1-Bore):  161 Lock Prep @ MDI Standard Location: This is a Single bore Prep that is a 2 1/8" hole x 2 3/4" backset.

Double Bore Lock Prep (2-Bores):  is not standard and is optional.  If you choose the Double Bore Prep...this adds a dead lock prep.  (2) lock preps:
2 1/8" hole x 2 3/4" backset and it will be located 10" center-to-center above the standard standard bore lock prep.  This prep is a modifcation to the standard door and once the DL prep is done the door cannot be canceled, returned or exchanged.

...See downloads tab for more details on our hinge & lock locations.

Undercut:

3/4" (industry standard)...also maximum allowed for a fire door.

Door Handing &
Handing Chart:
LH (Left Hand) or RH (Right Hand) Swing (our doors are handed)
Click here to open our Handing Chart
Finish: A40 Galv Steel; Finish painting by others.
Fire Label Option:

Fire label is optional:
90 min B-label standard;
Optional 45-minute C-label; 3-hour A label

Packaged: Palletized & Shipped via Freight Carrier
 Note: For custom sizes or special order doors please contact our Customer Service dept at 888.634.3667.

Example of Door Order Size:
3-0 x 7-0 nominal Door Size = 35 3/4" x 83 1/8" Net (Exact) Door Size (on pull side)
All of our HM Doors are prefit, beveled and undercut.

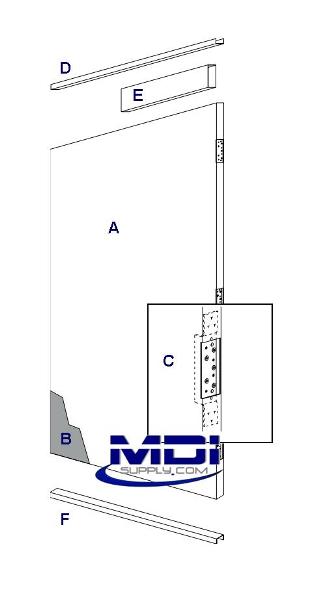

Door Construction (see images above):
A: Door Face Sheet
B: Honeycomb core
C: 10 Gauge high frequency dual purpose hinge reinforcement w/ return bend for added strength and rigidity. Field convertible to accommodate heavy weight hinges.
D: 18 gauge inverted top channel projection welded to the door skins and tack-welded at each corner.
E: 18 gauge box style door closer reinforcement.
F: 18 gauge inverted bottom channel projection welded to the door skins and tack-welded at each corner.

MDI Commercial Steel HM Doors:
Used mainly in applications suited for commercial steel doors

Images above for illustration purpose only and may not reflect actual product or finish

Click here for MDI Standard Hardware Locations Chart *

* Hinge and strike locations are noted on the frame. Door locations are 1/8" less.

Click here for our Swing Page to determine the handing of your door or frame.
