ABH A528B Door Edge Guard, Two Sided Beveled Edge, Standard Fastener Preps, US32D-Satin Stainless Steel Finish

ABH 528B Door Edge Guard - Door Edge Protection, Beveled Edge, Surface Applied (Non-Mortised)

ABH A528B Door Edge Guard protects the leading edge of 1-3/4 inch thick doors with a two-sided beveled design that requires no mortising. Constructed from heavy-duty 16 gauge 304 satin stainless steel, this non-mortise guard delivers durability and corrosion resistance in high-traffic environments. The beveled edge profile maintains a clean aesthetic while shielding against impact damage. Ideal for commercial and institutional applications where edge durability and appearance matter.

ABH 528B Edge Guard Features:

• Beveled Edged, Surface Applied (Non-Mortised)

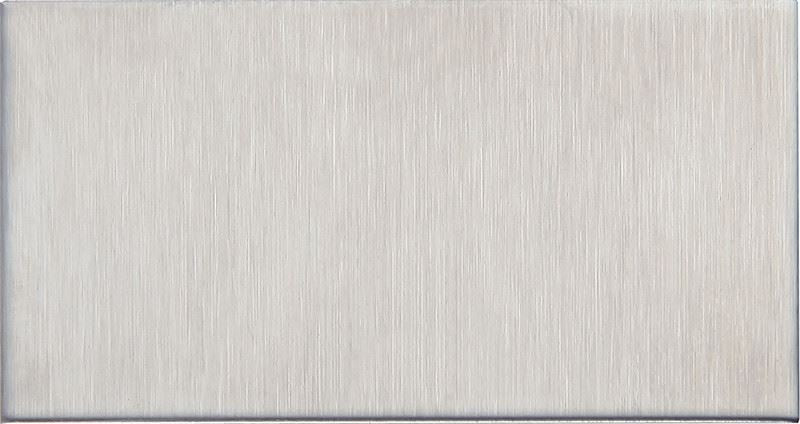

• .050" material thickness - 304 stainless steel x satin finish (US32D/630)
• Standard fastener preps inlcuded (as shown in image)
• Fasteners provided: #6 x 5/8" Phillips flat head, undercut sheet metal screws
• Average weight per unit = 2.5 lbs
• For use on 1 3/4" thick doors
• Length dimensions are cut to exact length:
  • 3'-6" = 42"
  • 6'-8" = 80"
  • 7'-0" = 84"
  • 8'-0" = 96"
    • For special order lengths, please contact MDI to request a quote.

ABH 528B Fire Rating:

• ABH edge guards come standard with the UL mark to designate fire rated for use on:
  • Wood or plastic-covered wood composite fire doors rated up to and including 1-1/2 hours
  • Hollow metal, steel-covered, composite type fire doors rated up to and including 3 hours

ABH 528B Options:

• Custom Leg sizes are available
• Custom door thicknesses are available
• Other finishes are available
  • Contact MDIsupply.com for special price quotes.
