Securitron DPS - Door Position Switch
Enables access control systems to monitor the state of a door - in the open or closed position. These switches can imitate signals to XDT delayed exit logic times & DPA door prop logic times.
This unit promotes safety and loss prevention at ancillary exits for healthcare, commercial and retail facilities.
DPS-W Concealed Door Position Switch for Wood Doors Both components require drilling a 3/4" [19mm] diameter hole in the door and frame directly opposite one another. The DPS-W style is a Normally Closed switch (SPST). The distance depends on the door type and gap between the door and frame but is in the 1/2"-3/4" [12-18mm] range. Includes a magnetic switch and a cylindrical permanent magnet.
DPS-M Concealed Door Position Switch for Metal Doors Both components require drilling a 3/4" [19mm] diameter hole in the door and frame directly opposite one another. The large magnet is needed to overcome the shielding effect of a steel door. The DPS-M style is a Normally Closed switch (SPST). The distance depends on the door type and gap between the door and frame but is in the 1/2"-3/4" [12-18mm] range. Includes a magnetic switch and a cylindrical permanent magnet.
Standard Features of the Securitron DPS - Door Position Switch:
-
Mated magnetic switch and cylindrical magnetic contact
- Recesses into door and frame
- 3/4"[19mm] round installation, 15/16"[23.81mm] deep
- Provides normally closed SPST switch
- Works with door gap up to 3/4"[18mm]
- Larger cylindrical magnet counters shielding effect of steel
- Factory MagnaCare® lifetime replacement, no-fault, no questions asked warranty
-

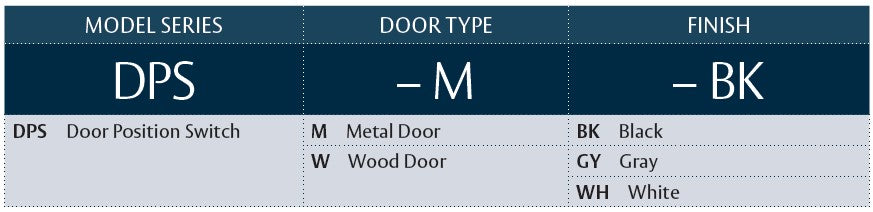

Door Types:
-
Available Finishes:
- Matte White
- Black Anodized
- Gray
