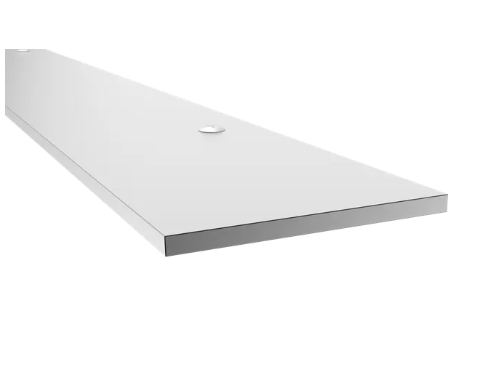

Pemko 357 11 Gauge Security Astragal x 7'-0"
The Pemko 357 Security Astragal one of the most common astragals used in the openings industry.
The 357 Overlapping Meeting Stile System is a high-quality solution for double-door entryways. It prevents drafts, light, smoke, and moisture from infiltrating while providing a seamless seal between the doors at their meeting stiles. It is custom cut to size and can be used with optional Silicone Teardrop Weatherstrip for better sealing properties. This system is compliant with smoke, fire, and air infiltration standards. This astragal can be leadlined by special order. It also can be field-trimmed by the installer for a perfect fit.
The Pemko 357 Flat Security Astragal is Certified UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies.
Features & Benefits of the Pemko 357 Security Astragal:
- Base Material: 11 Gauge
-
Door Edge: Used on Square & Beveled Edge Doors
- Fasteners: Sheet Metal Screw #10 x 1"
-
Handing: Non-handed
-
Overall Height: 1/8"
- Application: Applied to the face of a door
-
Purpose: Covers gap between the door and jamb, full height
-
Prevention: Prevents prying and manipulation
| Benefits: |
- Increases security by making it more difficult to pry the door open
- Covers gaps between pairs of doors
- Help save energy by sealing gaps
- Decreases noise levels between different areas of a building
|

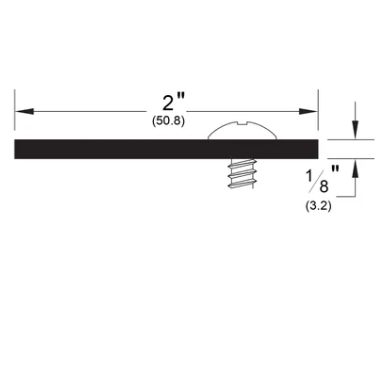

| Size: |
Length: 84"
Profile Width: 2"
Thickness: 1/8" (11 Gauge) |
| Handing: |
Non-Handed |
| Fasteners: |
Sheet Metal Screw #10 x 1"
Surface mounted to the face of the door
|
| Packaging: |
Clear poly bagged |
| Field Modification: |
Can be field trimmed to meet your specific size |
| Finish: |
- Clear Anodized Alum
- Galv Steel
- Satin Stainless Steel (#4)
|
| Item #: |
PEM-357__-84 |
| Brand: |
Pemko |
| |
|
* Should be used on beveled edge doors.
