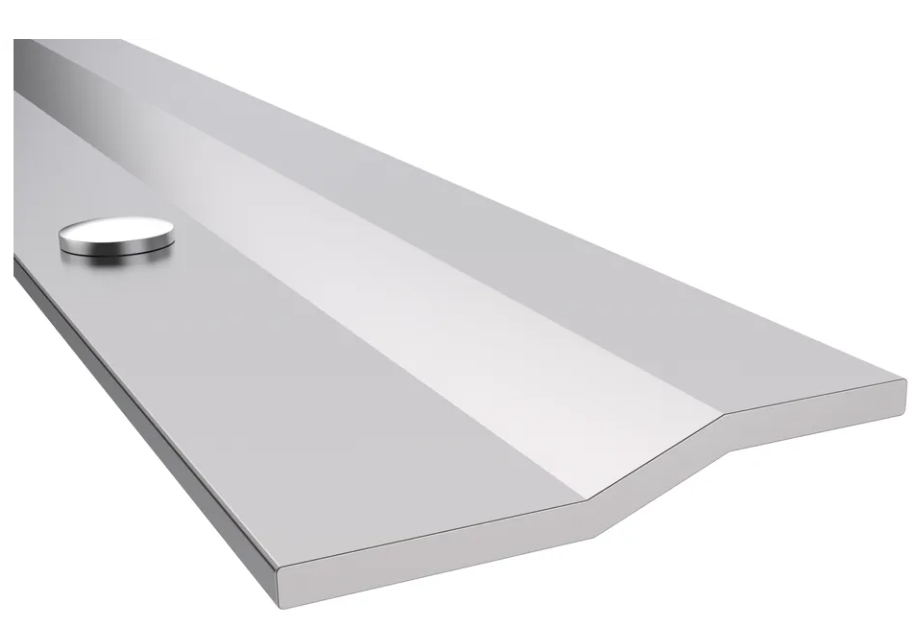

Pemko 3572SP 10 Gauge Offset Security Astragal x Galv Steel
The Pemko 3572 Security Astragal one of the most common astragals used in the openings industry.
The 3572 Offset Security Bar is designed for single, outswing wood or metal doors. It covers the gap between the door and jamb, providing enhanced security by preventing prying and manipulation. Made of high-quality 10 gauge steel, and can be field-trimmed by onstaller for a perfect fit. This custom-cut product can be installed on fire doors and is approved by major school districts.
The Pemko 3572 Offset Security Steel Astragal is Certified UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies.
Features & Benefits of the Pemko 3572 Secuirty Steel Astragal:
- Base Material: 10 Gauge Galv Steel
-
Door Edge: Used on Square, Bevel, Bullnose Doors
-
Fasteners: 1/4 x 20 Thru Bolt/MS
-
Handing: Non-handed
-
Overall Height: 3/16"
- Application: Applied to the face of an outswing door
-
Purpose: Covers gap between the door and jamb, full height
-
Prevention: Prevents prying and manipulation
| Benefits: |
- Prevents prying and damage to exterior doors
- Excellent for classroom doors opening onto exterior walkways
|

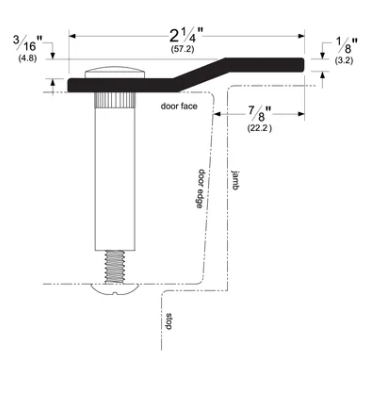

| Size: |
Length: 96"
Profile Width: 2 1/4
Thickness: 1/8" (or 10 gauge) |
| Handing: |
Non-Handed |
| Fasteners: |
1/4 x 20 Thru Bolt/MS
Surface mounted to the face of the door with security thru-bolts
|
| Packaging: |
Clear poly bagged |
| Field Modification: |
Can be field trimmed to meet your specific size |
| Finish: |
- Galv Steel.
- Other finishes available by special order.
|
| Item #: |
PEM-3572SP-96 |
| Brand: |
Pemko |
| |
|
* Should be used on beveled edge doors.
