Pemko 317 L-shaped Door Bottom w/ EPDM Buld Gasket

Pemko 317 L-shaped Door Bottom w/ EPDM Buld Gasket

Pemko Gasketing & Saddles

SKU: PEM-317AN-36

Availability : Usually Ships in 1-2 weeks.

$30.00
$198.00 $30.00
Sale Sold out
Shipping calculated at checkout.

Product Options:
Application: Surface Applied

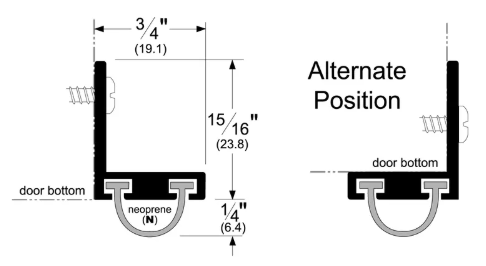

Bulb Height: 1/4" (see image at left)
Certifications: GREENGUARD Gold Certified & ANSI/BHMA A156.22
View full details

Pemko 317 L-shaped Door Bottom w/ EPDM Buld Gasket Information

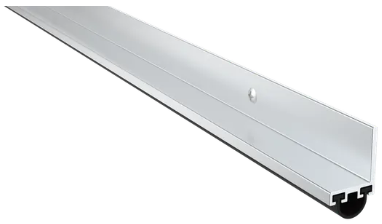

Pemko 317_N is an L-Shaped Door Bottom w/ EPDM Bulb
The 317_N Series is an L-shaped specialty door bottom equipped with an EPDM bulb, supplied in NET length as ordered, and featuring an aluminum casing with a .250" neoprene bulb seal. Suitable for various applications, such as meeting stile gaskets, it effectively helps prevent the infiltration of drafts, dust, water, and light.

»  BUYER NOTE:  All sizes: once ordered they cannot be canceled, returned or exchanged.

Features, Benefits, Specs & Certications:

  • Supplied NET length (as ordered).  Can be field-trimmed.
  • Aluminum casing with a .250" neoprene bulb seal
  • Helps prevent the infiltration of drafts, dust, water, and light
  • Base Material: Aluminum
  • Fasteners: PHSMS #6 x 5/8"
  • Maximum Length: 185"
  • Minimum Length: 24"
  • Overall Height: 1 3/16"
  • Width: 3/4"
  • GREENGUARD Gold Certified
  • ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
