Pemko 29326_NB Door Bottom Surface Sweep w/ Nylon Brush Insert x Concealed Fasteners

Features of the Pemko 29326_NB Door Bottom Surface Sweep w/ Nylon Brush Insert with Concealed Fasteners:

The 29326_NB Door Bottom Sweep features a concealed fastener design, a 180 degree retainer, and a 5/8" brush seal. It effectively blocks dust, light, fire, smoke, and insects. The aluminum casing with a snap-on cover adds durability and convenience. Available in various aluminum anodized finishes.  The sweep can be filed-trimmed for an exact fit.

• Contains compressed nylon filaments compressed in an aluminum retainer.

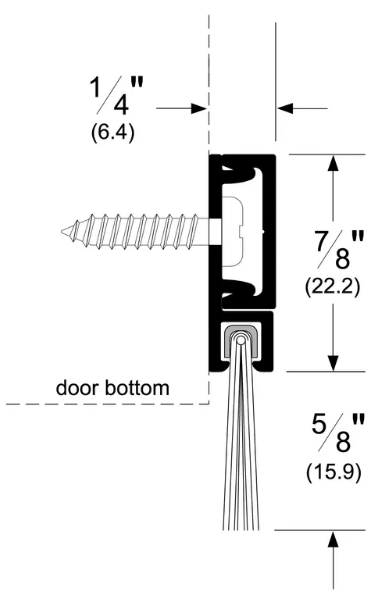

• Nylon brush is .625" high, the casing is .875"; and the aluminum snap-on cover is .875" high.
• Brush is highly flexible from -40°F to a melting point above 400°F.

• Drilled with slotted holes for adjustment.
• For hollow metal and wood door applications.
• Use on overhead, section, sliding, and automatic doors.
• The aluminum snap cover conceals mounting screws to provide a clean aesthetic appearance.
• Cover snaps securely into place to prevent vandalism.
• Smooth gliding brushes automatically adjust to slightly uneven floors.
• UV is stable, dependable, long-lasting, and cost-effective.
• Naturally repels rodents and spiders.
• Brush seals reduce the infiltration of smoke, fumes, weather and light.
• GREENGUARD Gold Certified.
• UL 4L10 listed.
• UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives.
• UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies.

• ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems.

Specifications of the Pemko 29326_NB Door Bottom Surface Sweep w/ Nylon Brush Insert x Concealed Fasteners:

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 185"
• Minimum Length: 24"
• Overall Height: 1 1/2"
• Width: 1/4"
• Finish
  • A-Mill Finish Aluminum
  • D-Dark Bronze Anodized Aluminum
  • BSP-Black Suede Powder Coat
  • WSP-White Suede Powder Coat

Availability:

• Usually ships in 1-2 weeks.
