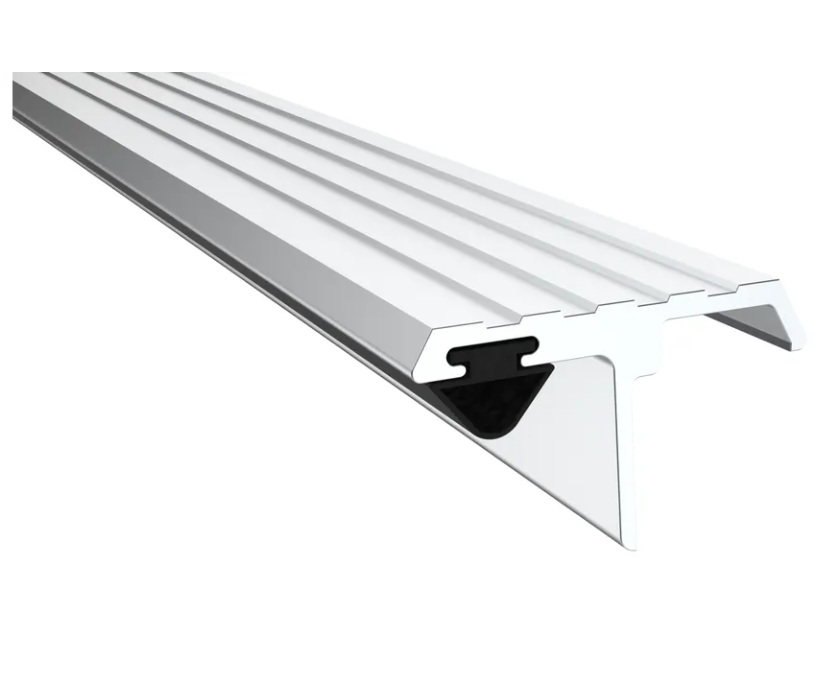

Pemko 355CS Surface Mount T-Astragal with Silicone Insert x Clear Anodized Alum
Standard with Silicone (S) insert, but available with Eco-V (V), Pile brush (P), PemkoPrene (PK) insert.
The Pemko 355CS T-Astragal is favorite among Door Service Techs to seal gaps that ar etoo large at the meeting stiles of double doors.
The 355 is a surface-mounted, T-shaped Astragal designed for installation on single active door of double door openings. It effectively seals the gap between the doors, preventing infiltration of smoke, sound, light, drafts, and insects. Made with a high-quality clear anodized aluminum casing, this astragal is durable and resistant to extreme environments.
The Pemko 176 series threshold is a barrier free (ADA Compliant), BHMA Certtified threshold and is UL Listed.
Features & Benefits of the Pemko 355CS T-Astragal:
- Surface mounted
- Applied to single active door in a pair of double doors
- Creates a continuous seal
- Seals the gap between paired doors by compressing the seal
- Installation on fire doors must meet NFPA 80 requirements
- Door coordinator needed when both doors are active
- Prevents the infiltration of smoke, drafts, insects, light, and sounds
| Compliance: |
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
|

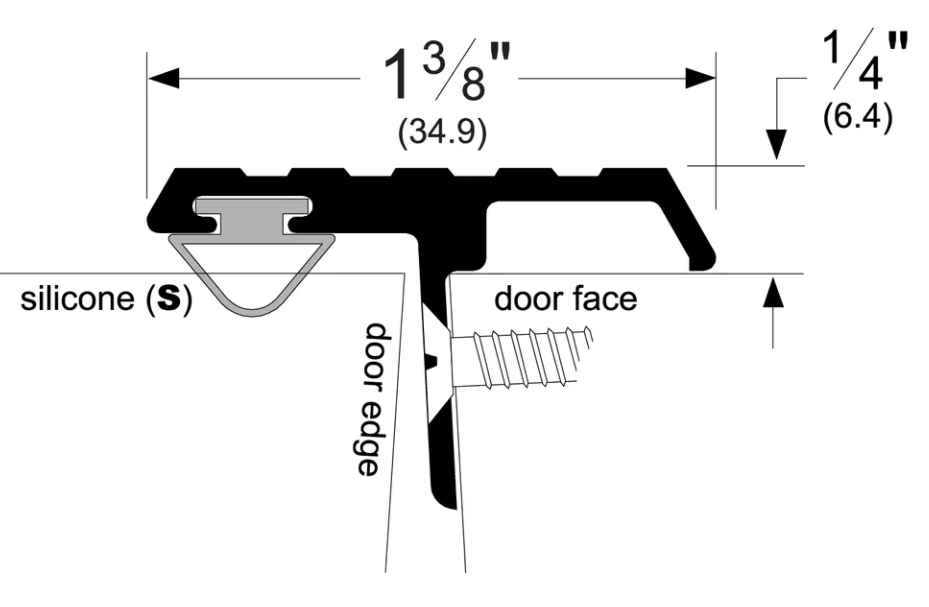

| Size: |
Length: 84"
Profile Width: 1 3/8"
Height: 1/4" |
| Handing: |
Non-Handed* |
| Fasteners: |
Sheet Metal Screw #8 x 1" |
| Packaging: |
Clear poly bagged |
| Field Modification: |
Can be field trimmed to meet your specific size |
| Finish: |
Clear Anodized Aluminum w/ BL-Black Silicone Insert
Note: Other finishes are available by special order. |
| Item #: |
PEM-355CS-84 |
| Brand: |
Pemko |
| |
|
* Should be used on beveled edge doors.
