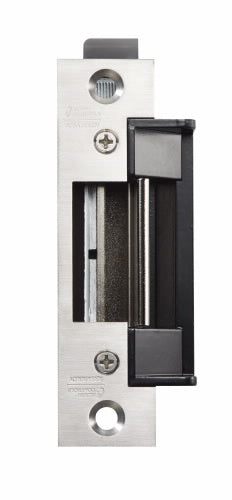

Alarm Controls AES-100 Heavy Duty Electric Strike, for use with Cylindrical Locksets, US32D-Satin Stainless Steel

Alarm Controls AES-100 Heavy Duty Electric Strike, for use with Cylindrical Locksets, US32D-Satin Stainless Steel

SKU: SKU:AC-AES-100-630

Availability : Usually ships the next business day

Regular price $129.00
Regular price $395.00 Sale price $129.00
Sale Sold out
Shipping calculated at checkout.
Finish: US32D/630 - Satin Stainless Steel
View full details

Alarm Controls AES-100 Electric Strike
Designed for heavy-duty applications, the all-in-one AES-100 offers dual voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8" to 3/4" throw in steel, wood or aluminum frames.

Details and product specs of the Alarm Controls AES-100 Heavy Duty Electric Strike:

Warranty: Factory Limited Lifetime Limited Warranty
Features:

BHMA Grade 1, 1,500 lb. static strength
Factory tested to 500,000 cycles
UL 1034 Burglary resistant
Field selectable, fail secure/fail safe
Dual voltage 12/24VAC or VDC
Strike Depth 1-1/2"
Fully reversible for right or left hand doors
Electric strike kit includes:
  – AES-100 strike body
  – 4 7/8” round corner faceplate
  – 4 7/8” square corner faceplate
7-15/16" round corner faceplate (optional)...Model number STR00004
Current draw: 12VAC @ 130mA, 24VAC @ 70mA
Current draw: 12VDC @ 210mA, 24VDC @ 105mA

Standard Functions: For cylindrical locksets with 5/8" to 3/4" throw in steel, wood or aluminum frames.
Finish:

US32D/630 - Satin Stainless Steel

Certifications:

Grade 1
UL: UL1034

Fire Rating: None.  This electric strike is not for use on fire rated doors.
Mfg Model #: AES-100
MDI Supply Item #: AC-AES-100-630
Packaged & Sold: Individually
  Alarm Controls Logo



Alarm Controls AES-100 Electric Strike
Designed for heavy-duty applications, the all-in-one AES-100 offers dual voltage and field selectable fail secure/fail safe operation. Deep latch cavity accommodates cylindrical locksets with a 5/8" to 3/4" throw in steel, wood or aluminum frames.

Downlaods for the Alarm Controls AES-100 Heavy Duty Electric Strike:

Catalog: Catalog Section - AES-100 Electric Strike
Instructions:

Instruction Sheet - AES-100 Electric Strike
