Pemko 307BSPV Surface Door Sweep, 36" Black Powder Coat Finish with Black Vinyl Insert Information

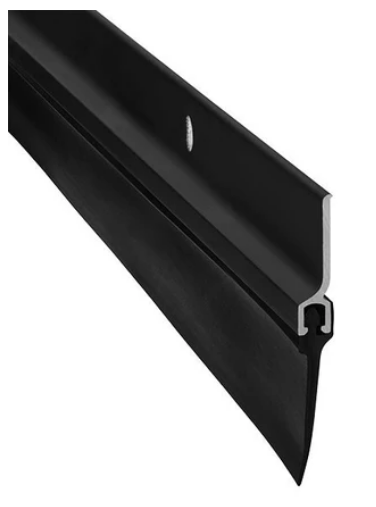

Pemko 307BSPV Black Finish Surface Door Sweep
The 307 Series Surface Plate Rubber Door Sweep is designed to insulate and prevent infiltration of moisture, fire, smoke, sound, and light. This door sweep features an Eco-V (Vinyl) or PemkoPrene seal and is fire and smoke rated. It can be used to seal up to a 1" gap between the door and threshold or floor surface. The sweep is surface mounted to the face of the door and comes with installation instructions and screws.
NOTE:
This sweep can be field-cut by installer to fit any size door.
APPLICATION:
To be surface applied to the face of a doors at the bottom to close the gap between the bottom of the door and
the saddle or floor.
Details and product specs of the Pemko 307BSPV Surface Door Sweep:
|
Material: |
Aluminum retainer w/ vinyl seal insert |
|
Width x Height |
1/4" (6.4 mm) x 7/8" (22.2 mm) |
|
Insert Height: |
1" (25.4 mm) |
|
Total Height: |
1 7/8" (including insert). |
|
Finish Available: |
BSPV - Black Suede Powder Coat Finish w/ Black Vinyl Insert |
|
Available Sizes: |
36" (can be field trimmed to size) |
|
Mfg Model #: |
307BSPV |
|
UPC Code: |
N/A |
|
MDI Supply Item #: |
PEM-307BSPV |
|
Packaged & Sold: |
Individually |
Pemko 307BSPV Surface Door Sweep - Black Finish x Black Insert
NOTE:
This sweep can be field-cut by installer to fit any size door.
| DOWNLOADS: | |
| Cut Sheet: | Click here for a cut sheet of the Pemko 307BSPV sweep. |
| Installation Instructions: | Click here for installation instructions. |
