Pemko 307AV Surface Door Sweep, Mill Finish Alum with Gray Vinyl insert

Pemko 307AV Surface Door Sweep
Door sweeps are surface applied to the face of a door. They are commonly used on the exterior of out-swing doors. Door sweep channels are available in several styles with materials based on your application. The inserts for door sweeps allow customers to choose from vinyl, neoprene, nylon brush and pile depending on the application.

NOTE:
This sweep can be field-cut by installer to fit any size door.

APPLICATION:
To be surface applied to the face of a doors at the bottom to close the gap between the bottom of the door and
the saddle or floor.

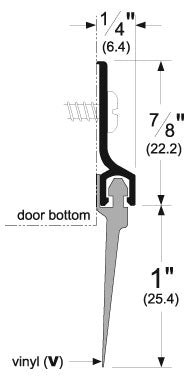

Details and product specs of the Pemko 307AV Surface Door Sweep:

Material:	Aluminum retainer w/ vinyl seal insert
Width x Height	1/4" (6.4 mm) x 7/8" (22.2 mm)
Insert Height:	1" (25.4 mm)
Total Height:	1 7/8" (including insert).
Finish Available:	AV - Mill Finish Aluminum with Gray Vinyl insert
Available Sizes:	36", 48" (can be field trimmed to size)
Mfg Model #:	307AV
UPC Code:	UPC 086787042563
MDI Supply Item #:	PEMKO-307AV
Packaged & Sold:	Individually

Pemko 307AV Surface Door Sweep
Door sweeps are surface applied to the face of a door. They are commonly used on the exterior of out-swing doors. Door sweep channels are available in several styles with materials based on your application. The inserts for door sweeps allow customers to choose from vinyl, neoprene, nylon brush and pile depending on the application.

NOTE:
This sweep can be field-cut by installer to fit any size door.

DOWNLOADS:
Cut Sheet:	Click here for a cut sheet of the Pemko 307AV sweep.
Installation Instructions:	Click here for installation instructions.
