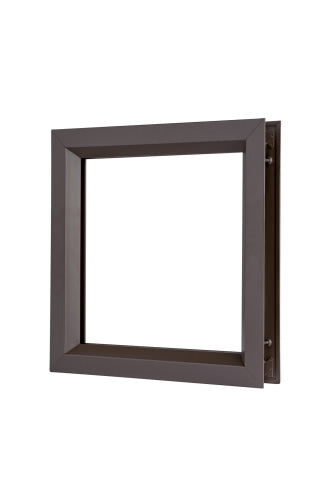

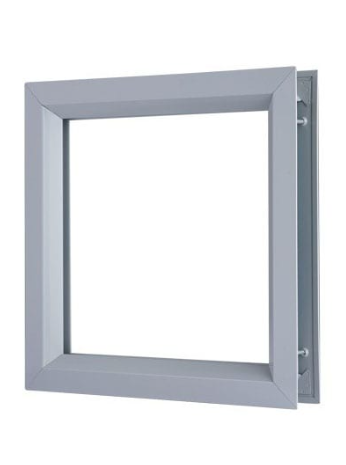

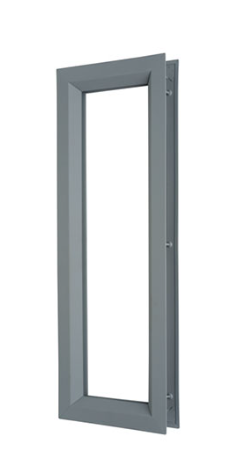

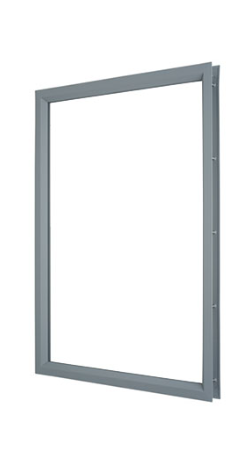

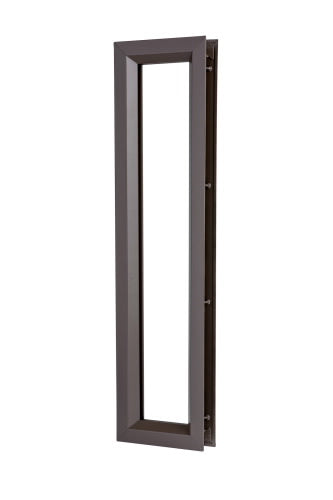

Rockwood LT-B1 Vision Lite Kit, Galv Steel, For 1/4" Glass, For 1 3/4" Thick Doors

Rockwood LT-B1 Vision Lite Kit, Galv Steel, For 1/4" Glass, For 1 3/4" Thick Doors

The LT-B1 (3/8" glazing pocket), Low Profile Beveled Lite Kits are for use with glazing material with wood or metal doors and feature a wide viewing angle as well as a hemmed design that is ideal for clean environments.

Features of the Rockwood LT-B1 Vison Lite Kit:

• Base Material: Galvannealed steel
• Fasteners: #8 X 1 3/4" OH SMS (included)
• Size:
  • Viewable Glass Size = Order Size Minus 2"
  • Glass Size = Order Size Minus 1"
  • Door Cut Out Size is the Order Size
• Door Type (for use with): Wood, Metal
• Door Thickness: For use with 1 3/4" thick doors only
• Glass: 1/4" thick glass is required.  Glass supplied & installed by others.
• Standard Finish: Dark Gray Primer or Dasrk Bronze (Dark Brown)
• Optional Finishes: Other finishes are available by special order (Beige, Black, White, Red, and more.  Please contact MDI for a special price quote.
• ADA Compliant
• Fire rated
• Made in the USA.

Certifications:

• Classified in accordance with UBC code standard 7-2 for positive pressure
• UL Listed for use on fire doors.

Availability:

• Usually Ships in 3-5 Business Days

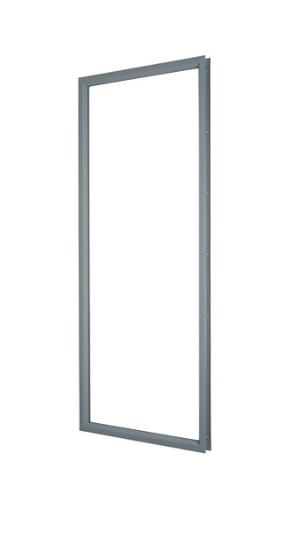

• Full Lite Vision Kits (24" x 60") can only ship via LTL Freight.  UPS and Fedex (packages) will not take this size item.
