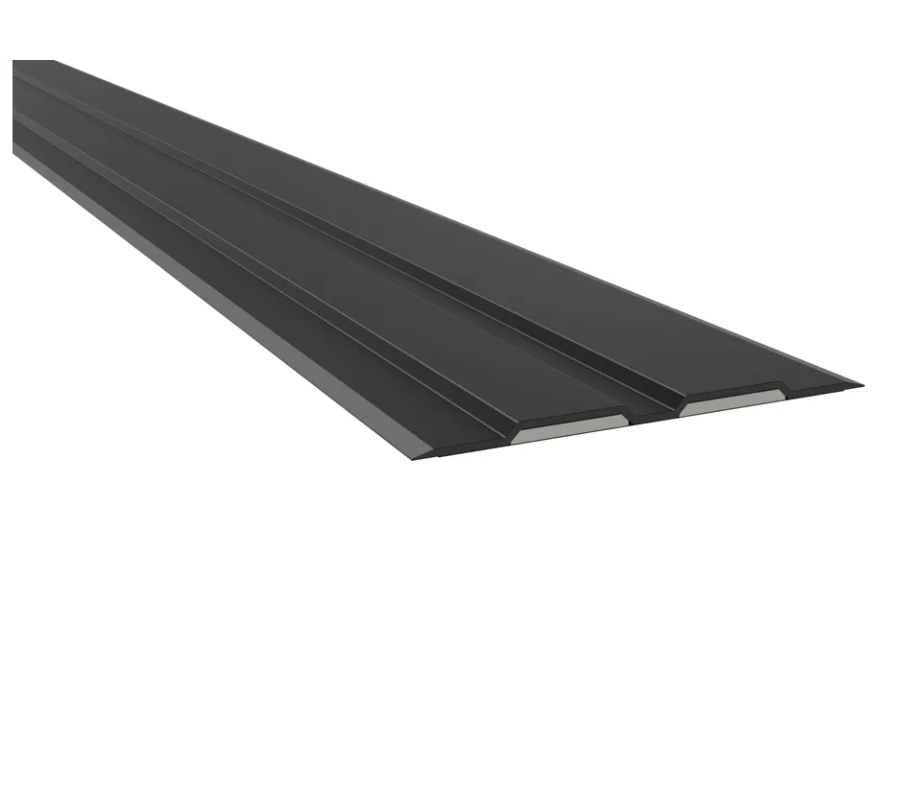

Pemko EZgap XG10 Series Excessive Gap Gasketing
The EZgapTM XG10 Series intumescant gasketing is a single piece, flexible solution for excessive gaps ranging from 3/32" to 1/4". The EZgap product attaches to the door frame with peel and stick adhesive with no additional hardware, and its small size makes it easy to transport and store.
Features & Benefits of the Pemko EXgasp XG10 Excessive Gap Solution:
- Surface-applied intumescent gasket
- Melts in the same temperature range as its flexible graphite intumescent core beings to expand
- Excessive gap solution that fits irregular door gaps between 3/32" - 1/4"
- UL10C approved for 45 minute fire rated wood doors

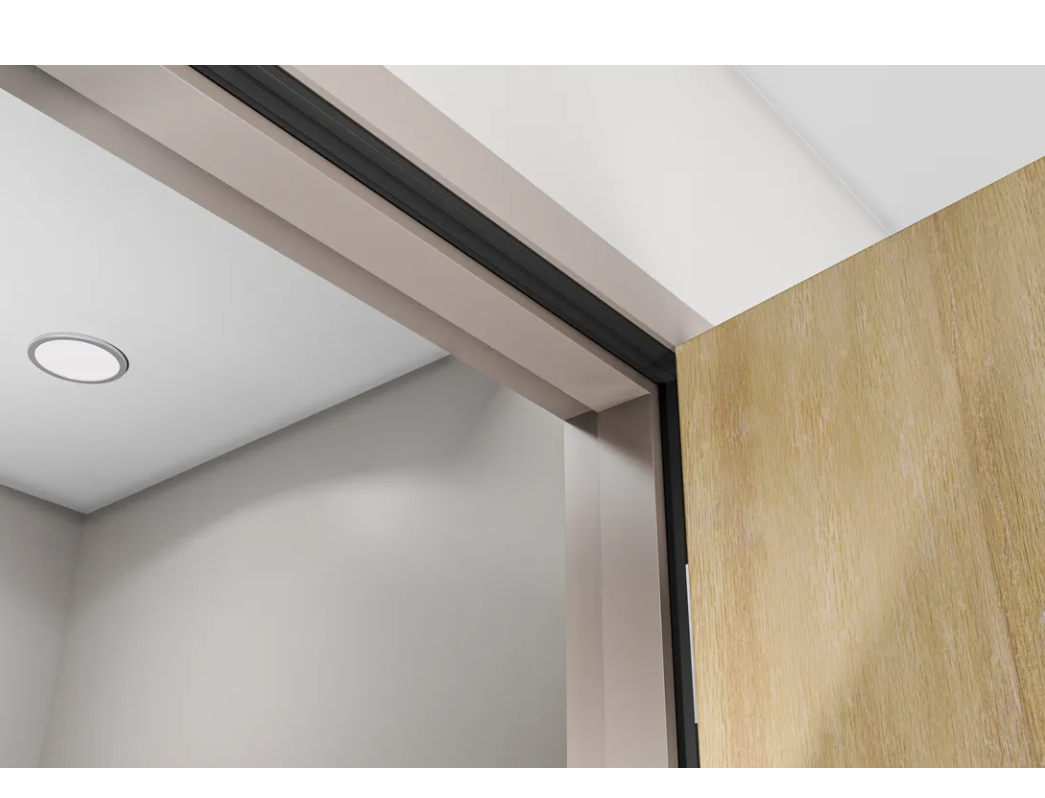

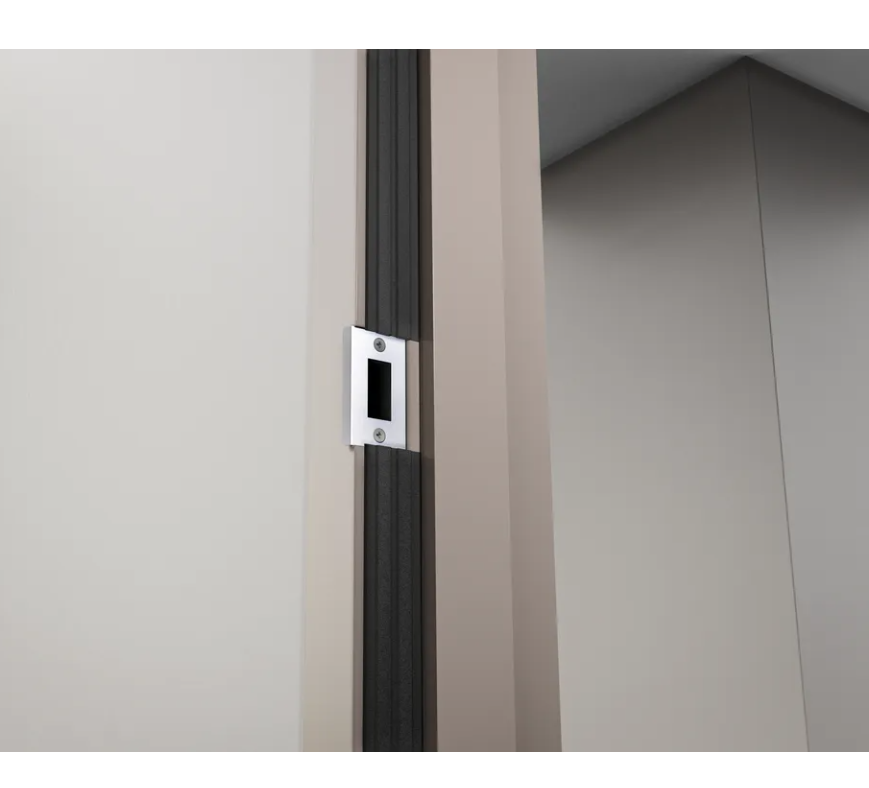

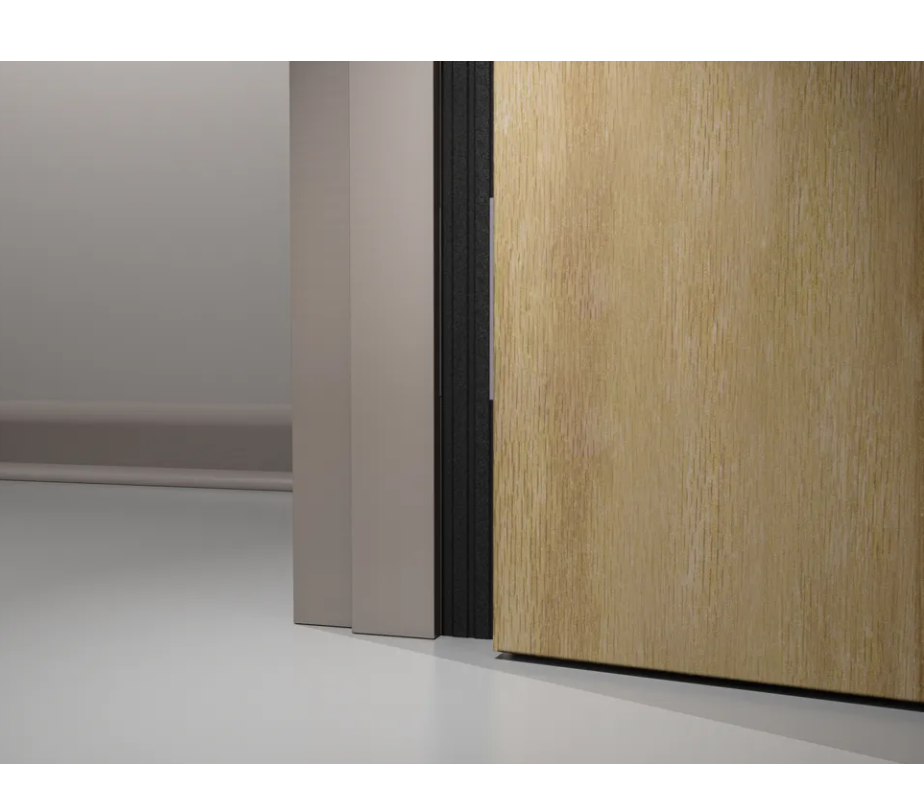

- Ideal for independent use on latch edge, hinge edge, or header, or, as a full perimeter application
- Supplied with self-adhesive tape for fast, easy installation
- Can be cut to desired length in field with heavy scissors
- Semi-rigid PVC casing
- No metallic fasteners needed for installation
- Good resistance to water and humidity
- Eliminates costly expense of replacing doors
- Quick, easy solution to fire door inspection issues
- Meets fire code requirements
- Fast Installation
- Packed in small box that is easy to transport and store
Specifications of the Pemko 315SSN Surface Door Sweep:
- Base Material: Graphite and Flexible Elastomeric
- Gasketing Material: Intumescent
- Height: 1/16"
-
Width: 7/16"
-
Mounting Location: On the Door Frame
-

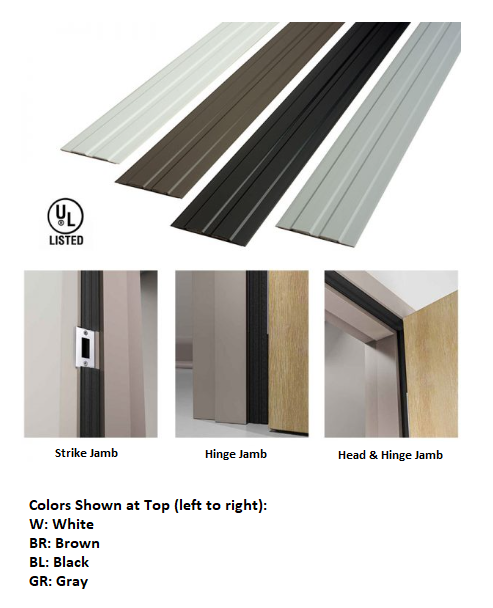

Finish:

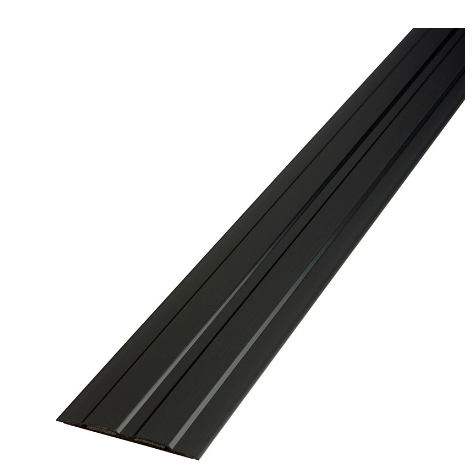

- BL-Black

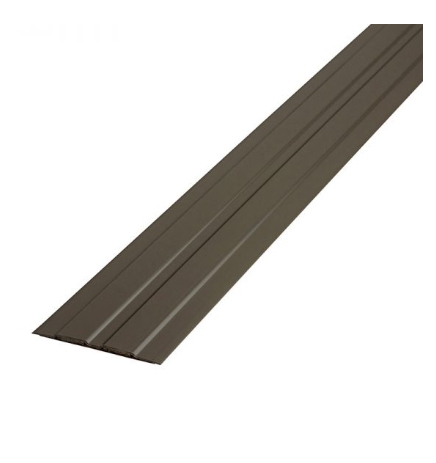

- BR-Brown
- GR-Grey

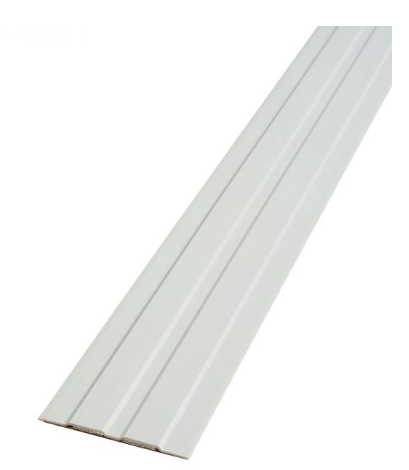

- W-White
Certifications:
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
Availability:
- Usually Ships in 1-2 Weeks
