Pemko XG2212_PK773 U-Shaped Door Shoe for Doors with Excessive Gaps

The XG2212_PK773 U-Shaped Door Shoe is designed to be used on single or pairs of doors with excessive gaps. It provides protection for the bottom of the door while sealing the gap to the floor. The kick-plate offers additional durability and can restore damaged doors. It comes in various aluminum finishes and sttandard lengths. Perfect for all door models, including hollow metal, composite, and wood or plastic doors.

Features of the Pemko XG2212_PK773 U-Shaped Door Shoe for Excessive Gaps:

• UL Classified for use on openings with gaps in excess of those outlined in NFPA 80.
• Suitable for use on gaps up to 1-1/2”.
• Meets UL10C requirements for 90-minute fire rated steel composite, hollow metal doors, wood and plastic-covered composite core single or pairs of doors.
• Aluminum easily cut and trimmed in the field.
• For use on doors that are 1 3/4" thick.
• Furnished with HSS90150XG and HSS2000 high-performing intumescent.
• End plate kit provided to finish off door edge.
• Replacement gasket is PK773BL (black) – available in 36- or 48-inch lengths.
• Replacement end plate kit is K450XG.
• Supplied net length (as ordered).
• Brings fire doors back to compliance with code.
• Easy to trim in the field.
• Eliminates costly expense of replacing doors.
• Quick and easy resolution to fire door inspection issues.
• Meets fire code requirements.
• Saves on installation time.

Specifications of the Pemko Features of the Pemko XG2212_PK773 U-Shaped Door Shoe with Excessive Gaps::

• Base Material: Aluminum
• Fasteners: PHSMS #6 x 5/8"
• Maximum Length: 48"
• Minimum Length: 36"
• Overall Height: 3 11/16"
• Width: 1 3/4"
• Finish

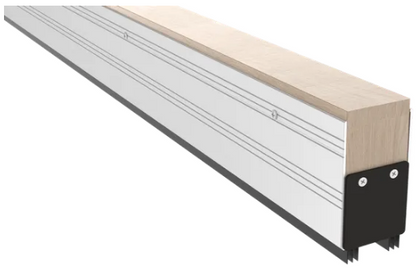

  • A-Mill Finish Aluminum

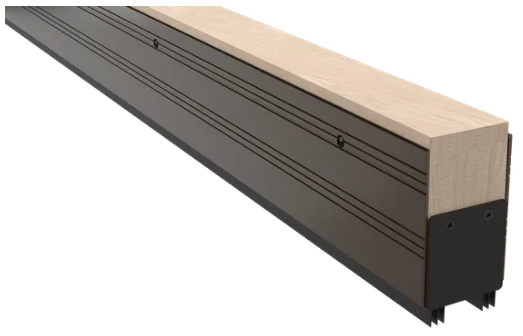

  • D-Dark Bronze Anodized Aluminum

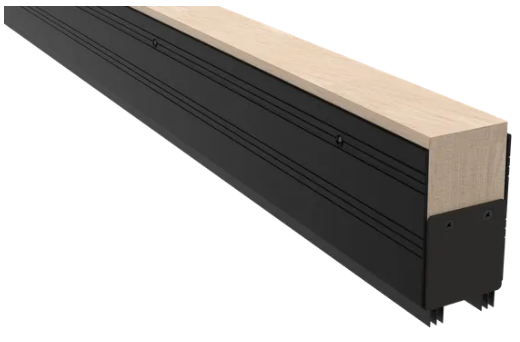

  • BSP-Black Suede Powder Coat

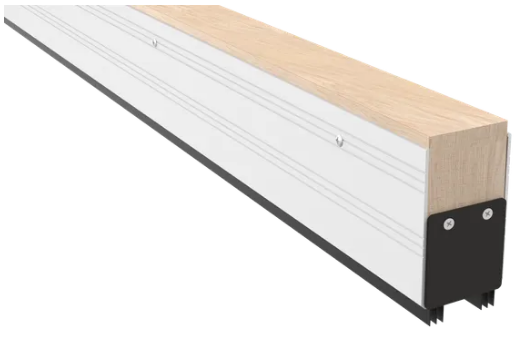

  • WSP-White Suede Powder Coat


Availability:

• Usually ships in 1-2 weeks.
