Pemko 151A Flat Saddle Threshold, 36" x 3" x 1/4", Mill Aluminum

Pemko 151A Flat Saddle Threshold, 36" x 3" x 1/4", Mill Aluminum

Pemko Gasketing & Saddles

SKU: PEM-151A-36

Availability : Usually Ships in 1-2 Days

$29.70
$29.70
Sale Sold out
Shipping calculated at checkout.
Features: Low Profile with a smooth top...can be used with an automatic door bottom to create a smooth, even sealing surface.

Click Here for Cut Sheet on Pemko 151 Saddle Threshold

View full details

Pemko 151A Flat Saddle Threshold, 36" x 3" x 1/4", Mill Aluminum Information

Pemko 151 Series Flat Aluminum Threshold, 3" Deep x 1/4" Height
Pemko Smooth Top Saddle Threshold 1/4in. x 3in.
Offset Saddle thresholds are commonly used to meet with an irregular floor surface.

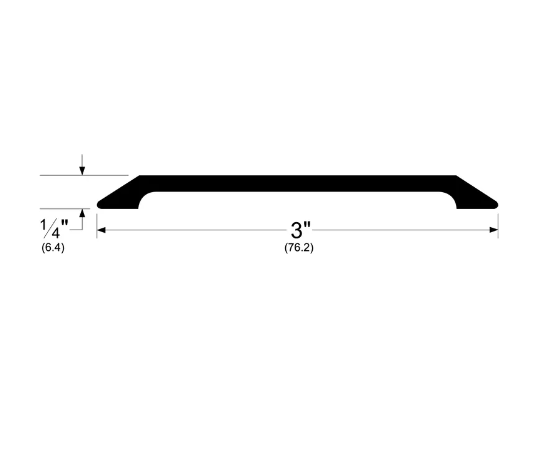

The 151 Flat Saddle Threshold is 3" wide and a symmetrical shape designed to span under a door, creating a smooth transition. It prevents the accumulation of mud, ice, and snow in crevices, ensuring straightforward maintenance. Additionally, it holds a fire rating and is accessible for wheelchairs and creates an even sealing surface when use with Automatic Door Bottoms.

  • MATERIAL: Aluminum
  • WIDTH: 3". Other sizes available by special order.
  • OVERALL HEIGHT: 1/4"
  • LENGTHS: 36″. Other sizes available by special order.
  • CERTIFICATIONS:  UL10C Positive Pressure, UL 4L10 Listed, ANSI/BHMA A117.1, ANSI/BHMA A156.21 Thresholds, ADA Compliant.
  • LOW PROFILE:  Can be used with an automatic door bottom to create a smooth, even sealing surface.
  • APPLICATION: Interior or exterior openings.
  • FASTENERS: SMS #10 x 1"
  • FINISH: A - Mill Aluminum



* Door undercuts vary so be careful if this is being installed under a door.
