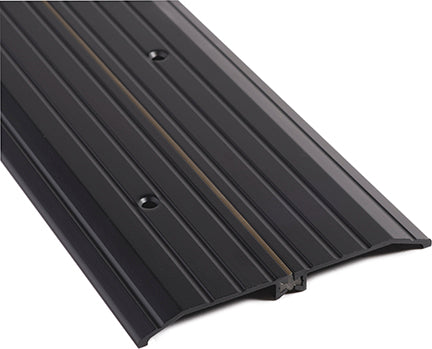

NGP 8426 Thermal Break Saddle Threshold, 6 1/8" Wide x 1/2" High

NGP 8426 Thermal Break Saddle Threshold, 6 1/8" Wide x 1/2" High

NGP - National Guard Products

SKU: NGP-8426-36

Availability : Usually Ships in 5-7 Business Days

$75.90
$75.90
Sale Sold out
Shipping calculated at checkout.

Product Options:
Size: 6 1/8" wide x 1/2" high
Certifications: ADA Complaint & ANSI/BHMA Certified
BUYER NOTE:: Once ordered this threshold cannot be canceled, returned or exchanged.

Click here for a Cut Sheet on the NGP 8426 Saddle Threshold

Click here for Installation on the NGP 8426 Saddle Threshold

View full details

NGP 8426 Thermal Break Saddle Threshold, 6 1/8" Wide x 1/2" High Information

NGP Thermal Break Aluminum Saddle Threshold

Item Series: 8426

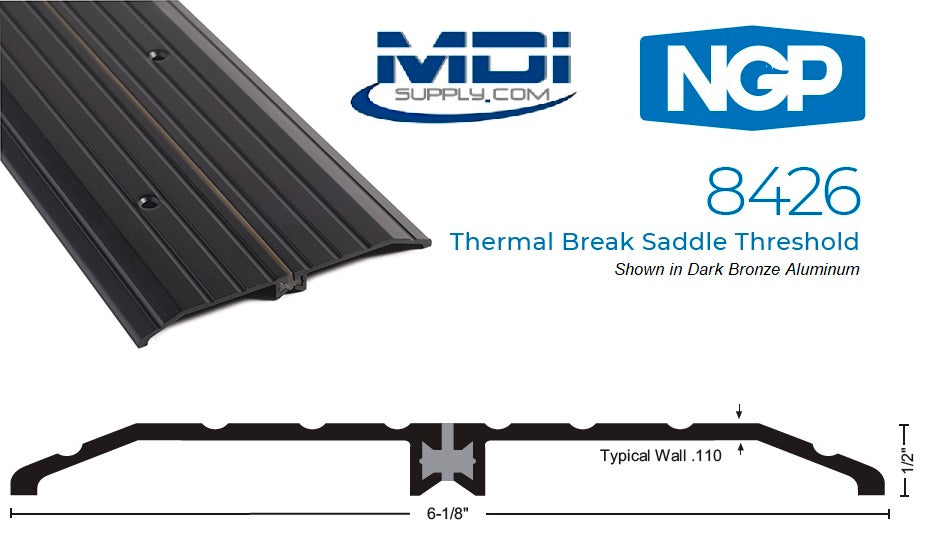

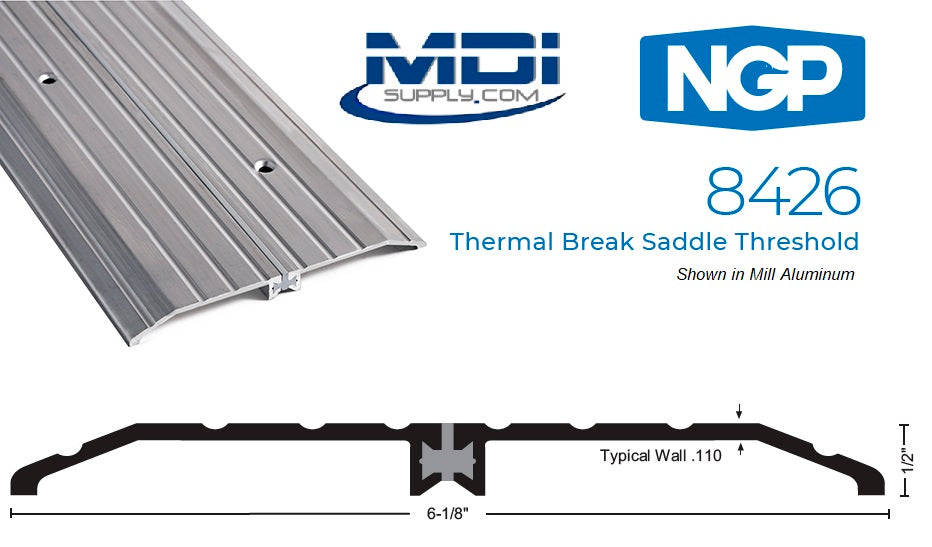

Item Size: 6 1/8" Wide x 1/2" High x Thermal Break

  • Aluminum alloy 6063, T5 temper
  • 6-1/8" wide x 1/2" tall
  • Fluted top
  • Features a rigid thermoplastic spline creating a separation to prevent the transfer of outside temperature and frost through the threshold
  • Typical wall thickness .110"
  • Weight: 1.00 lbs./ft.
  • #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
  • Sizes Available: 36", 48", 72". Other sizes are available by special order.  Please contact MDI to make a quote request.
  • Can be field trimmed to meet your exact length needs.

 Certification:

  • ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.

  • ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.

  • Available Finish:

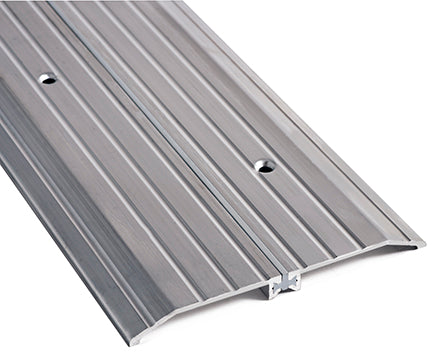

    - Mill Aluminum
    - Dark Bronze Aluminum

  • Lead-Time:
    - Usually Ships within 5-7 business days
