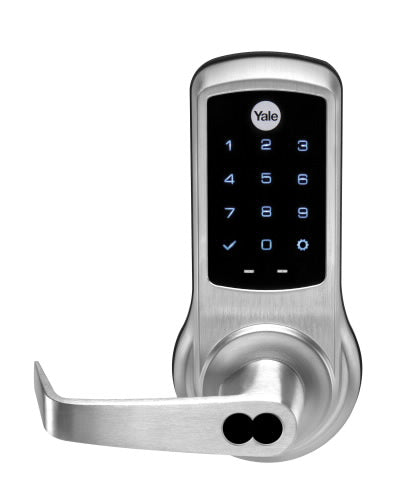

Accentra (formerly Yale) B-AU-NTB622-NR-SFIC (Less Core) NexTouch Series Stand Alone Keypad Cylindrical Lock, Touch Screen, Key Bi-Pass, US26D-Satin Chrome

Accentra (formerly Yale) B-AU-NTB622-NR-SFIC (Less Core) NexTouch Series Stand Alone Keypad Cylindrical Lock, Touch Screen, Key Bi-Pass, US26D-Satin Chrome

SKU: SKU:YALE-B-AU-NTB622-NR-SFIC-626

Availability : Usually Ships in 2-3 Business Days

Regular price $650.00
Regular price $1,999.00 Sale price $650.00
Sale Sold out
Shipping calculated at checkout.
Lever Style: AU - Augusta
Keyway: B-Best SFIC core by others
Finish: 626/US26D - Satin Chrome
View full details

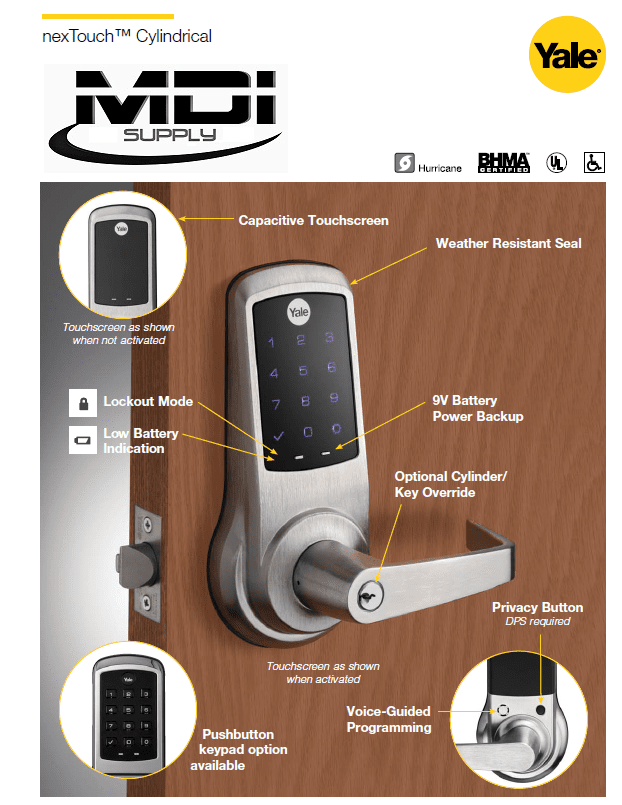

Yale B-AU-NTB622-NR SFIC NexTouch Series Touch Screen Key Pad Lock
Stand Alone Keypad Cylindrical Lock B AU NTB622-NR Provisioned for SFIC Key Bi-Pass

Yale, a trusted brand in both commercial and residential hardware, introduces nexTouch, an affordable and secure solution for small businesses. Rest easy knowing that only authorized personnel have access during the hours set by you. Connect your nexTouch locks with optional ZigBee or Z-Wave automation systems and benefit from the ultimate convenience of being able to monitor your business from anywhere. Contact MDI Supply for ZigBee or Z-Wave lock options.

Stand-alone operated locksets to consist of a Certified ANSI/BHMA A156.2, Series 4000, Grade 1 locking mechanism complete with backlit touchscreen used for access. Integrated locking units shall offer a single programming mode with a Master code and 255 User codes and allow for programming directly through the touchscreen interface. Lever design shall meet ANSI A117.1 Accessibility Guidelines with locking function(s) to be as specified in the hardware sets. Inside lever always free for open egress.

Details and product specs of the Yale B-AU-NTB622-NR Series Touchscreen Lock:

Brand: Yale
Product Group: Cylindrical Locks
Product Line: Stand Alone Keypad Access Lock
Design/Lever Trim: AU - Augusta
Finish Available:

626/US26D - Satin Chrome

Strike Plate: 497 - 4 7/8" ANSI
Keyway & Keying:

B-Best SFIC
Permanent SFIC core by others.

Door Prep & Backset: 2 1/8" bore through door x 2 3/4" backset.
Cylinder - Pin: SFIC By Others
Accepts all Small Format Interchangeable Cores (6 or 7 pin)
Lever Trim: B-AU - Augusta Style
Power: Battery-operated, with low power indicator, or hard-wired (9 Volt external power supply) option.  Blinking designation signals internal 4 AA alkaline batteries are low.
Programming: Menu access to voice guided programming available through touchscreen.
Touchscreen: Illuminated (backlit) Touchscreen that responds to human touch and returns to sleep mode after granting access.
Tones: Visual and tone playback confirmation with Silent Mode option.
Languages: Pre-programmed voice options: English (default), Spanish or French.
Pins: Installations are able to be programmed with up to 500 unnique PIN codes (users) and a master code for access to programming.
Modes: Auto-relock mode, passage mode or lockout mode (no touchscreen access, with key-override functions only) programmable through touchscreen interface.
Handing: Lock is handed but is also field reversible.
Fire Rating: UL Listed for use on fire doors up to 3-hour rating.
Weather Resistant: Yes.  Lock is weather resistant with gasket seal and is operational even in outdoor settings, in temperatures randing from -40°F to 140°F at 95% relative humidity.
Certifications: - Certified ANSI/BHMA Grade 1 / UL LIsted
- The nexTouch Series lever design meets accessibility guidelines of the Americans with Disabilities Act and the requirements of the Uniform Federal Accessibility Standards and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities, all requiring ease of accessibility.

- EPD and GreenCircle certification.
- Hurricane Certified
MDI Supply Item #: YALE-B-AU-NTB622-NR-SFIC-626
Warranty: NexTouch has a Factory three year limited warranty on the mechanical and electrical components, and a one year limited warranty on the finish.
UPC Code: N/A
   Yale Logo



Yale NTB622-NR AU NexTouch Series Touch Screen Keypad Lock
Stand Alone Keypad Cylindrical Lock AU NTB622-NR w/ Key Bi-Pass

Yale, a trusted brand in both commercial and residential hardware, introduces nexTouch, an affordable
and secure solution for small businesses. Rest easy knowing that only authorized personnel have access during the hours set by you. Connect your nexTouch locks with other ZigBee or Z-Wave automation systems and benefit from the ultimate convenience of being able to monitor your business from anywhere. Contact MDI Supply for ZigBee or Z-Wave options.

Stand-alone operated locksets to consist of a Certified ANSI/BHMA A156.2, Series 4000, Grade 1 locking mechanism complete with backlit touchscreen used for access. Integrated locking units shall offer a single programming mode with a Master code and 255 User codes and allow for programming directly through the touchscreen interface. Lever design shall meet ANSI A117.1 Accessibility Guidelines with locking function(s) to be as specified in the hardware sets. Inside lever always free for open egress.

Downloads for the Yale NTB622-NR Series Touchscreen Lock:

HM Door Template: Click here to download a template for a HM steel door.
Wood Door Template: Click here to download a template for a Wood door.
Instructions: Downloadable PDF Coming Soon.
Catalog: Click here to download the Yale NexTouch series catalog.
