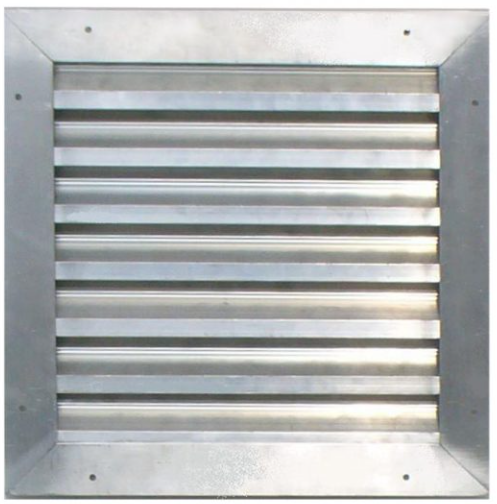

Air Louvers 1400A Storm-Proof Aluminum Louver Kit - for use in Exterior Doors
Air Louvers 1400A Storm-Proof Aluminum Louver Kit - for use in Exterior Doors
SKU: SKU:AIR-1400A-1212
Product Options:
Share
Air Louvers 1400A Storm-Proof Aluminum Louver Kit - for use in Exterior Doors Information
This storm-proof aluminum louver with water baffle features Z Blades at 1-5/8″ intervals, is suitable for exterior applications where weather protection is required.
NOTE 1:
This door louver is "storm-proof." It is NOT tested to any specific wind storm or rating. It is more weather-resistant. It's design to not allow water infiltration and can take a beating from the weather elements. But, depending on the wind pressure and the angle of the rain, water can possinbly get inside.
>>> If you require a Windstorm rated (certified) door louver, click here.
NOTE 2:
Once ordered, this item cannot be canceled, returned or exchanged.
Product Specifications of the Air Louvers 1400A Storm-Proof Louver Kit:
- Frame and Blades: .063 thick 6063-T5 Extruded Aluminum.
- Standard Finish: Mill Aluminum
-

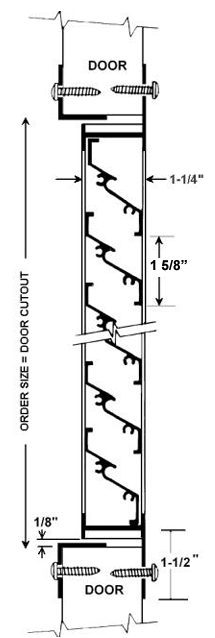

Construction:
- Louver: 1-1/4″ deep frame w/ Z-blades with water baffles at 1 5/8" intervals are screwed to the frame. Louvers are mechanically attached to the sturdy aluminum frame.
- 1400A Frame: 1 1/2" trim with reinforced mitered corners. Louver frame is screwed into the door from both sides.
- Door Thickness: 1-3/8″ to 1-3/4″
- Fasterners: #6-20 3/4" Hex Head screws to match finish (standard).
- Free Flow Area: 35% free area.
- Option:
- Screen: Aluminum Insect Screen.
- Fasteners: Torx security screws.
