Air Louvers 1500AHR Hurricane Rated Door Louver - Severe Windstorm Approved Louver

Air Louvers 1500AHR Hurricane Rated Door Louver - Severe Windstorm Approved Louver

Air Louvers Vision & Louver Kits

SKU: AIR-1500AHR-1212B

Availability : See Below

$383.90
$383.90
Sale Sold out
Shipping calculated at checkout.

Product Options:
BUYER NOTICE: This item is a made to order item and once ordered it cannot be canceled, returned or exchanged.
INSTALLER NOTE: Order Size Equals Door Cut-Out Size
Country of Origin: Made in the USA
Certification: WH Windstorm Approved / Hurricane-Rated

Click here to download a tech data sheet on the 1500AHR Windstorm Door Louver.

View full details

Air Louvers 1500AHR Hurricane Rated Door Louver - Severe Windstorm Approved Louver Information

Air Louvers 1500AHR Hurricane Rated Door Louver Kit - Meets up to 350 ft lb Impact Rating for Severe Windstrom Rating.

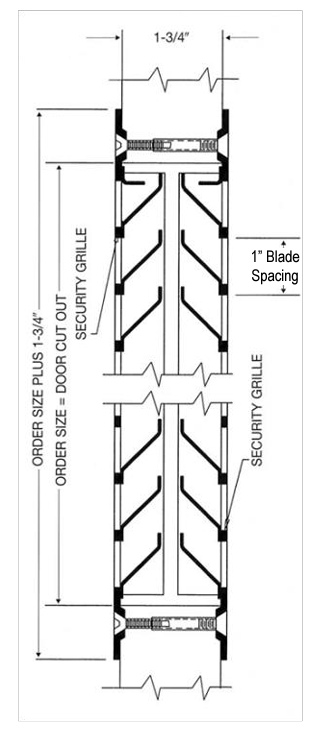

Inverted split Y louver with 1″ blade spacing features a 12 gauge security grille and two-piece thru-bolt louver design. 40% free area. Meets up to 350 ft lb impact rating for severe windstorm. Florida Building Code Approval. Made in the USA.

Application: Exterior windstorm rated doors.

Product Specifications

  • Frame and Blades: Zinc Plated/Galvanneal steel.
  • Standard Finish: B-Bronze powder coat.

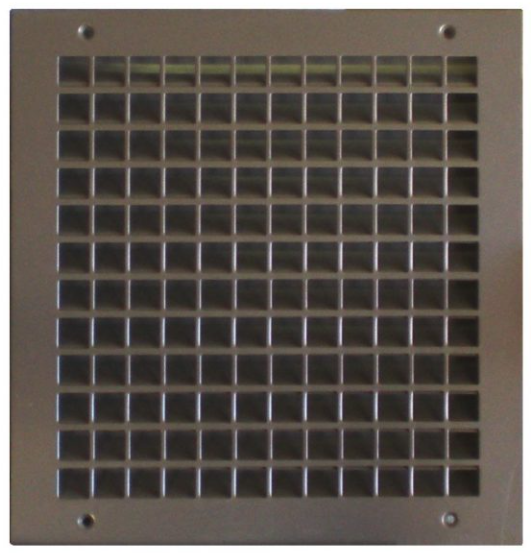

  • Construction: Louvers are mechanically attached to the sturdy welded frame. Security grilles with 13/16″ square openings are welded to both sides of the louver.
  • Mounting for 1-3/4″ Doors: Thru-bolt fasteners.
  • Material: 18 gauge galv steel frame and blades; 12 gauge CRS security grille.
  • Door: 1-3/4” thick. Door cutout = order size.
  • Fasteners: #8-32 Phillips head thru-bolts with blank head one side.
  • Free Flow Area: 40% Free Area.
  • Size: All sizes noted are "width x height."
  • Made in the USA

Availability:

  • 24" x 24" x Bronze Powder Coat:  Ships in 2-3 Days
  • 24" x 64" x Bronze Powder Coat:  Ships in 2-3 Days
  • All other sizes:  Will ship in 6-weeks after order.

Listings & Ratings:

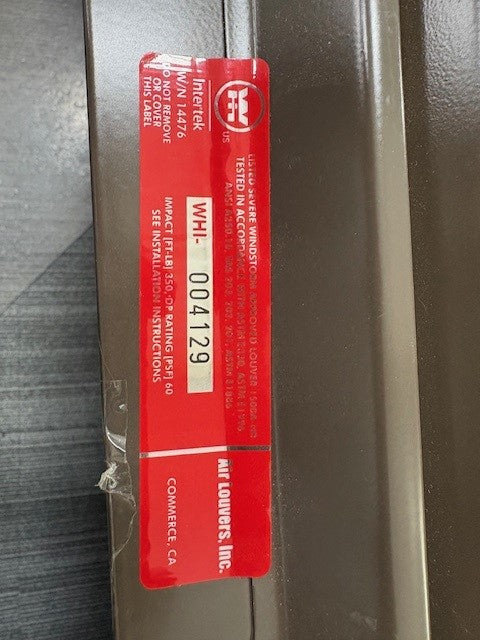

  • 1500AHR Severe Windstorm Approved Louver – Florida Building Code Approval File # FL 13341.
  • Approved for use in HVHZ: Yes
  • Approved for use outside HVHZ: Yes
  • Impact Resistant: Yes
  • Design Pressure: +60/-60
  • Other: Louver is only to be used as a component of an approved assembly.
  • Tested in Accordance with: ASTM E330, ASTM E1996, ANSI A250.13 TAS 203, 201, 202, ASTM E 1886 Impact (ft lb) 350 DP Rating (PSF) 60 Florida Building Code Approval File # FL13341

Note:
The maximum size of the 1500AHR is 24" x 64".
Special order sizes are available.  Please contcat MDI for a price quote.
