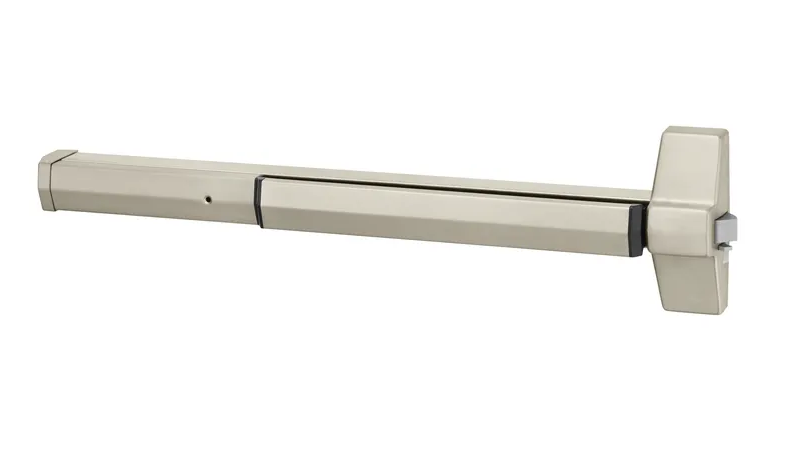

Accentra (formerly Yale) 7100 Rim Exit Device
The 7100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. Designed for application in high-use areas, the 7100(F) comes in a variety of finishes and can be combined with a variety of trims to match any desired style.
Features of the Yale 7100 series rim exit device:
- Designed for wide stile doors
- 3/4" throw deadlocking stainless steel pullman latchbolt
- Electroplated ferrous components provide corrosion resistance
-
Non-handed for easy installation
- For use on single swing doors.
- For use on metal, wood or composite door materials.
- UL Rated for Panic & Fire Rated (FEH-Fire Exit Hardware) - 7100/7100F
- Cerified ANSI/BHMA A156.3 Type 1 Grade 1 standards
- Windstorm certified (refer to local codes)
- Five year mechanical warranty on device.
Details and product specs of the Yale 7100 series rim exit device:
| Applications: |
Single swing doors;
Pairs of doors with removable mullions;
Wide stile aluminum, metal, wood or composite door materials |
| Door Thickness: |
1 3/4 standard |
Available Finishes:
|
US32D/630 - Satin Stainless Steel
|
| Rail Sizes: |
For use on doors 30" - 36" doors;
> For doors over 36" and up to 48", please contact MDI. |
| Projection: |
3 1/4" (83 mm) active; 2 3/4" (63.5 mm) dogged) |
| Fasteners: |
Machine screws or wood door screws standard for panic; sex nuts and bolts (SNB) supplied standard for fire exit hardware. |
| UL Listed: |
Yes, for use on labeled fire doors - Fire Exit Hardware (model 7100F) |
| Hubs: |
3/8" solid steel, fine-blanked and heat treated for additional strength. |
| ANSI/BHMA: |
Certified ANSI/BHMA A156.3 T ype 1 Grade 1 standards |
| Latchbolt: |
Stainless steel pullman style, 3/4" (19mm), deadlocking |
| Dogging: |
Hex key dogging standard on panic; Not available on fire rated (FEH) |
| Handed: |
Non-Handed. |
| Available Trim Options: |
EXIT ONLY - No exterior trim. Nothing outside (no lever, no cylinder).
Trims sold separate.
|
| Factory Warranty: |
5-year Limited Warranty (on exit device only); |
| Mfg Model #: |
7100 |
| MDI Supply Item #: |
YALE-7100-630 |
| Packaged & Sold: |
Individually |
|
|
| |
|
