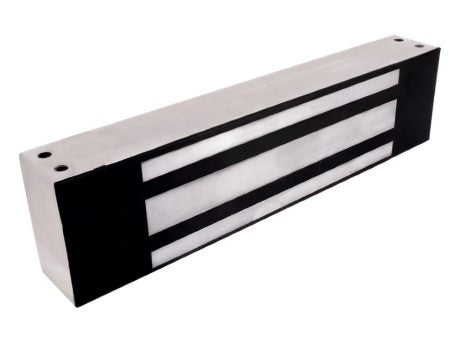

Securitron M82BD Magnalock, 12/24 Dual Voltage
The M82 electromagnetic lock offers unsurpassed magnetic holding strength, durability and ease of maintenance for interior, perimeter and exterior access control applications in high-risk environments. With unsurpassed durability, the M82 will last long after most buildings wear out. Flexible mounting options are available for higher security locations and other environments where extreme forces may be encountered.
M82BD Magnalock Configured Product:
- Mounting: Direct Mount
- Monitoring Option: BondSTAT Monitor & Door Position Switch
- Strike: Standard Strike
M82 Magnalock Highlights:
- Auto Sensing 12/24 Dual Voltage
- Fire-Rated
- Factory Lifetime Warranty
- Grade 1
- Outdoor Rated
- Preload Capable
- Surface Mounted
Product Features:
- Efficient, low power usage
- Automatic dual voltage - no field adjustment required
- Fully sealed electronics - tamper and weather resistant
- All ferrous metal surfaces plated to MIL specification
- Patented instant release circuit - no residual magnetism
- 10 ft [3.05m] of jacketed, stranded conductor cable
- Noise suppression with built-in MOV
- Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
- Factory MagnaCare® lifetime replacement, no-fault, no questions asked warranty
Environmental:
- Maximum Operating Temperature (°F) : 140
- Minimum Operating Temperature (°F) : -40
Ratings:
- Fire Rated : Yes
- Outdoor Rated : Yes
- Preload Capable : Yes
Electrical:
- Voltage: 12/24
- Current 12v DC (mA) : 350
- Current 24v DC (mA) : 200
Certifications:
- ANSI/BHMA A156.23, Grade 1
- ANSI/UL 294 Listed
- CAN/ULC-S533 Listed
- CE Certified
- UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
- CAN/ULC-S104 Listed
- CAL FIRE, 3774-0923:0104
Strength & Durability:
- Grade: Grade 1
- Holding Force (lbs): 1800

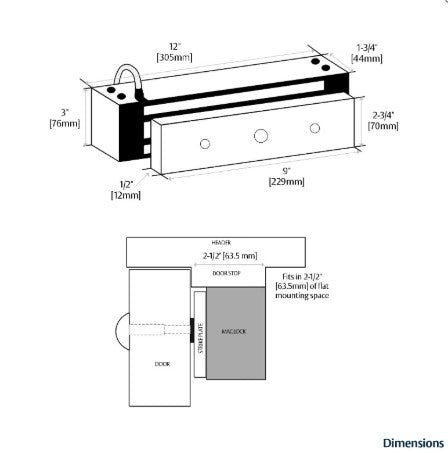

Weights & Dimensions:
- Shipping Weight (lbs) : 16
- Magnet Height (in) : 3"
- Magnet Length (in) : 12"
- Magnet Depth (in) : 2-1/4"
Availability:
- Usually ships in 3-5 business days
