Rockwood 111 Door Pull Handle, 10" Center-To-Center (CTC), 1" Diameter
Rockwood 111 Door Pull Handle, 10" Center-To-Center (CTC), 1" Diameter
SKU: SKU:RKWD-111-US32D
Availability : Usually Ships in 1-2 Business Days
Regular price
$75.00
Regular price
$225.00
Sale price
$75.00
Unit price
per
Shipping calculated at checkout.
Mounting: Standard Thru-Bolt Type
Couldn't load pickup availability
Rockwood 111 Door Pull Handle, 10" Center-To-Center (CTC), 1" Diameter Information

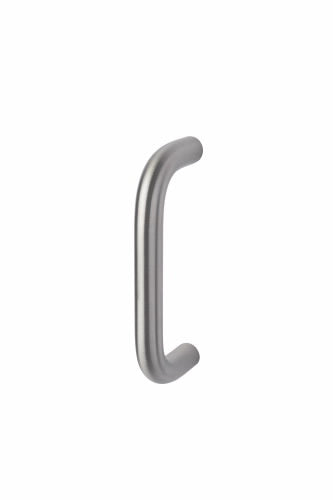

Rockwood 111 Pull Handle - 10" CTC
The Rockwood 111 pull is a straight pull handle with an 10" center-to-center (CTC) location, 1" diameter handle and has a clearance of 2 1/2" and a total projection of 3 1/2". This pull handle meets ANSI A156.6: J401 Standards.
Details and product specs of the Rockwood 111 Straight Pull Handle:
| Door Thickness Required: | 1 3/4" thick door |
| Material: | Aluminum, Brass, Bronze, Stainless Steel |
| Fastener: |
1⁄4-20 x 2-1⁄4 Thru Bolt & Finish Washer (standard 1-3⁄4" door) BTB: Back-To-Back Mounting is available by special order. |
| Handle Diameter: | 1" Diameter |
| CTC (Center-To-Center): | 10" CTC |
| Overall: | 11" |
| Base: | 1" |
| Projection: | 3 1/2" |
| Clearance: | 2 1/2" |
| ANSI A156.6 | J401 |
| Handed: | No |
| Finishes Available: | US32D-Satin Stainless Steel |
| Mfg Model #: | 111 |
| MDI Supply Item #: | RKWD-111-US32D |
| Sold: | Individually |
