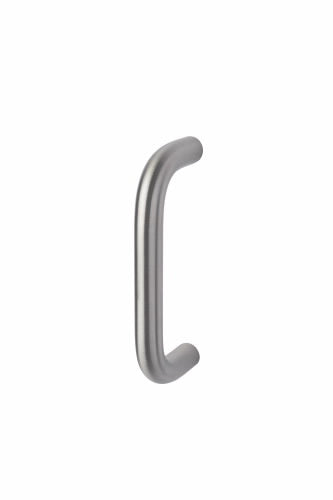

Rockwood 106 Door Pull Handle, 6" Center-To-Center (CTC), 3/4" Diameter
Rockwood 106 Door Pull Handle, 6" Center-To-Center (CTC), 3/4" Diameter
SKU: SKU:RKWD-106-US32D
Availability : Usually Ships in 1-2 Business Days
Regular price
$39.00
Regular price
$117.00
Sale price
$39.00
Unit price
per
Shipping calculated at checkout.
Mounting: Standard Thru-Bolt Type
Couldn't load pickup availability
Rockwood 106 Door Pull Handle, 6" Center-To-Center (CTC), 3/4" Diameter Information
Rockwood 106 Pull Handle - 6" CTC
The Rockwood 106 pull is a straight pull handle with an 6" center-to-center (CTC) location, 3/4" diameter handle and has a clearance of 1 7/8" and a total projects of 2 5/8". This pull handle meets ANSI A156.6: J401 Standards.
Details and product specs of the Rockwood 106 Straight Pull Handle:
| Door Thickness Required: | 1 3/4" thick door |
| Material: | Aluminum, Brass, Bronze, Stainless Steel |
| Fastener: |
1⁄4-20 x 2-1⁄4 Thru Bolt & Finish Washer (standard 1-3⁄4" door) |
| Handle Diameter: | 3/4" Diameter |
| CTC (Center-To-Center): | 6" CTC |
| Overall: | 6 3/4" |
| Base: | 3/4" |
| Projection: | 2 5/8" |
| Clearance: | 1 7/8" |
| ANSI A156.6 | J401 |
| Handed: | No |
| Finishes Available: | US32D-Satin Stainless Steel |
| Mfg Model #: | 106 |
| MDI Supply Item #: | RKWD-106-US32D |
| Sold: | Individually |
