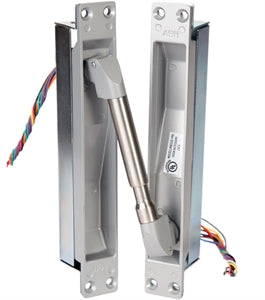

ABH PT1000 Power Transfer Units, Hardwired Wired Connection

ABH PT1000 POWER TRANSFER UNITS

ABH PT200 POWER TRANSFER UNIT

(2) 18 AWG Wires

Max. Rating: 24 VDC, 5A or 120 VAC NEC Class 3

ABH PT1000 POWER TRANSFER UNIT

(10) 24 AWG Wires

Max. Rating: 24 VDC, 1A

• The ABH PT1000 is available with ABH Easy Connect (Suffix EZ) option.  See inset image above.

Click here for the PT1000 and PT200 Series Cut Sheet

Click here for the PT1000 and PT2000 Series Template

DETAILS:

The ABH Power Transfer PT200 & PT1000 provide the means of transferring electrical power from the frame to the door in a secure and discreet manner.

The ABH PT200 & PT1000 unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.

All metal construction including back boxes - NO PLASTIC PARTS.

Ideal for high abuse or heavy traffic situations.

The ABH Power Transfer PT200 & PT1000 us UL/ULC Listed for use on fire doors.

Packaged individually with fasteners for wood, steel, or aluminum doors and frames.

The ABH PT200 & PT1000 is for use on 1 3/4" thick doors.

Not for use with swing-clear hinges, pocket pivots, butt hinges larger than 6�, 1-1/2� offset pivots, or center hung doors.

The ABH PT1000 and PT200 are Proudly Made in the USA.

AVAILABLE FINISH:

US28 - Brushed Aluminum

S5 - Powder Coated Dark Bronze to match US10B Finish

CROSS REFERENCE:

ABH PT200.....Von Duprin EPT2

ABH PT1000.....Von Duprin EPT10

ABH PT1000EZ.....N/A
