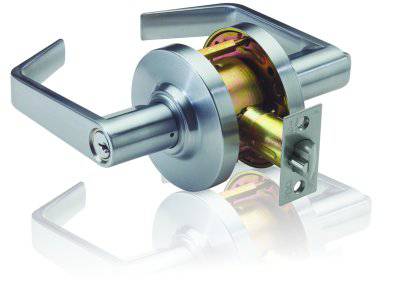

PDQ SD116 Entrance Cylindrical Lever Lock, Commercial Grade 2, Conventional C-Keyway, 2 3/4-inch Backset

PDQ SD116 Entrance Cylindrical Lever Lock, Commercial Grade 2, Conventional C-Keyway, 2 3/4-inch Backset

SKU: SKU:PDQ-SD116PHL626-KD

Regular price $65.00
Regular price $179.00 Sale price $65.00
Sale Sold out
Shipping calculated at checkout.

Product Options:

Function: 116-Entrance ?
View full details

PDQ SD116 series grade 2 lever lock - entrance function

Click here to download product template

Discover the superior features of the SD Series Grade 2 Cylindrical Lockset.

  • Crafted from heavy-gauge cold rolled steel, this lock offers unparalleled durability and corrosion resistance with its dichromate finish.
  • Its removable thru-bolts ensure easy installation and added security.
  • Choose from 5 lever styles: Philadelphia, Boston, Miami, Memphis, Orlando
  • Choose from 4 distinct finishes: 605(US3), 613(US10B), 622(US19), 626(US26D)
  • Some lever styles and finishes are special order.  Please contact MDI for a special price quote.

Elevate security and aesthetics with the SD Series Cylindrical Lockset, designed for lasting performance and peace of mind.

The SD Series Grade 2 Cylindrical Lock boasts impressive certifications for safety and compliance.

  • It is UL/CUL 10C listed for use on 3-hour fire doors, suitable for single doors measuring up to 4’ x 8’
  • This lock is certified to ANSI/BHMA A156.2 Grade 2 standards, ensuring exceptional performance and durability
  • The SD Series meets ADA (Americans with Disabilities Act) requirements and complies with ICC/ANSI 117.1 standards for Accessible and Usable Buildings

Choose the SD Series Cylindrical Lock for peace of mind, knowing it not only delivers superior security but also adheres to stringent safety and accessibility guidelines.


PDQ SD116 Features:
FOR DOORS: 1-3/8" to 1-3/4" thick.
DOOR PREP: Fits standard 161 door prep (2 1/8" hole x 2 3/4" backset). Through-door through-bolting. Through-bolts removable if desired.
BACKSET: 2-3/4" is standard.
FRONT: 2-1/4" x 1-1/8" for 2-3/4" backset. Stainless steel or wrought brass.
STRIKE: 4-7/8" x 1-1/4" (ASA).
LATCHBOLT: 1/2" throw. Adjustable front for flat or beveled doors.
HAND: Non-handed.
TRIM: Zinc diecast levers/wrought brass rose.  Philadelphia (PHL) - standard.
KEYS: Two change keys per lock.
KEYWAYS: C-Keyway is standard. SD series is also available in keyways of other manufacturers (additional lead-time applies).  Contact MDI Supply at: 888.634.3667 for more information.
CYLINDER: Brass 6-pin insert cylinder.

* KEYING:
1.  KD (Keyed-Different is standard): Usually ships in one business day);
2.  KA (Keyed-Alike): Usually ships in 2-3 business days;
3.  KD x MK (Keyed Different x Master-Keyed): Usually ships in five-seven working days.

FINISH: 626 (US26D), 605 (US3).

CERTIFICATIONS: Certified to ANSI/BHMA A156.2-2003, Series 4000, Grade 2 /Meets all applicable accessibility requirements of the Americans with Disabilities Act (ADA)/U.L., U.L.C. listed for “A” label (3 hour) single swing doors (4' x 8') / UL 10C / UBC 7-2 (1997) positive pressure, for single doors up to 4’0” x 8’0”.

COUNTRY OF ORIGIN: Manufactured in the Republic of South Korea, a country that has signed a Trade Agreements Act with the U.S.A. and is identified as a Designated Country; thus, waiving the Buy American Act.

FACTORY WARRANTY: Five-year Limited Warranty.
