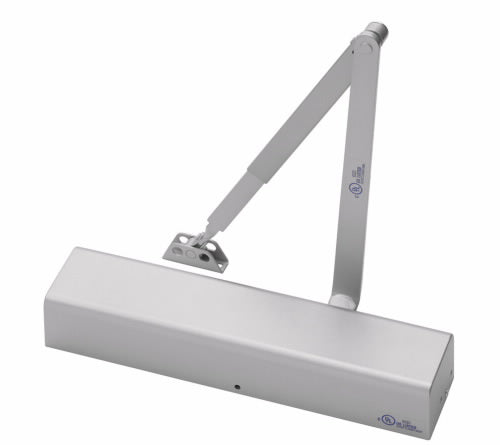

Yale 2701 Architectural Door Closer, Adjustable Size 1-6, Tri-Packed
The Yale 2700 series architectural door closers are ideal for commercial applications where ease of use, installation and aesthetics are required at an economical price. The 2700 series closer features rugged construction, adjustments for backcheck, closing and latching speed and rack & pinion operation.
Details and product specs of the Yale 2701 Grade 1 surface door closer:
| Warranty: |
Factory 10-Year Limited Warranty. |
| Features: |
Adjustable spring sizes 1-6 (standard)
Non-handed (standard)
Aluminum body

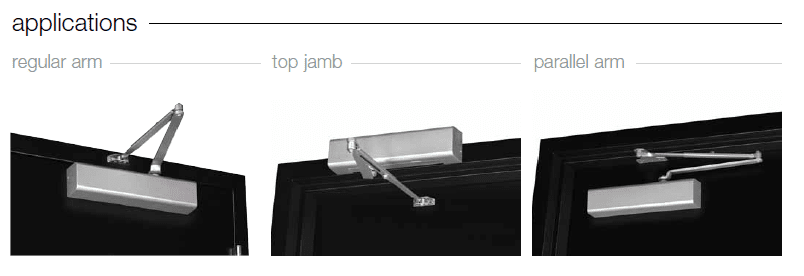

Tri-packed: regular, parallel or top jamb mounting (standard)
Full plastic cover included
Rack & Pinion Design
Adjustments for backcheck, closing and latching speed
Sleeve nuts furnished standard with all 2700 series closers
For use on doors 1 3/4" thick and 1 3/8" thick.
|
| Retrofit: |
Great for retrofit applications: 3/4" by 9-1/16" closer dimensions easily retrofit to a common footprint |
| Available Finishes: |
IN STOCK & TYPICALLY SHIPS WITHIN 2-3 BUSINESS DAYS
689 - Aluminum Painted
690 - Dark Bronze Painted
BSP - Black Powder Coat |
| Certifications: |
Certified for ANSI/BHMA A156.4 Grade 1.
UL and cUL listed for use on fire doors. Includes compliance to UL10C.
Meets requirements for American with Disabilitiues Act (ADA) and ANSI/BHMA A117.1. |
| Applications: |
Ideal for a variety of facilities: Well-suited to commercial, aluminum storefront, and hospitality applications |
| Mfg Model #: |
2701-689 |
| MDI Supply Item #: |
Yale-2701-689 (Aluminum)
|
| Packaged & Sold: |
Individually |
