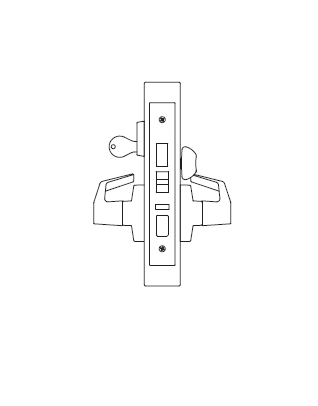

PDQ MR154 Apartment Entry Function w/ Deadbolt Mortise Lock, C-Keyway, Lever x SJ-Rose Trim, US32D/630-Satin Stainless Steel

PDQ MR154 Series Apartment Entry w/ Deadbolt Function  Mortise Lock, Lever x Rose Trim x Grade 1, Includes Mortise Cylinder x C-Keyway

Explore superior security and reliability with our MR Series Mortise Locks. Crafted for endurance, these locks have been cycle tested to exceed BHMA standards by over 11 times, ensuring exceptional durability even in high-traffic environments. Featuring a flexible single cam design across all locking functions, these mortise locks are ideal for a wide range of applications.

The MR Series combines premium quality with versatility, making it a top choice for security solutions. Each lock is backed by a limited lifetime warranty for your peace of mind. Assembled with care in Lancaster, PA, these mortise locks embody craftsmanship and durability you can trust.

Classroom Function:  MR154
• ANSI -----
• Latchbolt operated by lever from either side
• Toggle locks/unlocks outside lever
• Key outside retracts latchbolt
• Key outside extends/retracts deadbolt
• Thumbturn inside extends/retracts deadbolt
• Inside lever simultaneously retracts latchbolt and deadbolt
• Auxiliary latch deadlocks latchbolt
• Projecting then retracting the deadbolt releases the toggle

Typical Applications:

• Assisted Living, Multi-Family, Government Facilities, Offices, Healthcare, Public Buildings, Hospitality, Retail, Houses of Worship, Higher Education, Industrial, K-12 Education.

Features Benefits of the PDQ MR Series Mortise Lock:

• Crafted from 12-gauge cold-rolled steel, these locksets offer unmatched durability and security
• The MR mortise lock is available in 10 trim styles: Philadelphia, Boston, Miami, Chicago, Dallas, Houston, Los Angeles, Memphis, Orlando, Ball Knob.  Some styles by special order.  Please contact MDI for a special order price quote and availability.
• 8 different finishes are available:
  • 630(US32D).*
  • 605(US3), 606(US4), 612(US10), 613(US10B), 622(US19), 626(US26D), 629(US32)
• Keyed function mortise locks from PDQ come standard with a conventional mortise cylinder with C-keyway and are supplied with 2-keys per lock.  If multiple locks are ordered the cylinders are shipped as "keyed random."  Special keying is available by special order.  Please contact MDI for a special order price quote.
• The MR mortise lock is field revsersibvle when it comes to handing.  PDQ’s innovative handing design allows for quick and easy changing in the field.
• Each mortise door lock undergoes rigorous testing, surpassing ANSI/BHMA standards with over 11 million cycles
• All MR mortise lock levers are ADA compliant. Knobs are not ADA compliant.
• Enjoy the convenience of field reversibility for flexible installation options
• Our innovative design is protected by US Patent #5,813,255, ensuring you receive a lockset that's both reliable and unique

• Packaging: Individually boxes, 1 lock per box.

* 630/US32D-Satin Stainless Steel is standard.  Please contact MDI for a special order price quote for other finishes.

Certifications of the PDQ MR Series Mortise Lock:

• UL/CUL 10C listed for 3-hour fire doors, these locks are ideal for single doors up to 4’ x 8’, meeting stringent safety standards
• Certified to ANSI/BHMA 156.13 Operational Grade 1 and Security Grade 1, our mortise door locksets guarantee superior performance and durability
• Approved for use in Florida's High Velocity Hurricane Zone (HVHZ), making them suitable for high-risk environments
• Complies with ADA and ICC/ANSI 117.1 accessibility standards, ensuring inclusivity and usability in all buildings
• The wide escutcheon trim meets Unified Facilities Guide Specification 08 71 0, offering versatile design options


Warranty & Country of Origin:

• Factory Limited Lifetime Warranty
• Proudly assembled in the U.S.A. using a blend of domestic and foreign materials. Our products meet the Buy American Act requirements as Commercial Off-The-Shelf (COTS) items manufactured in the United States. Trust MR Locks for quality and compliance with domestic sourcing standards.
