NGP 425E Aluminum Saddle Threshold 5" x 1/2"
NGP 425E Aluminum Saddle Threshold 5" x 1/2"
SKU: SKU:NGP-425E-36
Availability : Usually Ships in 5-7 Business Days
Regular price
$39.60
Regular price
$75.90
Sale price
$39.60
Unit price
/
per
Shipping calculated at checkout.
Product Options:
Size: 5" Deep x 1/2" Height
Couldn't load pickup availability
Share


NGP 425E Aluminum Saddle Threshold 5" x 1/2" Information

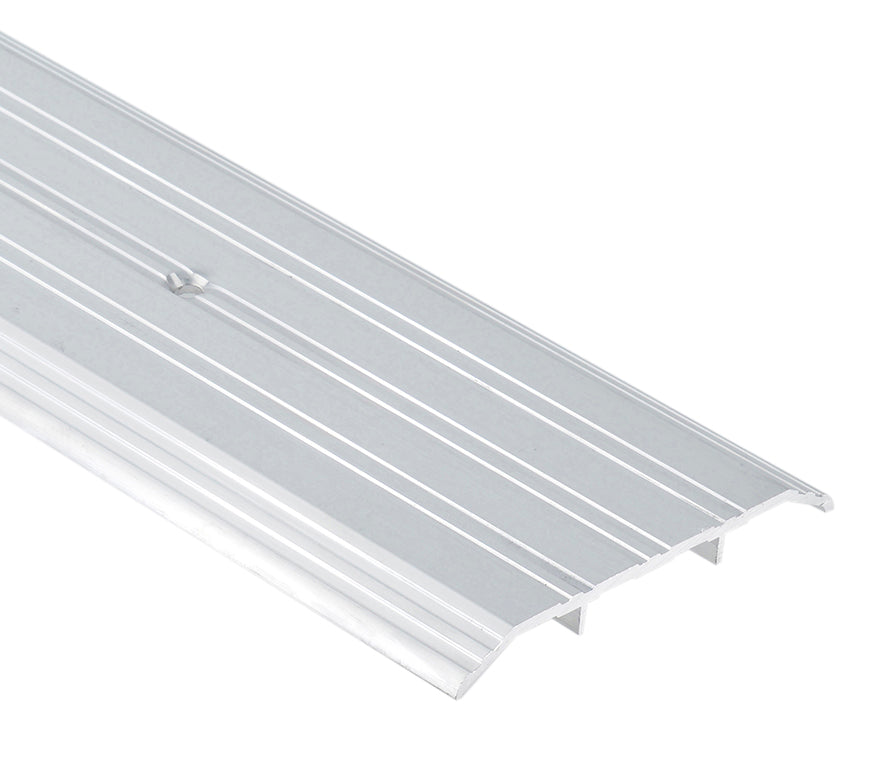

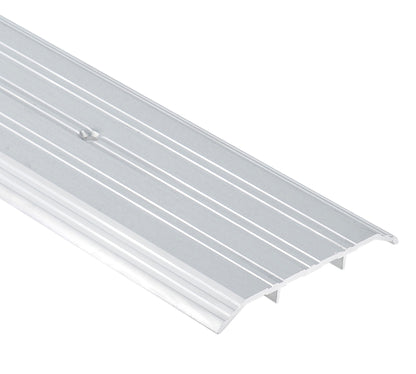

NGP 425E Aluminum Saddle Threshold 5" x 1/2"
National Guard Products 425E saddle threshold
Featured & Specifications of the NGP 425E Saddle Threshold:
- Base Material: Aluminum Alloy 6063, T5 Temper
- Fasteners: #10 x 1 1/2" FH Zinc Plated Wood Screws Included.
- Top: Fluted
- Width: 5"
- Profile Height: 1/2"
- Typical Wall Thickness: .120"
- Seal: Silicone bumper seal is black
-
Finish:
- Mill Aluminum
- Dark Bronze Aluminum
-
Optional: SIA Slip-Resistant Finish Recommended in Moisture Prone Areas
- Contact MDI for special price quote on SIA finish.
Certifications:
- ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Availability: Usually Ships in 5-7 Business Days
