Design Hardware Z-84 Classroom Function Grade 1 Lock Information
Design Hardware Grade 1 Heavy Duty Z84 Classroom Lever Lock
Grade 1 commercial, heavy duty entry lever lock, Z-84
Design Hardware Z-Series Classroom function lockset is a grade 1 heavy duty lever lock.
Classroom function: Deadlocking latch bolt operated by lever from either side except when outside lever is locked from outside with a key. When outside lever is locked latchbolt is operated by key in outside lever or by rotating inside lever. Inside lever is always unlocked. For buildings or openings with high traffic use.
Click here for a cut sheet on the Design Hardware Z-Series Grade 1 Lockset.
Details and product specs of the Design Hardware Z-Series Lever Lock:
Base Material: |
Steel,
Zinc dichromated chassis for Corrosion Resistance |
ANSI |
Meets
& Exceeds ANSI - A156.2, Series 4000, Grade 1 Standards |
UL Listed: |
UL
Listed for "A" Label 3 Hour Fire Doors |
ADA: |
Meets
ADA and ANSI A117.1 accessibility codes |
Levers: |
5"
Solid zinc die cast levers, 3 1/2" wrought brass roses |
Clutch: |
Clutching
levers standard for Vandal resistance on locking functions |
Cycle Testing: |
Tested
to over 2 Million Cycles |
Backset: |
2
3/4" backset with 1 1/8" x 2 1/4" latch face |
Latch Face: |
1"
x 2 1/4" latch face both with self adjusting front for square or
beveled edge doors |
Lever Springs: |
Independent
lever return springs to prevent lever sag |
Strike Plate: |
4 7/8" x 1 1/4" ASA standard. |
Door Thickness: |
Factory
Set for 1 3/4" thick doors - can be adjusted to fit 1 3/8" to
2" thick doors |
Door Prep: |
Door
Prep: ANSI A115.2 - 2 1/8" cross bore with (2) 5/16" Thru bolt
holes |
Latch Bolt: |
Stainless
Steel Latch bolt with 1/2" projection, Deadlocking on keyed
functions |
Cylinder: |
6
Pin Brass, C Keyway, with 2 Keys per lock (standard);
Prepared
for SFIC (Small format IC core) less core. Permanent core by
others. |

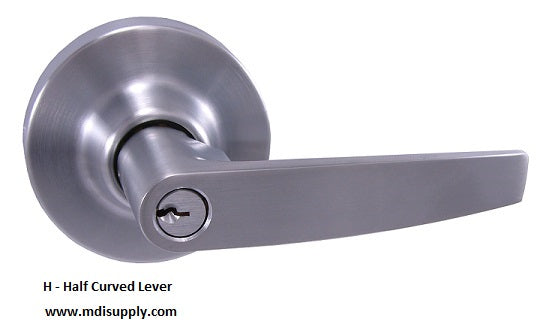

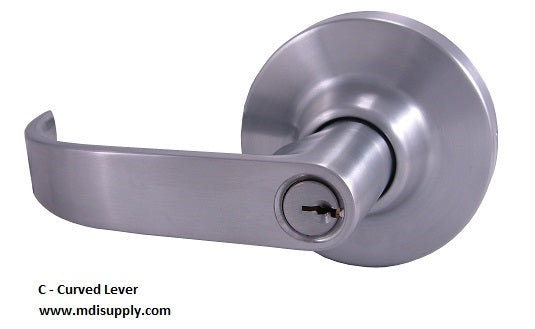

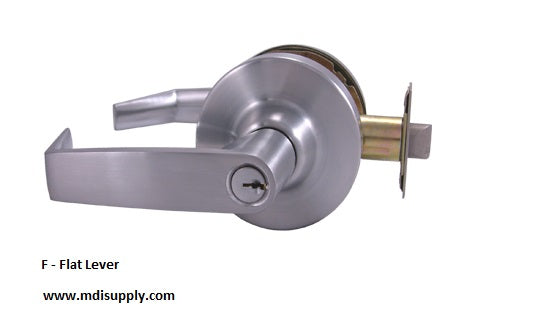

Lever Styles: |
Flat,
Curved & Half Curved |
Handing: |
Non-Handed
- Completely reversible |
Keys: | Two keys included per lock. |
Finish: | US26D/626 = Satin/Brushed Chrome |
Fasteners: |
Combination
screws for wood or metal doors & frames |
Warranty: |
Factory
Limited Lifetime Warranty |
Mfg Model #: | Z-84 |
MDI Supply Item #: | DH-Z-84-CLASS |
