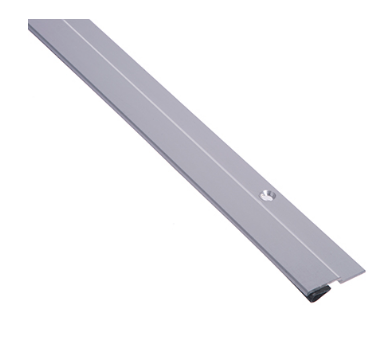

• NGP 178SA Overlapping Astragal with Silicone Seal, 84-inch, Clear Anodized Aluminum main image
  • Image 2
1 3

NGP 178SA Overlapping Offset Astragal with Silicone Seal, 84-inch, Clear Anodized Aluminum

NGP 178SA Overlapping Offset Astragal with Silicone Seal, 84-inch, Clear Anodized Aluminum

NGP - National Guard Products

SKU: NGP-178SA-84

$65.00
$195.00 $65.00
Sale Sold out
Shipping calculated at checkout.
View full details

NGP 178SA Overlapping Offset Astragal with Silicone Seal, 84-inch, Clear Anodized Aluminum Information

NGP 178SA Overlapping Astragal with Silicone Seal, Anodized Aluminum
Anodized Aluminum Overlapping Astragal with Silicone Seal

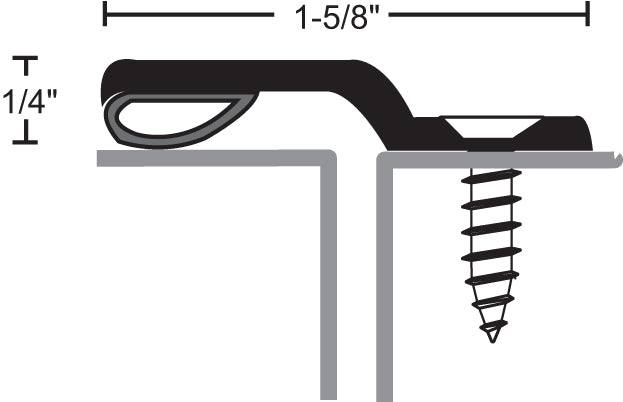

Details and product specs of the National Guard Products 178SA Overlapping Astragal:

Material: Anodized Aluminum
Width: 1 5/8"
Profile Height: 1/4"
Features:

Aluminum alloy 6063;
T5 Temper;
Flame resistant;
Mositure resistant;
Excelletnt resistance to ozone, UV and aging;

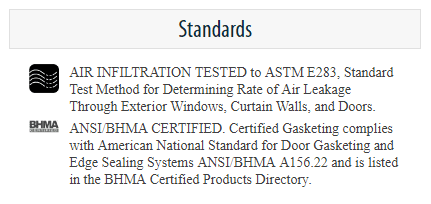

BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration;
Fasteners: supplied with #10 x 3/4" SMS
Finish Available:

A - Clear Anodized Aluminum with Black Silicone Gasket
Available Sizes: 84-inch is standard.  Other sizes availabel by special order.  Please contact MDI Supply at 888.634.3667 for special orders.
Mfg Model #:

178SA
UPC Code:
 MDI Supply Item #: NGP-178SA-84
 Packaged & Sold: Individually



NGP 178SA Overlapping Astragal with Silicone Seal, Anodized Aluminum
Anodized Aluminum Overlapping Astragal with Silicone Seal

Click here for downloads for teh NGP 178SA Overlapping Weather-stripped Astargal:

Cut Sheet: Click here for the 178SA Cut Sheet
Installation Instructions: Click here for Installation Instructions for the NGP 178SA
