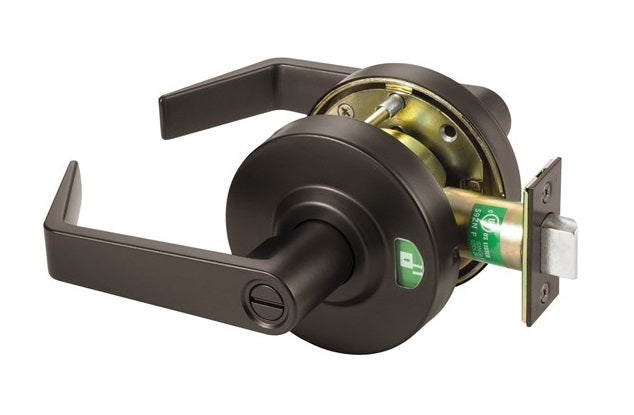

Yale YPL02 Cylindrical Privacy Indicator Lever Lock x 613E-Dark Oxidized Satin Bronze Equivalent Finish
Yale's YPL Series cylindrical lock with status indicators provides enhanced privacy at a glance with it's bold green and red status symbols. This cylindrical lock is the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.
- Heavy Duty Grade 1 Certified
- Ideal for hi-use bathrooms
- Patent Pending Design
Details and product specs of the Yale YPL Series Privacy Indicator Lockset:

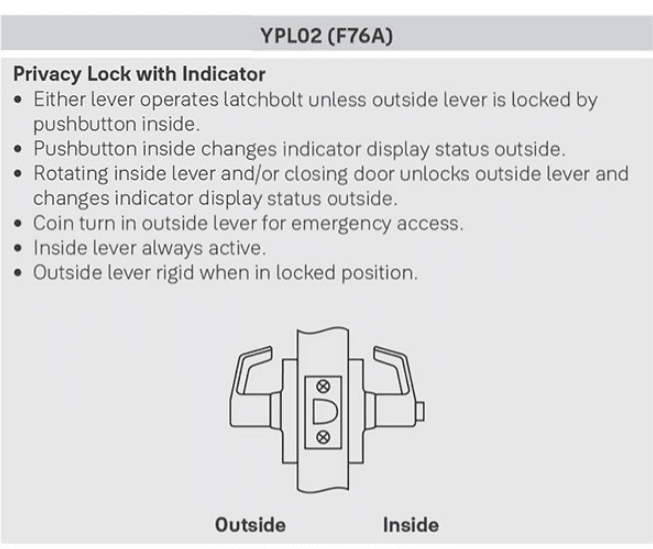

| Function: |
Privacy (F76A) Indicator function with automatic unlock when rotating inside lever or closing the door. |

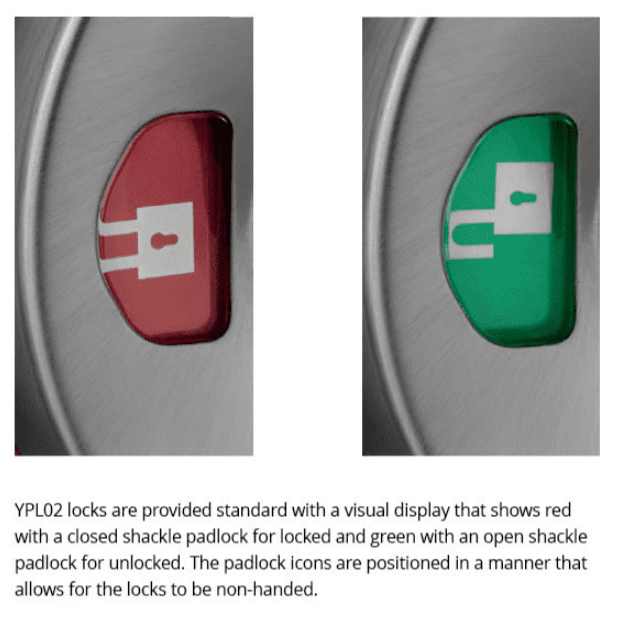

| Indicator: |
With bright red or green window display indicator with padlock icon |
| Emergency Access: |
Coin turn (or flat head screwdriver) for emergency access |
| Door Prep: |
ANSI/BHMA A156.115 2 1/8" hole x 2 3/4" backset w/ thru-bolts for robust operation
|
| Certified / Listing: |
ANSI/BHMA Grade 1 (2 3/4" backset)
UL/ULc listed for 3 hour fire doors
ADA Comppliant
|
| Door Thickness: |
1 3/4" (44mm) standard. Lock can accommodate 1 3/8" (35mm) thick doors with a special order adapter kit, speciify APL-2). Contact MDI Supply for more details. |
| Backset: |
2 3/4" (70mm) is standard.
2 3/8" (60mm) is available by special order. May have extended lead-time.
Contact MDI Supply for special order items. |
| Latchbolt: |
2 3/4" (70mm) backset x 1 1/8" (29mm) square corner front with 1/2" (13mm) throw standard. 2 3/8" (60mm) x 1" (25mm) is available by special order.
Contact MDI Supply. |
| Strike Plate: |
ANSI strike included:
4 7/8" x 1 1/4" x 1 1/4" (124mm x 32mm x 32mm) lip to center. |
| Handing: |
Non-handed. Works on both RH (Right Hand) and LH (Left Hand) doors. |
| Ideal Locations: |
Office buildings, Restaurants, Convenience Stores, Gas Stations, Airports, Places of Worship, Schools, Hospitals. |

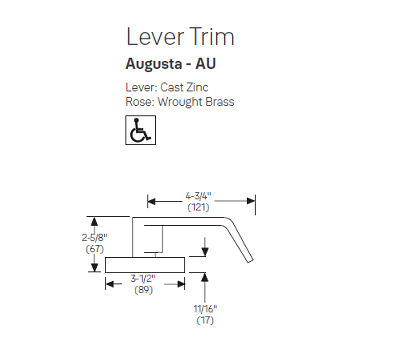

| Lever Design: |
AU-Augusta Lever Style |

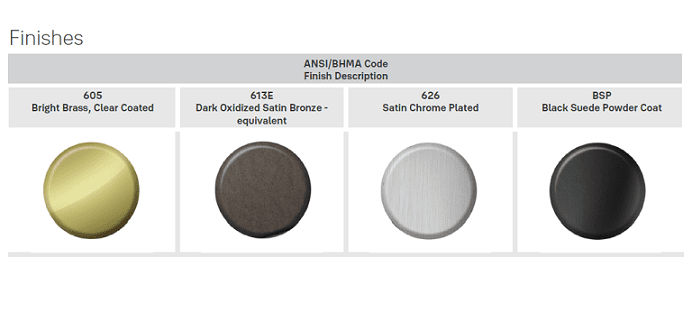

| Available Finishes: |
626 (US26D)-Satin Chrome
BSP-Black Suede Powder Coat
605 (US3)-Polished Brass
613E (US10BE)-Dark Oxidized Satiin Bronze Equivalent |
| Warranty: |
3-year mechanical factory warranty |
| Mfg Model #: |
YPL02 |
| MDI Supply Item #: |
YALE-YPL02-613E |
| Packaged & Sold: |
Individually |
| |
|
| |
|
