Yale D292 Deadbolt with Occupancy Indicator x BSP-Black Suede Powder Coat Finish with Indicator on Both Sides, 2 3/4-inch Backset

Yale D292 Deadbolt with Occupancy Indicator x BSP-Black Suede Powder Coat Finish with Indicator on Both Sides, 2 3/4-inch Backset

Accentra Locks & Hardware (formerly Yale)

SKU: YALE-D292-BSP

Availability : Usually ships the next business day

$49.00
$145.00 $49.00
Sale Sold out
Shipping calculated at checkout.
View full details

Yale D292 Deadbolt with Occupancy Indicator x BSP-Black Suede Powder Coat Finish with Indicator on Both Sides, 2 3/4-inch Backset Information

Yale D292 Deadbolt with Occupancy Indicator on Both Sides
Yale® D series deadbolts are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required. TheD100 series is certified to ANSI/BHMA Grade 1 standards and the D200 series is certified to ANSI/BHMA Grade 2 standards. Both series are UL fire-listed for all functions ensuring reliability and peace of mind.

Common uses for an indicator deadbolt:
Bathrooms, Quiet Rooms, Nursing Rooms

Details and product specs of the Yale D292 Deadbolt with Occupancy Indicator:

Function: D292: Occupancy Indicator x Thumbturn
Deadbolt operated by thumbturn inside, emergency override key outside.

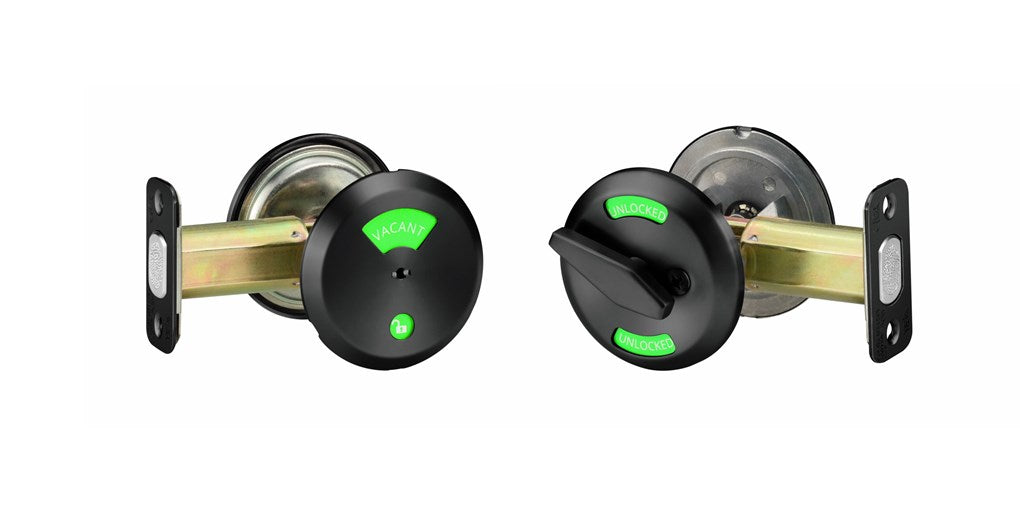

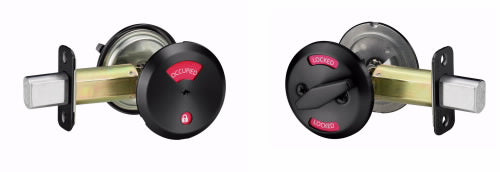

Outside indicator displays "Occupied" when deadbolt thrown or "Vacant" when deadbolt retracted.

Inside indicator displays "Locked" when deadbolt thrown or "Unlocked" when deadbolt retracted.
Deadbolt:
1" (25mm) throw, solid steel deadbolt with hardened, free spinning,
steel pin insert.
Fronts:
2-1/4" x 1" (57mm x 25mm) front and 1-1/8" (29mm) latch front
filler supplied standard with each D series deadbolt.
Strikes:
2-3/4" x 1-1/8" (70mm x 29mm) metal and wood door strikes with
strike reinforcement supplied standard.
Finish Available:

626/US26D - Satin Chrome
613E/US10BE -  Dark Oxidized Satin Bronze - equivalent
BSP - Black Suede Powder Coat
Backset: 2 3/4" backset
Mfg Model #:

D292-BSP
MDI Supply #: YALE-D292-BSP
UPC #: N/A
Packaged & Sold: Individually
