Yale AU4628LN Communicating (One-Sided Lever) Passage Lever Set, Black, Grade 2

Yale AU4628LN Communicating (One-Sided Lever) Passage Lever Set, Black, Grade 2

SKU: SKU:YALE-AU4628LN-BSP

Regular price $65.00
Regular price $195.00 Sale price $65.00
Sale Sold out
Shipping calculated at checkout.
View full details

Yale 4628LN Communicating Passage Lever Set, Black Finish
Yale® 4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.

  • Versatile: Field reversible handing
  • Economical: Priced affordably to suit projects of all budgets
  • Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and reliability
Product Details & Specs:

Brand Yale Locks

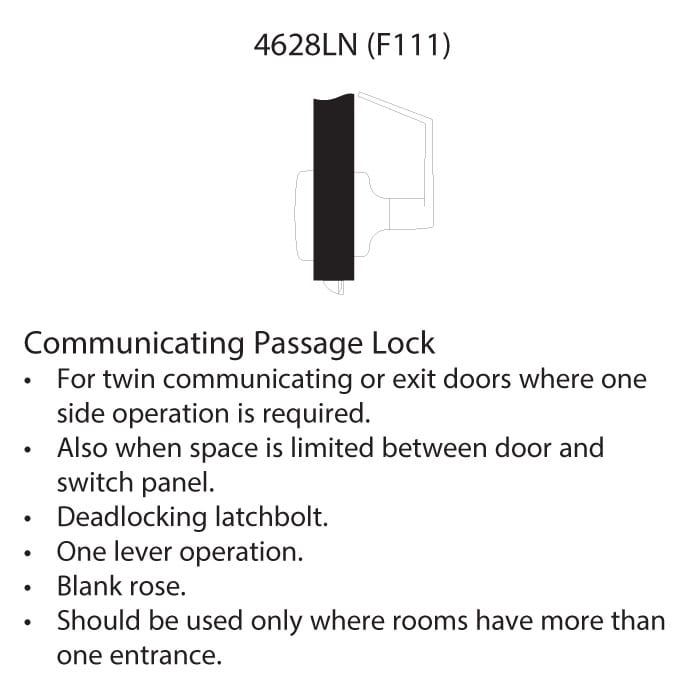

Lock Function Communicating Passage...should only be used where rooms have more than one entrance.
NOTE: Lever is on one side and a round "blank plate" is on the other.
Finishes BSP – Black Suede Powder Coat - Standard
613E - US10BE-Dark Oxidized Satin Bronze equivalent (Call Office)
626 - US26D-Satin Chrome (Call Office)
ANSI/BHMA Standard Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, Grade 2
Windstorm 4600LN Certified (refer to local codes)
Backset 2-3/4" standard
Latchbolt 1/2" stainless steel throw
Strike 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation
Cylinder Keyed Functions Only: Brass, 6-pin, keyed-random cylinder with 2-keys furnished standard, SFIC available.
Handing Non-Handed
Lever Design AU (Augusta)
Door Thickness Adjustable from 1-3/8" to 1-3/4"
Fire Rating UL-cUL fire rated up to 3 hours
ADA Compliance Meets ADA requirements – A117.1 Accessibility Code
Usage Standard Commercial Application, Medium Duty
Latch 1/2" throw – 1-1/8" x 2-1/4" face
Warranty 3-Year Factory Mechanical Warranty
Packaged & Sold Indvidually

Yale 4600LN Series Lever Set Downloads
Yale® 4600LN cylindrical locks are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required at an economical price. The 4600LN Series is certified to ANSI/BHMA Grade 2 standards and is UL fire-listed for all functions, ensuring reliability and peace of mind.

  • Versatile: Field reversible handing
  • Economical: Priced affordably to suit projects of all budgets
  • Strong & Reliable: ANSI/BHMA Grade 2 certified for long life and reliability
Downloads available for the Yale 4600LN Lever Set:

Installation Instructions Click here to download installation instructions
Catalog Click here to download the 4600LN catalog
