Yale 8822FL Dormitory Mortise Lock (F13), AUCN Lever Trim x Escutcheon, US26D-Satin Chrome, For 1 3/4-inch Thick Doors

The lock model comes standard with AUCN lever design, which is standard with an Excutcheon plate design.  The AU lever handle is cast and the CN Escutcheon is also cast.

Accentra 8822FL Dormitory Function Mortise Lock (F13) x Escutcheon
ASSA ABLOY ACCENTRA™ 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock ANSI/BHMA Grade 1 certification for long life and durability.

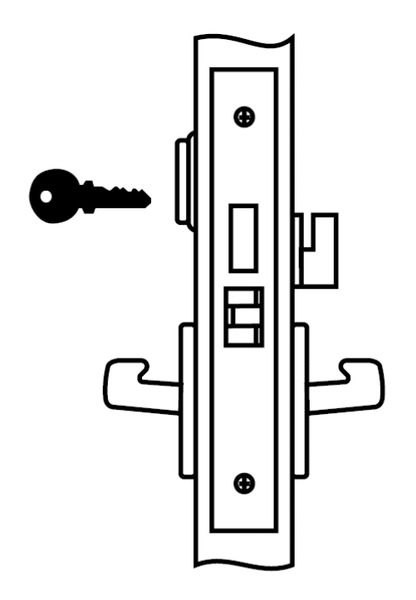

Dormitory/Exit Function:  Latchbolt retracted by knob/lever either side.  Deadbolt operated by key outside and thumb-turn inside.  When the deadbolt is projected, outside knob/lever is automatically locked.  Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever.

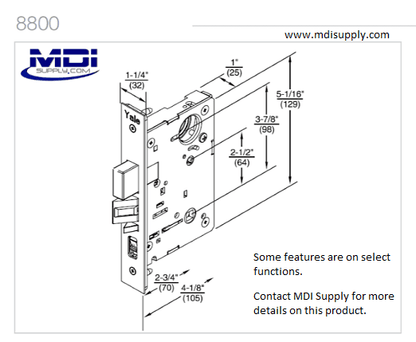

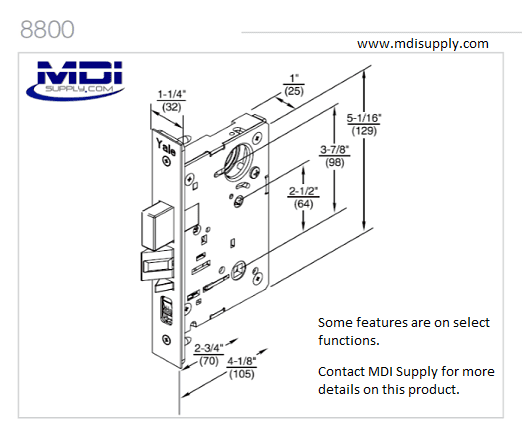

Product specs of the Accentra 8822FL Mortise Lock:

• ANSI/BHMA Code: A156.13
• ANSI/BHMA Series: Series 1000
• Backset Depth (Standard): 2 3/4"
• Cylinder: Optional
• Door Thickness (Standard): 1 3/4"
• Handing: Field Reversible
• Latchbolt Throw: 3/4"
• Maximum Backset: 2 3/4"
• Minimum Backset: 2 3/4"
• Maximum Door Thickness: 3 1/4"
• Minimum Door Thickness: 1 3/4"
• Number of Keys: 2 (when cylinder is ordered)
• Strike Type: Curved Lip
• UL Listed: Yes
• ULC Listed: Yes
• UL Cycle above and beyond test completed at 12.3 Million
  Cycles. Verification ID: V572228
• Warranty: 10-year (Mechanical)

Certifications:

• Environmental Product Declaration (EPD)
• CAL FIRE, 3775-0257:0113
• UL-cUL Fire-Rated Up to 3 Hours
• ANSI/BHMA A117.1
• ANSI/BHMA A156.13, Series 1000, Operational and Security Grade 1

• Buy American Act*

  *Domestic Sourcing regulations vary greatly within Federal, state and local government agencies and therefore certain restrictions may apply. Please contact BAACompliance.Americas@assaabloy.com for additional information.
